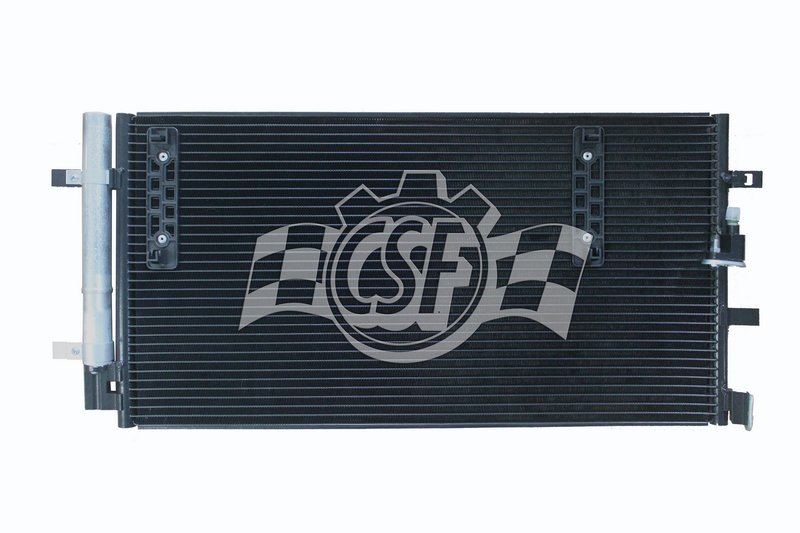

CSF 10684 A/C Condenser

Overview of CSF A/C Condenser 10684 for Audi Vehicles

The CSF A/C Condenser part number 10684 is designed specifically for select Audi models including the A4, A4 Quattro, A5, Q5, S4, and S5. This parallel flow condenser offers reliable cooling performance and precise fitment to maintain your vehicle's HVAC system efficiency.

• Parallel flow construction for efficient heat dissipation
• Core thickness of 5/8 inch for optimal airflow
• Core dimensions: 13 4/7 inches width by 25 2/3 inches length
• Box dimensions: 35 1/4 inches length, 16 3/4 inches width, 4 1/3 inches height
• Lightweight design at 8 lbs for easier handling
• Block fitting inlet and outlet tubes for secure connections
• Non-hazardous material compliant for safe installation

Detailed Product Description

The CSF A/C Condenser 10684 features a parallel flow design that enhances heat exchange efficiency by allowing refrigerant to flow through multiple parallel channels. This design improves cooling capacity while reducing pressure drop. The core thickness of 5/8 inch balances durability with effective airflow, ensuring consistent performance under various driving conditions. With core dimensions measuring approximately 13.57 inches wide and 25.67 inches long, this condenser fits precisely within the HVAC system of compatible Audi models. The block fitting inlet and outlet tubes provide secure and leak-resistant connections, essential for maintaining system integrity.

Compatible Audi Models and Common Applications

This A/C condenser is compatible with the following Audi vehicles:

• Audi A4 and A4 Quattro
• Audi A5
• Audi Q5
• Audi S4
• Audi S5

It is designed to replace factory condensers that exhibit issues such as reduced cooling efficiency or physical damage.

Common Issues Addressed by CSF A/C Condenser 10684

• Reduced air conditioning performance due to clogged or damaged condenser
• Leaks in the condenser causing refrigerant loss
• Overheating of the HVAC system during operation
• Physical damage from road debris or corrosion
• Inconsistent cabin temperature control

Installation Notes and Tips

When installing the CSF A/C Condenser 10684, ensure the system is fully evacuated and free of contaminants before installation. Verify that the block fitting inlet and outlet tubes align correctly with the vehicle’s HVAC lines to prevent leaks. It is recommended to replace the receiver/drier and inspect all related components during installation to maintain system integrity. Proper torque specifications should be followed to avoid damage to the condenser or fittings.

Quality Assurance and Warranty

CSF manufactures this A/C condenser to meet or exceed OEM specifications for fit, form, and function. The part is constructed from corrosion-resistant materials and undergoes rigorous quality control testing. While specific warranty details may vary, CSF typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
