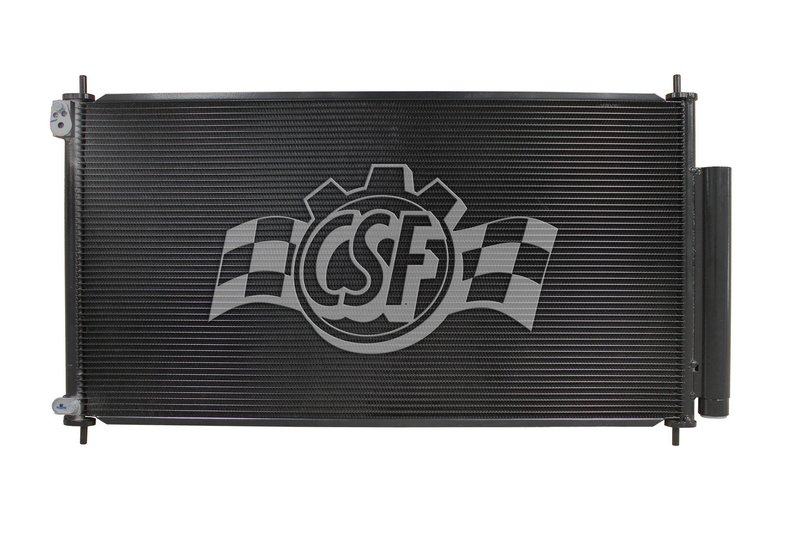

CSF 10712 A/C Condenser

Overview of CSF A/C Condenser for Honda Civic

The CSF A/C Condenser part number 10712 is designed specifically for Honda Civic models, providing reliable cooling performance. Featuring a parallel flow construction, this condenser ensures efficient heat exchange to maintain optimal air conditioning function.

• Parallel flow construction for improved heat dissipation
• Core thickness of 5/8 inch for durability and performance
• Core dimensions: 15 1/6 inches width by 26 1/2 inches length
• Compact box size: 33 inches length, 20 6/7 inches width, and 4 inches height
• Lightweight design at approximately 8.29 lbs for easier installation
• Block fitting inlet and outlet tubes for secure connections
• Non-hazardous material compliant for safe handling

Detailed Product Description

The CSF 10712 A/C Condenser is engineered with a parallel flow design, which enhances the efficiency of refrigerant cooling by allowing multiple channels for airflow. This design reduces pressure drop and improves overall system performance in Honda Civic vehicles. The core thickness of 5/8 inch balances durability with effective heat transfer, while the core width and length (15 1/6 inches by 26 1/2 inches) provide ample surface area for cooling. The condenser’s inlet and outlet tubes utilize block fittings, ensuring a secure and leak-resistant connection to the vehicle’s A/C system.

Compatible Applications and Common Issues Addressed

• Compatible with Honda Civic models requiring A/C condenser replacement
• Resolves reduced cooling efficiency due to clogged or damaged condensers
• Addresses refrigerant leaks caused by corrosion or physical damage
• Eliminates overheating of the A/C system from insufficient heat dissipation
• Prevents compressor strain by maintaining proper refrigerant flow

Installation Notes and Tips

When installing the CSF 10712 A/C Condenser on a Honda Civic, ensure the system is fully evacuated and free of contaminants before installation. Verify that the block fitting inlet and outlet tubes align correctly with the vehicle’s A/C lines to avoid leaks. It is recommended to replace the receiver/drier or accumulator and flush the system to maintain optimal performance. Proper torque specifications should be followed to prevent damage to the condenser or fittings.

Quality Assurance and Warranty

CSF manufactures the 10712 A/C Condenser to meet or exceed OEM standards for fit, form, and function. The product is constructed from corrosion-resistant materials and undergoes rigorous quality control testing. This condenser is free of hazardous materials, ensuring safe handling and installation. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
