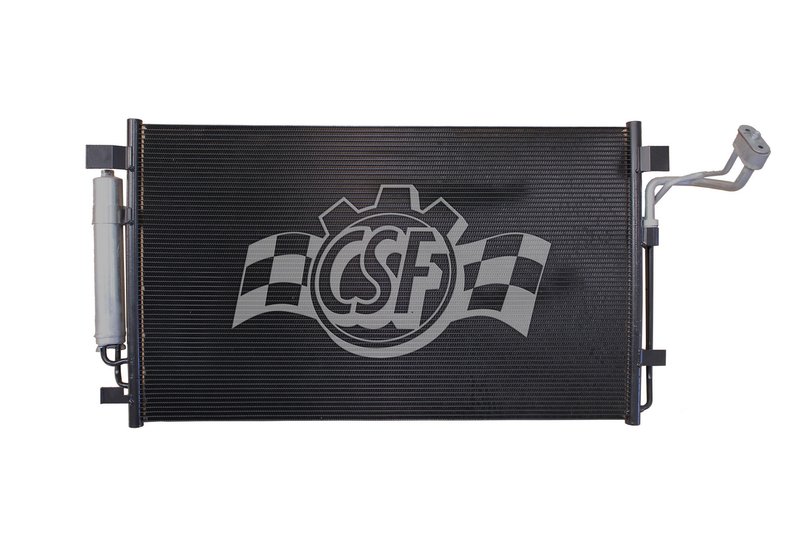

CSF 10733 A/C Condenser

Overview of CSF A/C Condenser for Nissan Altima and Maxima

The CSF A/C Condenser part number 10733 is designed specifically for Nissan Altima and Maxima models. Featuring a parallel flow construction, this condenser ensures efficient heat exchange and reliable air conditioning performance for your vehicle.

• Parallel flow construction for improved cooling efficiency
• Core thickness of 1/2 inch for optimal airflow
• Core dimensions: 16 1/2 inches width by 26 3/5 inches length
• Compact box size with dimensions 36 2/7 inches length, 20 6/7 inches width, and 9 4/7 inches height
• Lightweight design at 11 lbs for easier handling and installation
• Block fitting inlet and outlet tubes for secure connections
• Non-hazardous material compliant for safe handling

Detailed Product Description

The CSF 10733 A/C Condenser is engineered with a parallel flow design, which enhances the heat dissipation process by allowing refrigerant to flow through multiple parallel channels. This design improves cooling efficiency and reduces pressure drop, making it suitable for Nissan Altima and Maxima vehicles. The core thickness of 1/2 inch balances durability and airflow, while the core width and length provide ample surface area for effective heat exchange. The block fitting inlet and outlet tubes ensure a tight and reliable connection to the vehicle’s HVAC system, minimizing the risk of leaks.

Common Applications and Problem Solving

• Replaces faulty or leaking A/C condensers in Nissan Altima and Maxima models
• Restores proper air conditioning cooling performance
• Addresses issues related to overheating of the A/C system
• Eliminates refrigerant leaks caused by damaged condenser cores
• Improves overall HVAC system efficiency and reliability

Installation Notes and Tips

When installing the CSF A/C Condenser 10733, ensure the vehicle is compatible with this part by verifying the make and model. Properly evacuate and recover refrigerant from the system before removal. Handle the condenser carefully to avoid damage to the fins and tubes. Use appropriate tools to connect the block fitting inlet and outlet tubes securely. After installation, perform a leak test and recharge the A/C system according to manufacturer specifications.

Quality Assurance and Warranty

CSF A/C Condensers are manufactured to meet or exceed OEM standards for fit, form, and function. The 10733 condenser is constructed from high-quality materials to provide durability and consistent performance. This product does not contain hazardous materials, ensuring safe handling and installation. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary.
