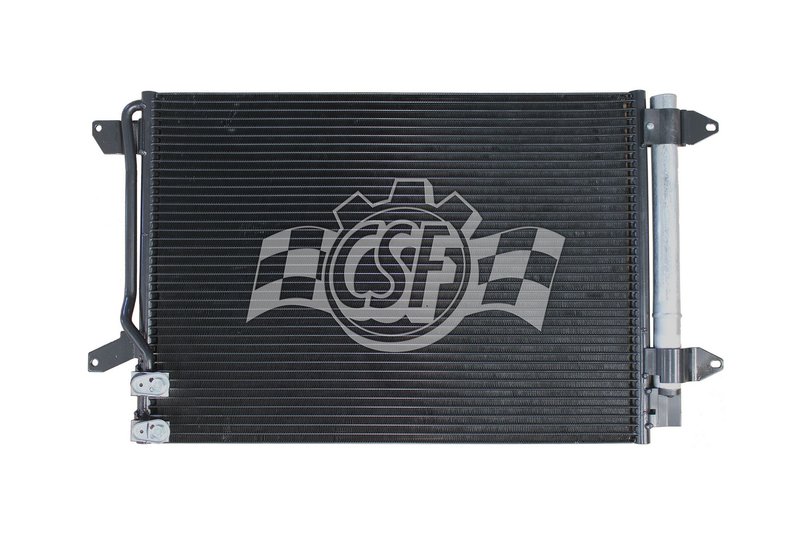

CSF 10745 A/C Condenser

Overview of the CSF A/C Condenser for Volkswagen Beetle and Jetta

The CSF A/C Condenser part number 10745 is designed specifically for Volkswagen Beetle and Jetta models. Featuring a parallel flow construction, this condenser ensures efficient heat exchange and reliable air conditioning performance for your vehicle.

• Parallel flow construction for improved cooling efficiency
• Core thickness of 5/8 inch for optimal durability
• Core dimensions: 15 5/6 inches width by 22 inches length
• Compact box size: 32 2/3 inches length, 19 1/2 inches height, and 4 1/7 inches width
• Lightweight design at 8 lbs for easier handling and installation
• Block fitting inlet and outlet tubes for secure connections
• Non-hazardous material compliant for safe handling

Technical Details and Construction

This CSF A/C Condenser (part number 10745) utilizes a parallel flow design, which allows refrigerant to flow through multiple channels simultaneously. This design enhances heat dissipation and contributes to consistent air conditioning performance in Volkswagen Beetle and Jetta vehicles. The core thickness of 5/8 inch balances durability with efficient heat transfer, while the core width and length (15 5/6 inches by 22 inches) provide ample surface area for cooling.

The condenser’s inlet and outlet tubes feature block fittings, ensuring a secure and leak-resistant connection to the vehicle’s HVAC system. The overall package dimensions and weight (8 lbs) make it manageable for installation without compromising structural integrity.

Compatible Vehicles and Applications

This A/C condenser is compatible with the following Volkswagen models:

• Volkswagen Beetle
• Volkswagen Jetta

It is designed to replace the factory condenser and restore proper air conditioning function, addressing issues such as reduced cooling efficiency or refrigerant leaks.

Common Issues Addressed by This A/C Condenser

• Reduced air conditioning cooling performance
• Refrigerant leaks due to damaged or corroded condenser
• Overheating of the A/C system caused by inefficient heat exchange
• Physical damage from road debris or accidents
• Clogged or blocked condenser fins affecting airflow

Installation Notes and Tips

• Ensure the vehicle’s A/C system is fully evacuated before removing the old condenser
• Inspect and replace any damaged O-rings or seals during installation
• Verify that the block fittings on inlet and outlet tubes are properly secured to prevent leaks
• Check for proper clearance and alignment within the engine bay
• After installation, recharge the A/C system with the correct refrigerant type and amount

Quality Assurance and Warranty

The CSF A/C Condenser part number 10745 is manufactured to meet OEM specifications for Volkswagen Beetle and Jetta models. It is constructed from non-hazardous materials and undergoes quality control to ensure durability and performance. Please refer to CSF’s warranty policy for specific coverage details.
