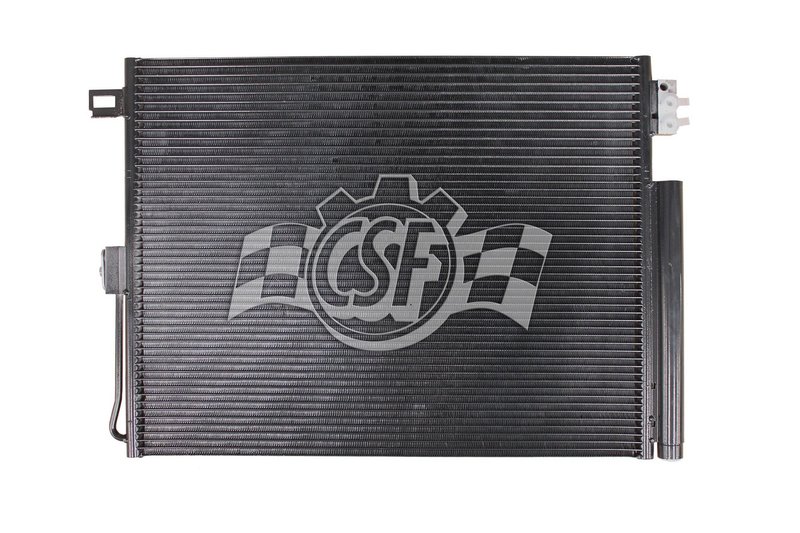

CSF 10770 A/C Condenser

Overview of CSF A/C Condenser for Dodge Durango and Jeep Grand Cherokee

The CSF A/C Condenser part number 10770 is designed specifically for Dodge Durango and Jeep Grand Cherokee models. Featuring a parallel flow construction, this condenser ensures efficient heat exchange and reliable air conditioning performance for your vehicle.

• Parallel flow construction for improved cooling efficiency
• Core dimensions: 26 2/9 inches length, 20 4/5 inches width, 5/7 inches thickness
• Box dimensions: 33 2/3 inches length, 24 2/5 inches width, 3 1/3 inches height
• Lightweight design at 11 5/8 lbs for easier handling and installation
• Inlet and outlet tubes with block fitting and thread connections
• Non-hazardous material composition

Technical Details and Specifications

The CSF 10770 A/C condenser utilizes a parallel flow design, which enhances the heat dissipation process by allowing refrigerant to flow through multiple parallel channels. This design improves cooling capacity and reduces pressure drop compared to traditional tube-and-fin condensers. The core thickness of 5/7 inches, combined with a core width of 20 4/5 inches and length of 26 2/9 inches, provides a substantial surface area for effective heat exchange. The condenser is packaged in a box measuring 33 2/3 inches long, 24 2/5 inches wide, and 3 1/3 inches high, weighing just under 12 pounds, making it manageable for installation.

Compatible Vehicles and Application

This A/C condenser is compatible with select Dodge and Jeep models, specifically the Dodge Durango and Jeep Grand Cherokee. It is engineered to meet the OEM specifications for these vehicles, ensuring proper fitment and optimal performance when replacing the factory condenser.

• Restores efficient air conditioning cooling in Dodge Durango and Jeep Grand Cherokee
• Addresses issues such as reduced cooling capacity and refrigerant leaks
• Helps resolve overheating of the A/C system during operation
• Prevents compressor strain caused by inefficient heat exchange
• Eliminates blockages or damage from debris affecting condenser performance

Installation Notes and Tips

When installing the CSF 10770 A/C condenser, ensure the vehicle’s refrigerant system is properly evacuated and recovered by a certified technician. The block fitting and threaded inlet and outlet tubes require careful alignment to avoid leaks. Inspect all O-rings and seals during installation and replace if necessary. After installation, perform a system pressure test and recharge the refrigerant to manufacturer specifications.

Quality Assurance and Warranty

CSF manufactures this A/C condenser to meet strict quality standards, using corrosion-resistant materials and precision construction. The part is free of hazardous materials and designed for durability in demanding automotive environments. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
