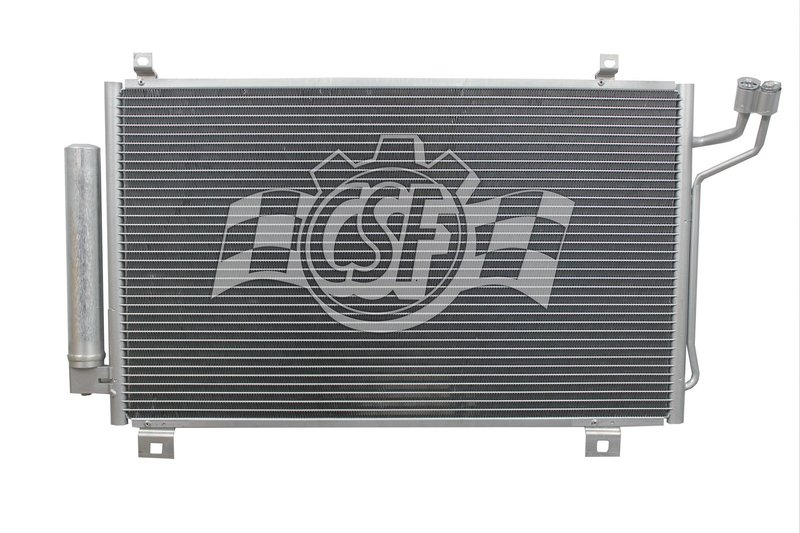

CSF 10778 A/C Condenser

Overview of CSF A/C Condenser for Mazda 6

The CSF A/C Condenser part number 10778 is designed specifically for Mazda 6 models, providing reliable cooling performance. Featuring a parallel flow construction, this condenser ensures efficient heat exchange to maintain optimal air conditioning function.

• Parallel flow construction for improved heat dissipation
• Core thickness of 5/8 inch for durability and performance
• Core dimensions: 15 1/6 inches width by 25 1/8 inches length
• Compact box size: 33 2/3 inches length, 22 1/4 inches height, and 6 inches width
• Lightweight design at approximately 9 1/3 pounds
• Block fitting inlet and outlet tubes for secure connections
• Non-hazardous material compliant for safe handling

Technical Details and Specifications

This CSF A/C Condenser (part number 10778) utilizes a parallel flow design, which enhances the efficiency of refrigerant flow and heat transfer compared to traditional tube-and-fin condensers. The core thickness of 5/8 inch balances compactness with effective cooling capacity. With core dimensions measuring 15 1/6 inches in width and 25 1/8 inches in length, it fits precisely within the HVAC system of Mazda 6 vehicles. The block fitting inlet and outlet tubes ensure a secure and leak-resistant connection to the vehicle’s A/C lines.

Compatible Vehicles and Application

This condenser is compatible with Mazda 6 models, engineered to meet the specific cooling requirements of this vehicle. It is suitable for replacing worn or damaged condensers to restore proper air conditioning performance.

• Restores A/C cooling efficiency in Mazda 6
• Replaces leaking or clogged condensers
• Solves issues related to insufficient cabin cooling
• Addresses refrigerant leaks at the condenser
• Improves overall HVAC system reliability

Installation Notes and Tips

When installing the CSF A/C Condenser 10778, ensure the system is fully evacuated and recharged by a certified technician. Verify that the block fitting inlet and outlet tubes align correctly with the vehicle’s A/C lines to prevent leaks. Inspect surrounding components for wear or damage during installation to maintain system integrity.

Quality Assurance and Warranty

CSF manufactures this A/C condenser to meet OEM standards for fit, form, and function. The part number 10778 undergoes rigorous quality control to ensure durability and performance. This product does not contain hazardous materials and complies with industry safety standards. Warranty details should be confirmed with the distributor or installer.
