CSF 10809 A/C Condenser
OE Quality 60-Day Returns
CSF

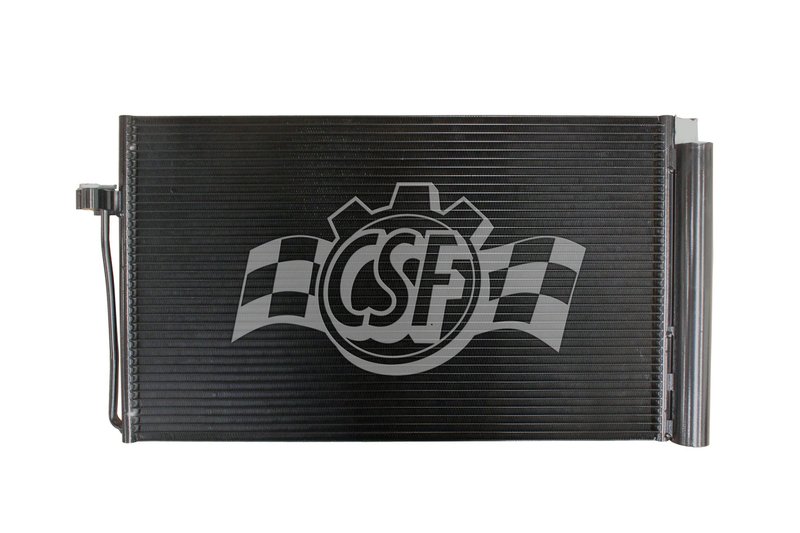

CSF 10809 A/C Condenser

Brand CSF 10809
Construction Parallel flow
Core Thickness 1/2
Core Width 15 2/7
Core Length 19 3/5
Box Height (in) 19
Box Length (in) 28 3/4
Box Weight (lbs) 7 2/7
Box Width (in) 5
Hazardous Material No
Inlet Tube (in) Block fitting
Inlet Width (in) Block fitting
Fits Hyundai · 4 vehicles

Parallel flow construction. Promotes efficient heat transfer in the A/C condenser.

Block fitting inlet. Simplifies connection for a clean, secure install.

ISO/TSO certified factories. Built in facilities that meet recognized quality standards.

Cross-references TYC 4246, 7-4246 and 976062V700 for the same application. See all 3.

$73.62Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $73.62
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all A/C Condenser options

CSF 10809 A/C Condenser for Hyundai Veloster

Restore A/C system performance with the CSF 10809 A/C condenser, built for direct replacement use on select Hyundai Veloster applications. This parallel flow condenser is sized for the listed fitments and uses a block fitting inlet for proper connection at the vehicle’s HVAC system.

  • Parallel flow construction for efficient refrigerant heat transfer
  • Core thickness: 1/2 in.
  • Core width: 15 2/7 in.
  • Core length: 19 3/5 in.
  • Block fitting inlet for the specified vehicle connection
  • Fits 2013-2015 Hyundai Veloster and 2016 Hyundai Veloster, to 2/5/16

Detailed Product Overview

The CSF 10809 is an A/C condenser engineered for the Hyundai Veloster platform, including 2013-2015 models and 2016 vehicles built to 2/5/16. As a parallel flow condenser, it supports efficient refrigerant cooling in a compact core design, helping the air conditioning system maintain proper operating temperatures. The part number 10809 is also referenced for cross-application use with TYC 4246 and interchange numbers 7-4246 and 976062V700.

CSF reports more than 30 million units sold and uses ISO/TSO certified factories for production. The condenser is packaged for protection during handling and storage, and the listed dimensions help confirm fitment before installation.

Common A/C Problems This Part Addresses

  • Reduced cabin cooling performance
  • Refrigerant heat rejection issues
  • Condenser damage from road debris or corrosion
  • A/C system inefficiency after a front-end repair
  • Fitment concerns when replacing the original Hyundai Veloster condenser

Installation Notes and Tips

Verify the vehicle build date before ordering, since 2016 Hyundai Veloster coverage applies only to vehicles built to 2/5/16. Confirm the block fitting inlet style and compare the core dimensions against the original condenser before installation. Proper evacuation, leak checking, and refrigerant recharge procedures are required after condenser replacement.

Quality Assurance

CSF manufactures this condenser in ISO/TSO certified facilities and backs the product with controlled packaging to help protect it before installation. The CSF 10809 is built for the listed Hyundai Veloster applications and follows the dimensional and connection details shown above.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2016HyundaiVeloster1.6LL4N/ATo 2/5/16
2015HyundaiVeloster1.6LL4N/A—
2014HyundaiVeloster1.6LL4N/A—
2013HyundaiVeloster1.6LL4N/A—
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TYC — 42467-4246976062V700
