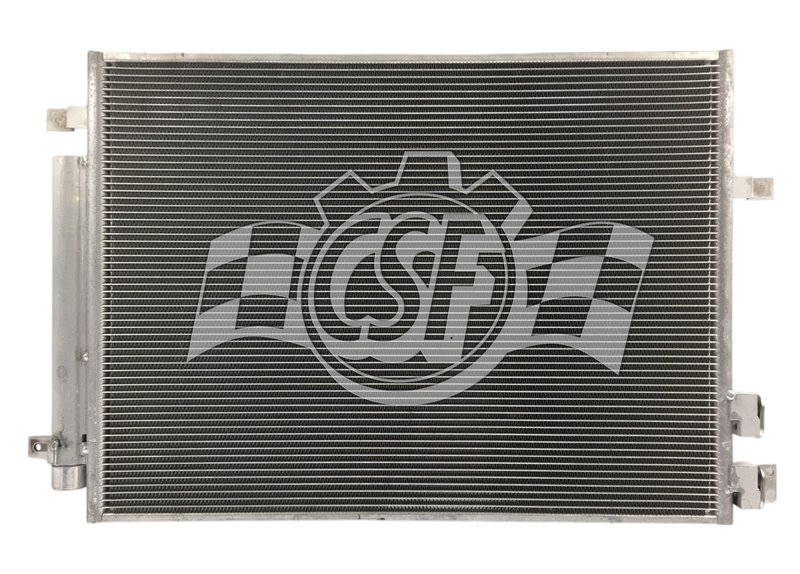

CSF 10816 A/C Condenser

Reliable A/C Condenser for Cadillac ATS, Chevrolet Camaro, and CTS

The CSF A/C Condenser part number 10816 is engineered to provide efficient cooling performance for select Cadillac and Chevrolet models. Designed with a parallel flow construction, this condenser ensures optimal heat dissipation and reliable operation in your vehicle's HVAC system.

• Parallel flow construction for improved heat exchange
• Core thickness of 5/8 inch for durability and performance
• Core dimensions: 16 4/5 inches width by 23 inches length
• Compact box size: 21 inches height, 32 2/7 inches length, and 4 inches width
• Lightweight design at 7 5/8 pounds for easier handling
• Block fitting inlet and outlet tubes for secure connections
• Non-hazardous material compliant for safe handling

Technical Details and Construction

The CSF 10816 A/C Condenser features a parallel flow design that enhances the efficiency of refrigerant cooling by allowing multiple channels for airflow. Its core thickness of 5/8 inch balances strength and thermal performance, while the core width and length (16 4/5 inches by 23 inches) provide ample surface area for heat exchange. The block fitting inlet and outlet tubes ensure a tight and reliable connection to your vehicle’s HVAC system, minimizing the risk of leaks. The condenser’s overall dimensions and weight make it suitable for installation in the HVAC systems of Cadillac ATS, Chevrolet Camaro, and CTS models.

Compatible Vehicles and Applications

This A/C condenser is specifically compatible with the following vehicles:

• Cadillac ATS
• Chevrolet Camaro
• Cadillac CTS

It is designed to replace the original condenser in these models, restoring proper air conditioning function and maintaining cabin comfort.

Common Issues Addressed by This A/C Condenser

• Reduced cooling efficiency due to clogged or damaged condenser
• Leaks in the condenser causing refrigerant loss
• Overheating of the A/C system affecting performance
• Physical damage from road debris or corrosion
• Inconsistent airflow and temperature regulation inside the vehicle

Installation Notes and Tips

When installing the CSF 10816 A/C Condenser, ensure the system is fully evacuated and free of contaminants before fitting the new condenser. Verify that the block fitting inlet and outlet tubes align correctly with the vehicle’s HVAC lines to prevent leaks. It is recommended to inspect and replace the receiver/drier or accumulator and recharge the refrigerant to manufacturer specifications after installation.

Quality Assurance and Warranty

CSF manufactures this A/C condenser to meet or exceed OEM specifications, ensuring reliable performance and durability. The product is constructed from non-hazardous materials and undergoes quality control testing. Please refer to CSF’s warranty policy for specific coverage details related to part number 10816.
