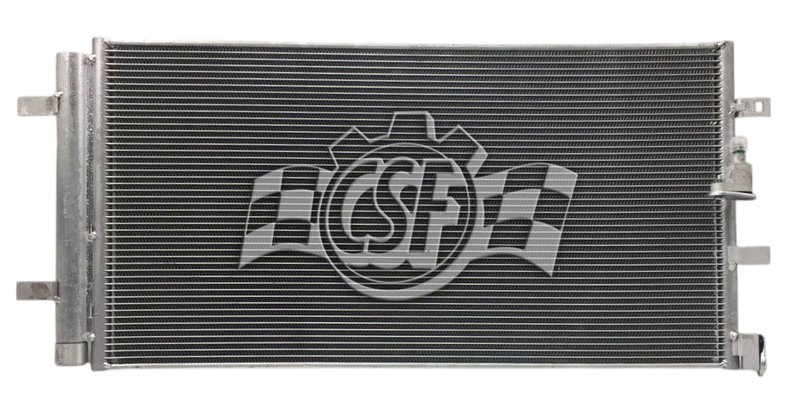

CSF 10820 A/C Condenser

Reliable A/C Condenser for Audi A4 allroad and A5

The CSF A/C Condenser part number 10820 is designed to restore efficient cooling performance in your Audi A4 allroad or A5. Engineered with a parallel flow construction, this condenser ensures optimal heat dissipation and system reliability.

• Parallel flow construction for improved heat exchange
• Core thickness of 5/8 inch for durability and performance
• Core dimensions: 13 1/3 inches width by 25 4/5 inches length
• Compact box size: 34 inches length, 18 1/3 inches height, 4 1/7 inches width
• Lightweight design at 7 3/4 lbs for easier handling
• Block fitting inlet and outlet tubes for secure connections
• Non-hazardous material compliant for safe handling

Technical Details and Construction

This CSF A/C Condenser (part number 10820) features a parallel flow design that enhances refrigerant flow and heat transfer efficiency. The core thickness of 5/8 inch balances durability with effective cooling capacity. Measuring 13 1/3 inches wide and 25 4/5 inches long, the condenser fits precisely within the HVAC system of compatible Audi models. The block fitting inlet and outlet tubes provide secure and leak-resistant connections to the vehicle’s A/C lines. The condenser’s overall packaging dimensions and weight facilitate straightforward installation and handling.

Compatible Vehicles and Applications

This A/C condenser is specifically compatible with the following Audi models:

• Audi A4 allroad
• Audi A5

It is designed to replace the factory condenser and restore proper air conditioning function, addressing issues such as reduced cooling efficiency, refrigerant leaks, and system overheating.

Common Issues Addressed by This A/C Condenser

• Insufficient cabin cooling due to condenser failure
• Refrigerant leaks caused by damaged or corroded condenser cores
• Overheating of the A/C system resulting from poor heat dissipation
• Reduced airflow and pressure drops within the A/C system
• Noise or vibration related to faulty condenser components

Installation Notes and Tips

When installing the CSF A/C Condenser 10820, ensure the system is fully evacuated and recharged according to manufacturer specifications. Verify that the block fitting inlet and outlet tubes are properly seated and sealed to prevent leaks. Inspect surrounding components such as the receiver drier and expansion valve for wear or damage during replacement. Proper handling of the condenser is recommended to avoid bending or damaging the fins.

Quality Assurance and Warranty

CSF manufactures this A/C condenser to meet or exceed OEM standards for fit, form, and function. The part is constructed from non-hazardous materials and undergoes quality control inspections to ensure reliability. Warranty details should be confirmed with the distributor or retailer, as they may vary by region.
