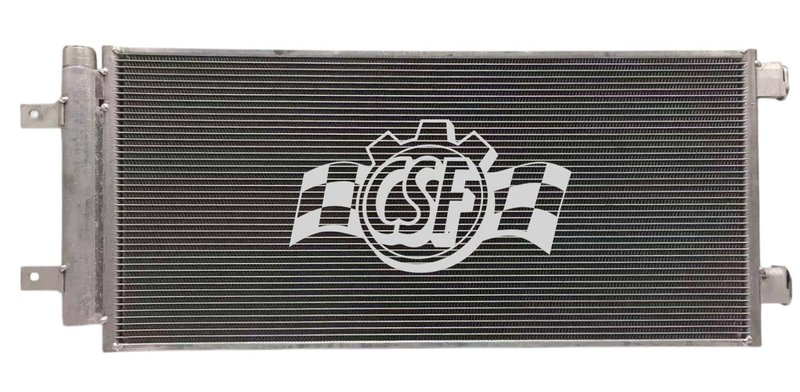

CSF 10822 A/C Condenser

Reliable A/C Condenser for Chevrolet Cruze

The CSF 10822 A/C condenser is designed specifically for Chevrolet Cruze models, providing efficient cooling performance. Featuring a parallel flow construction, this condenser ensures optimal heat dissipation for your vehicle's air conditioning system.

• Parallel flow construction for improved heat exchange
• Core thickness of 5/8 inch for durability and performance
• Core dimensions: 11 5/7 inches width by 26 4/7 inches length
• Compact box size: 15 inches height, 34 4/9 inches length, 3 1/2 inches width
• Lightweight design at 6 2/5 pounds
• Block fitting inlet and outlet tubes for secure connections
• Non-hazardous material compliant

Detailed Product Description

The CSF 10822 A/C condenser is engineered with a parallel flow design, which enhances the efficiency of heat transfer by allowing refrigerant to flow through multiple parallel channels. This design reduces pressure drop and improves overall cooling capacity. The core thickness of 5/8 inch balances durability with effective heat dissipation, while the core width and length (11 5/7 inches by 26 4/7 inches) provide ample surface area for cooling. The condenser’s inlet and outlet tubes use block fittings, ensuring a secure and leak-resistant connection to your Chevrolet Cruze’s HVAC system. Weighing just over 6 pounds, this condenser is easy to handle during installation and replacement.

Compatible Applications and Common Issues Resolved

• Compatible with Chevrolet Cruze models requiring a direct-fit A/C condenser
• Replaces faulty or leaking condensers causing reduced cooling performance
• Addresses issues related to overheating of the A/C system
• Solves refrigerant leaks due to damaged or corroded condenser cores
• Restores proper airflow and heat exchange in the vehicle’s HVAC system

Installation Notes and Tips

When installing the CSF 10822 A/C condenser on your Chevrolet Cruze, ensure the system is fully evacuated and free of contaminants before installation. Verify that the block fitting inlet and outlet tubes align correctly with the vehicle’s existing HVAC lines to prevent leaks. It is recommended to replace the receiver/drier or accumulator and flush the A/C system to maintain optimal performance. Proper torque specifications should be followed to avoid damage to the condenser or fittings.

Quality Assurance and Warranty

CSF manufactures the 10822 A/C condenser to meet or exceed OEM standards for fit, form, and function. The product is constructed from high-quality materials and undergoes rigorous testing to ensure durability and reliable performance in Chevrolet Cruze vehicles. This condenser is free of hazardous materials and complies with industry safety standards. Warranty details are available from the manufacturer or authorized distributors.
