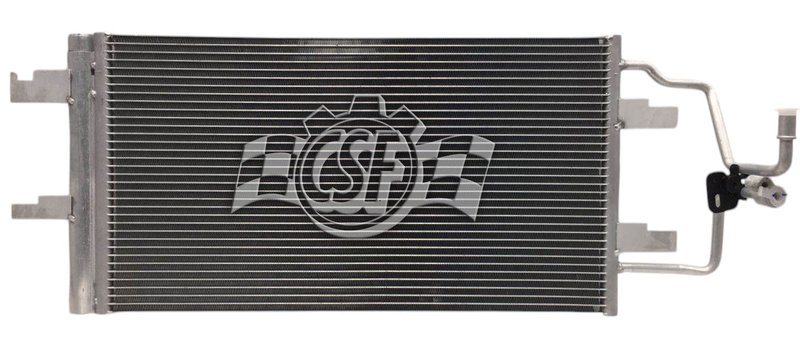

CSF 10846 A/C Condenser

Reliable A/C Condenser for Buick, Chevrolet, and Pontiac Vehicles

The CSF A/C Condenser part number 10846 is engineered to provide efficient cooling performance for select Buick, Chevrolet, and Pontiac models. Designed with a parallel flow construction, this condenser ensures optimal heat dissipation and durability for your vehicle's HVAC system.

• Parallel flow construction for improved cooling efficiency
• Core thickness of 5/7 inches for balanced airflow and heat exchange
• Core dimensions: 13 5/8 inches width by 25 1/3 inches length
• Box dimensions: 40 3/4 inches length, 8 2/3 inches width, 18 5/7 inches height
• Lightweight design at approximately 12 1/3 lbs
• Block fitting inlet tube and tube outlet for secure connections
• Non-hazardous material compliant for safe handling

Technical Details and Construction

The CSF 10846 A/C condenser features a parallel flow design that enhances heat transfer efficiency by allowing refrigerant to flow evenly through multiple channels. Its core thickness of 5/7 inches strikes a balance between compact size and effective cooling capacity. The core width and length, measuring 13 5/8 inches and 25 1/3 inches respectively, provide ample surface area for heat exchange. The inlet tube uses a block fitting, while the outlet tube is a standard tube type, ensuring compatibility with the HVAC system of compatible vehicles.

Compatible Buick, Chevrolet, and Pontiac Models

This A/C condenser is compatible with several GM vehicles, including Buick Allure and LaCrosse, Chevrolet Impala, Impala Limited, and Monte Carlo, as well as the Pontiac Grand Prix. When searching for an A/C condenser replacement for these models, part number 10846 is a direct fit designed to meet OEM specifications.

Common Issues Addressed by This A/C Condenser

• Reduced cooling performance due to clogged or damaged condenser
• Leaks in the condenser causing refrigerant loss
• Overheating of the HVAC system during operation
• Corrosion or physical damage from road debris
• Inconsistent airflow and temperature regulation inside the vehicle

Installation Notes and Tips

Ensure the vehicle’s A/C system is fully evacuated and depressurized before removing the old condenser. Verify that the inlet and outlet tube fittings match the existing HVAC lines to avoid leaks. Handle the condenser carefully to prevent damage to the fins and tubes during installation. After installation, recharge the A/C system with the correct refrigerant and check for leaks and proper operation.

Quality Assurance and Warranty

CSF manufactures this A/C condenser to meet industry standards for durability and performance. The part is constructed from non-hazardous materials and designed for long service life. While specific warranty details are not provided, CSF products typically come with a limited warranty against defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
