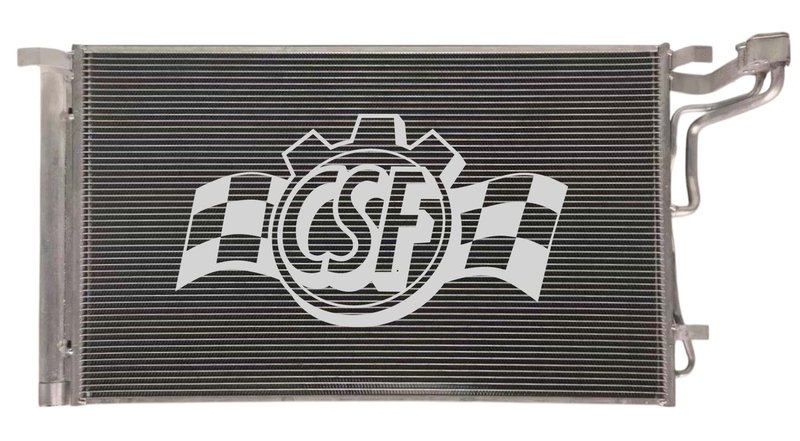

CSF 10853 A/C Condenser
| Brand | CSF 10853 |
|---|---|
| Construction | Parallel flow |
| Core Thickness | 1/2 |
| Core Width | 14 2/3 |
| Core Length | 25 1/5 |
| Box Height (in) | 19 |
| Box Length (in) | 32 1/2 |
| Box Weight (lbs) | 7 5/8 |
| Box Width (in) | 8 1/4 |
| Hazardous Material | No |
| Inlet Tube | Block fitting |
| Outlet Tube | Block fitting |
| Fits | Hyundai · 4 vehicles |
Parallel flow construction. Promotes efficient refrigerant flow through the condenser.
Block fitting inlet and outlet. Simplifies connection with a clean, integrated tube design.
ISO/TSO certified factories. Built in certified facilities with proven production standards.
Cross-references TYC 30030, 97606F2000 and HY3030166 for the same application. See all 3.
CSF 10853 A/C Condenser for Hyundai Elantra
Restore proper A/C system heat exchange with the CSF 10853 A/C condenser. This parallel flow condenser is built for direct replacement service on select Hyundai Elantra models and uses block fitting inlet and outlet connections for a clean OE-style installation.
Compatible with 2017-2018 Hyundai Elantra, 2019 Hyundai Elantra from 11/14/18, and 2020 Hyundai Elantra, this condenser is sized for the application and built to support efficient refrigerant cooling in the HVAC system.
Key Features
- Parallel flow construction for efficient refrigerant heat transfer
- Core thickness: 1/2 in.
- Core width: 14 2/3 in.
- Core length: 25 1/5 in.
- Block fitting inlet and outlet tube connections
- Direct-fit replacement for select Hyundai Elantra applications
- CSF Part Number 10853
Product Details
The CSF 10853 condenser is engineered for the HVAC system in select Hyundai Elantra vehicles, including 2017-2018 models, 2019 models built from 11/14/18, and 2020 models. Its parallel flow design supports efficient refrigerant cooling, while the block fitting connections help maintain OE-style routing and fitment. CSF reports over 30 million units sold and manufactures in ISO/TSO certified factories, reflecting established production controls for automotive cooling components. This part cross-references TYC 30030 for the same application.
What This Part Helps Address
- Weak cabin cooling caused by a leaking or restricted condenser
- A/C performance loss after front-end impact damage
- Refrigerant flow issues from corrosion or internal blockage
- System inefficiency from a worn or damaged heat exchanger
- Fitment problems when replacing the original Hyundai Elantra condenser
Installation Notes and Tips
Verify the vehicle build date before ordering for 2019 Hyundai Elantra applications, since this condenser applies from 11/14/18. Confirm block fitting connections, condenser dimensions, and line routing against the original unit before installation. Replace any contaminated refrigerant oil and evacuate and recharge the system according to factory service procedures after installation.
Quality Assurance
CSF manufactures this condenser in ISO/TSO certified factories and packages components for transit protection. Part number 10853 is built as a direct replacement A/C condenser for the listed Hyundai Elantra applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Hyundai | Elantra | 2.0L | L4 | N/A | — |
| 2019 | Hyundai | Elantra | 2.0L | L4 | N/A | From 11/14/18 |
| 2018 | Hyundai | Elantra | 2.0L | L4 | N/A | — |
| 2017 | Hyundai | Elantra | 2.0L | L4 | N/A | — |
