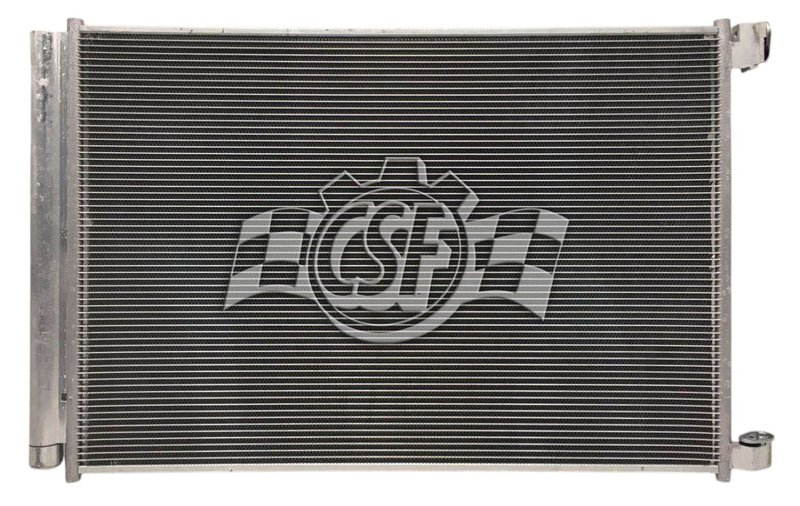

CSF 10885 A/C Condenser

Overview of CSF A/C Condenser 10885 for Mercedes-Benz Models

The CSF A/C Condenser part number 10885 is designed specifically for select Mercedes-Benz vehicles, including the C200, C250, C300, and AMG variants such as the E43 AMG and GLC63 AMG. This condenser features a parallel flow construction that enhances cooling efficiency and durability.

• Parallel flow construction for improved heat dissipation
• Core thickness of 1/2 inch for optimal airflow
• Core dimensions: 18 1/2 inches wide by 25 4/5 inches long
• Compact box size: 33 1/2 inches length, 21 inches height, 3 1/2 inches width
• Lightweight design at approximately 7 2/3 pounds
• Block fitting inlet and outlet tubes for secure connections
• Non-hazardous material compliant

Technical Details and Construction

The CSF 10885 A/C condenser utilizes a parallel flow design, which allows refrigerant to flow through multiple flat tubes simultaneously. This design improves heat exchange efficiency compared to traditional tube-and-fin condensers. The core thickness of 1/2 inch balances compactness with effective cooling capacity, while the core width and length (18 1/2 by 25 4/5 inches) ensure compatibility with the specified Mercedes-Benz models. The block fitting inlet and outlet tubes provide reliable sealing and ease of connection during installation.

Compatible Mercedes-Benz Models

This A/C condenser is compatible with a range of Mercedes-Benz vehicles, including:

• C-Class: C200, C250, C300, C350e
• E-Class AMG: E43 AMG, E53 AMG, E63 AMG, E63 AMG S, E300, E400, E450
• GLC-Class AMG: GLC43 AMG, GLC63 AMG, GLC63 AMG S, GLC300

Common Issues Addressed by This A/C Condenser

• Reduced cooling performance due to clogged or damaged condenser
• Leaks in the condenser causing refrigerant loss
• Overheating of the A/C system during operation
• Corrosion or physical damage from road debris
• Incompatible or inefficient heat exchange in original condenser units

Installation Notes and Tips

When installing the CSF 10885 A/C condenser, ensure the vehicle’s A/C system is properly evacuated and recharged by a certified technician. The block fitting inlet and outlet tubes require secure connections to prevent leaks. Verify fitment with the specific Mercedes-Benz model and engine variant before installation. Handle the condenser carefully to avoid damage to the fins and tubes.

Quality Assurance and Warranty

CSF manufactures this A/C condenser to meet OEM specifications for fit, form, and function. The product is constructed from non-hazardous materials and undergoes quality control to ensure durability and performance. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
