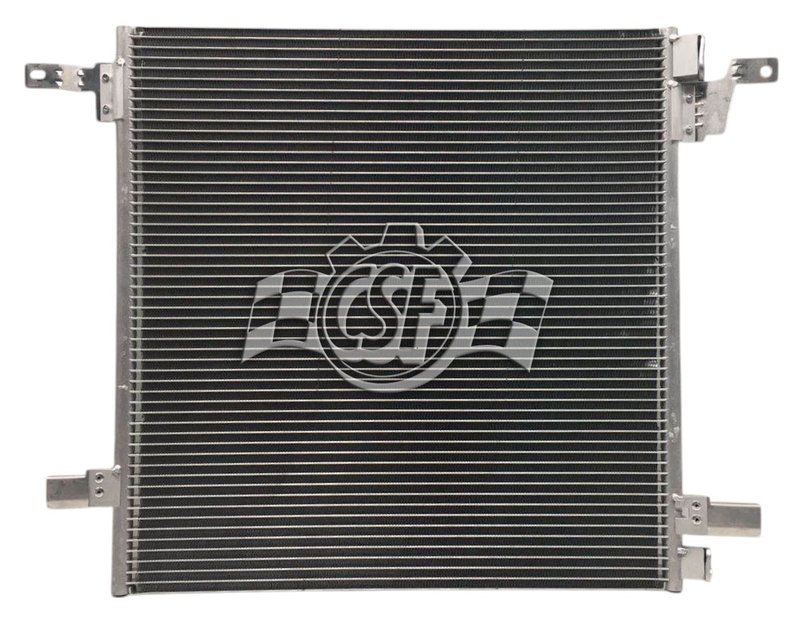

CSF 10886 A/C Condenser

Reliable A/C Condenser for Mercedes-Benz ML Series

The CSF A/C Condenser part number 10886 is designed specifically for Mercedes-Benz ML320, ML350, ML430, and ML500 models. Engineered with a parallel flow construction, this condenser ensures efficient cooling performance and durability for your vehicle's HVAC system.

• Parallel flow construction for optimized heat dissipation
• Core thickness of 5/8 inch for effective cooling capacity
• Core dimensions: 21 1/4 inches width and length for precise fitment
• Box dimensions: 25 3/5 inches height, 32 inches length, and 3 1/2 inches width
• Lightweight design at approximately 8 5/6 lbs for easier handling
• Block fitting inlet and outlet tubes for secure connections
• Non-hazardous material compliant for safe handling and shipping

Detailed Product Description

The CSF 10886 A/C Condenser features a parallel flow design that enhances refrigerant flow and heat exchange efficiency, which is critical for maintaining optimal air conditioning performance in Mercedes-Benz ML320, ML350, ML430, and ML500 vehicles. The core thickness of 5/8 inch balances durability with thermal performance, while the 21 1/4 inch core width and length ensure a precise fit within the HVAC system. The block fitting inlet and outlet tubes provide reliable connections to the vehicle’s refrigerant lines, minimizing the risk of leaks and ensuring consistent operation.

Common Applications and Problem Resolution

• Replaces faulty or leaking A/C condensers in Mercedes-Benz ML320, ML350, ML430, and ML500
• Restores proper cooling efficiency in HVAC systems experiencing reduced airflow or temperature control
• Addresses issues related to refrigerant leaks or blockages within the condenser core
• Improves overall air conditioning system reliability and performance

Installation Notes and Tips

When installing the CSF 10886 A/C Condenser, ensure the vehicle’s refrigerant system is fully evacuated and depressurized before removal of the old condenser. Verify that the block fitting inlet and outlet tubes align correctly with the vehicle’s refrigerant lines to prevent leaks. It is recommended to replace the receiver/drier or accumulator and flush the system to remove any contaminants. Proper torque specifications should be followed to avoid damage to fittings.

Quality Assurance and Warranty

CSF A/C Condensers are manufactured to meet or exceed OEM specifications for fit, form, and function. The 10886 part number undergoes rigorous quality control to ensure durability and performance in Mercedes-Benz ML320, ML350, ML430, and ML500 models. While specific warranty details are not provided here, CSF products typically come with a limited warranty against defects in materials and workmanship.
