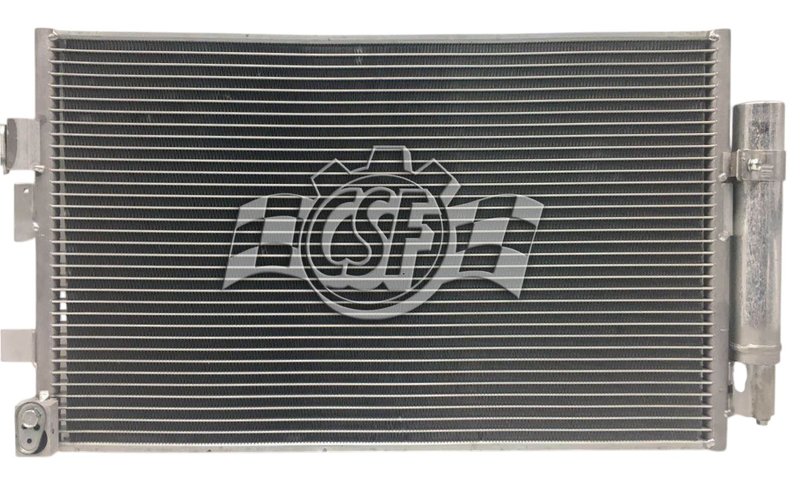

CSF 10892 A/C Condenser
| Brand | CSF 10892 |
|---|---|
| Construction | Parallel flow |
| Core Thickness | 5/8 |
| Core Width | 14 |
| Core Length | 22 5/6 |
| Box Height (in) | 20 2/3 |
| Box Length (in) | 31 1/2 |
| Box Weight (lbs) | 7 |
| Box Width (in) | 5 5/7 |
| Hazardous Material | No |
| Inlet Tube (in) | Block fitting |
| Outlet Tube | Block fitting |
| Fits | Ford · 4 vehicles |
Parallel flow construction. Promotes efficient refrigerant flow through the condenser core.
A/C condenser. Transfers heat from refrigerant to help the system cool effectively.
ISO/TSO certified factories. Built in certified facilities with consistent manufacturing standards.
Cross-references AP Exhaust 30013, 7-30013 and F1FZ19712B for the same application. See all 4.
CSF 10892 A/C Condenser for Ford Focus
Restore proper air conditioning performance with this CSF A/C condenser for select 2016-2018 Ford Focus models. Built with a parallel flow construction and block fitting inlet and outlet tubes, CSF 10892 is engineered for direct replacement use in the HVAC system.
Key Features
- Parallel flow condenser construction for efficient refrigerant heat transfer
- Core thickness: 5/8 in.
- Core width: 14 in.
- Core length: 22 5/6 in.
- Block fitting inlet tube and block fitting outlet tube
- Fits 2016-2018 Ford Focus, N/A
- CSF part number 10892 for application-specific ordering
Product Details
CSF 10892 is an A/C condenser designed for the HVAC system on 2016-2018 Ford Focus vehicles. The parallel flow core layout supports efficient refrigerant cooling, while the compact core dimensions and block fitting connections match the listed application. CSF states its manufacturing is supported by ISO/TSO certified factories and extensive production experience across millions of units sold, reflecting a controlled production process for replacement cooling components. This part cross-references Ford OE and aftermarket numbers such as F1FZ19712B and FO3030260 for the same application.
What It Helps Address
- Weak cabin cooling caused by a leaking or restricted condenser
- Refrigerant loss from damaged condenser tubes or core corrosion
- Reduced A/C efficiency after front-end impact or road debris damage
- Inconsistent vent temperatures during hot-weather driving
- System performance issues tied to an aging Ford Focus condenser
Installation Notes and Tips
Verify the vehicle’s year and configuration against the listed fitment before installation. Inspect the A/C system for contamination, damaged seals, or related component wear before replacing the condenser. Proper evacuation, leak checking, and recharge procedures should be followed after installation to protect system performance.
Quality Assurance
CSF manufactures this condenser in ISO/TSO certified facilities and packages components for transit protection. The part is intended as a direct-fit replacement for the listed Ford Focus applications.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2018 | Ford | Focus | Sedan | Automatic | 1.0L | L3 | N/A | — |
| 2017 | Ford | Focus | Sedan | Automatic | 1.0L | L3 | N/A | — |
| 2016 | Ford | Focus | Hatchback | Automatic | 1.0L | L3 | N/A | — |
| 2016 | Ford | Focus | Sedan | Automatic | 1.0L | L3 | N/A | — |
