Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

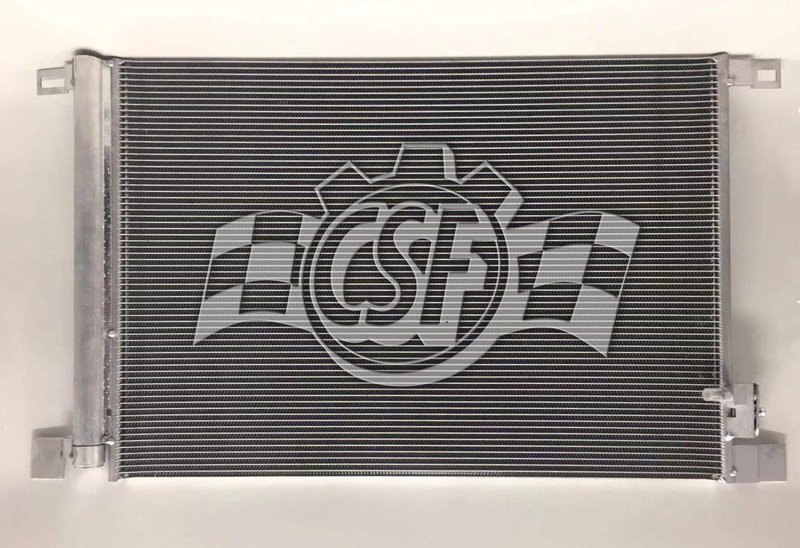

CSF 10913 A/C Condenser
| Brand | CSF 10913 |
|---|---|
| Construction | Parallel flow |
| Core Thickness | 1/2 |
| Core Width | 17 7/8 |
| Core Length | 26 |
| Box Height (in) | 22 1/4 |
| Box Length (in) | 36 3/5 |
| Box Weight (lbs) | 7 2/7 |
| Box Width (in) | 3 1/2 |
| Hazardous Material | No |
| Inlet Tube | Block fitting |
| Outlet Tube | Block fitting |
| Fits | Audi · 11 vehicles |
Parallel-flow construction. Promotes efficient heat transfer for dependable A/C performance.
Block fittings. Simplifies hose connection for a cleaner installation.
ISO/TSO certified factories. Built in certified facilities for consistent manufacturing quality.
Cross-references TYC 30059, 4M0816421B and AU3030139 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
CSF 10913 A/C Condenser for Audi Q7 and Q8
The CSF 10913 A/C condenser is a parallel flow replacement built for select Audi SUV applications. It is engineered with block fitting inlet and outlet tubes and sized to match the listed vehicle fitment for 2017-2021 Audi Q7 and 2019-2021 Audi Q8.
Key Features
- Parallel flow condenser construction for efficient refrigerant heat transfer
- Core dimensions: 26 in. length, 17 7/8 in. width, and 1/2 in. thickness
- Block fitting inlet and outlet tube connections
- Direct-fit application for select Audi Q7 and Audi Q8 models
- Cross-reference part numbers include 4M0816421B and AU3030139
- CSF part number 10913 for streamlined catalog matching
Detailed Description
CSF 10913 is an A/C condenser for the Audi Q7 and Audi Q8 that follows the listed OE-style dimensions and connection style. The parallel flow design supports refrigerant cooling efficiency, while the compact 1/2-inch core thickness and block fitting ports help align with the factory-style HVAC layout on the specified vehicles. This part cross-references TYC 30059 for the same application.
Compatible With 2017-2021 Audi Q7 and 2019-2021 Audi Q8, this condenser is a practical replacement when the original unit is leaking, restricted, or no longer transferring heat effectively. The CSF 10913 part number is also useful when searching for an Audi Q7 A/C condenser replacement or an Audi Q8 condenser by part number.
Common Repair Reasons
- Refrigerant loss from a damaged or corroded condenser
- Reduced cabin cooling performance
- Restricted airflow through the condenser core
- Physical damage from road debris or front-end impact
- Service replacement for a failed factory A/C condenser
Installation Notes and Tips
Verify the vehicle’s condenser dimensions, block fitting connection style, and model year before installation. Inspect the surrounding A/C components, including lines, seals, and the receiver/drier system as applicable, to help prevent repeat leaks. Proper evacuation and recharge procedures should be followed after installation to restore system performance.
Quality Assurance
CSF states that its products are produced in ISO/TSO certified factories and supported by established packaging practices. The brand also notes broad market experience with over 30 million units sold, reflecting long-term manufacturing and distribution scale.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2021 | Audi | Q7 | 2.0L | L4 | — | N/A | — |
| 2021 | Audi | Q8 | 3.0L | V6 | MILD HYBRID EV-GAS (MHEV) | N/A | — |
| 2020 | Audi | Q7 | 2.0L | L4 | — | N/A | — |
| 2020 | Audi | Q8 | 3.0L | V6 | MILD HYBRID EV-GAS (MHEV) | N/A | — |
| 2019 | Audi | Q7 | 2.0L | L4 | — | N/A | — |
| 2019 | Audi | Q7 | 3.0L | V6 | — | N/A | — |
| 2019 | Audi | Q8 | 3.0L | V6 | MILD HYBRID EV-GAS (MHEV) | N/A | — |
| 2018 | Audi | Q7 | 3.0L | V6 | — | N/A | — |
| 2018 | Audi | Q7 | 2.0L | L4 | — | N/A | — |
| 2017 | Audi | Q7 | 3.0L | V6 | — | N/A | — |
| 2017 | Audi | Q7 | 2.0L | L4 | — | N/A | — |
| No rows match your filter. | |||||||
