CSF 10948 A/C Condenser

Reliable A/C Condenser for Ford Edge and Lincoln Nautilus

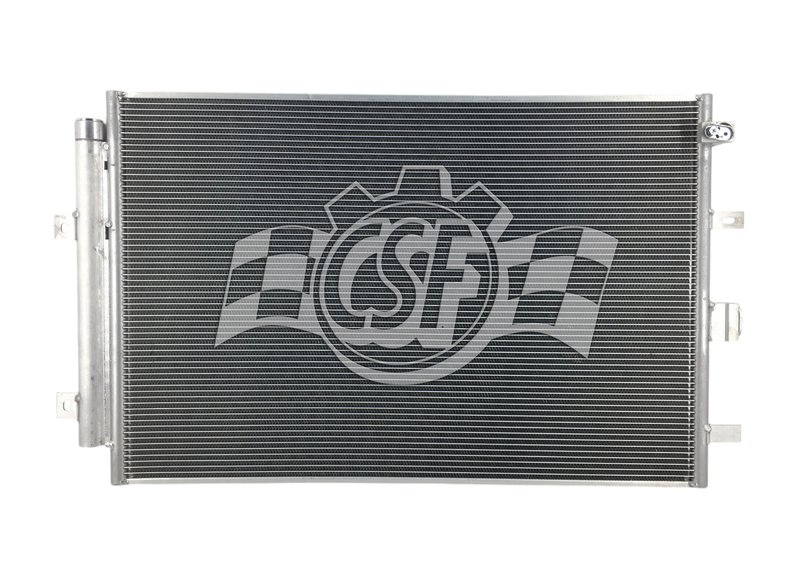

The CSF A/C Condenser part number 10948 is designed specifically for Ford Edge and Lincoln Nautilus models. Engineered with a parallel flow construction, this condenser ensures efficient heat exchange and optimal air conditioning performance for your vehicle.

• Core Thickness: 1/2 inch for effective cooling
• Core Width: 17 1/3 inches
• Core Length: 26 7/9 inches
• Parallel flow construction for improved heat dissipation
• Block fitting inlet and outlet tubes for secure connections
• Lightweight design at approximately 7 1/3 lbs
• Compatible with Ford Edge and Lincoln Nautilus models

Technical Details and Construction

The CSF 10948 A/C Condenser features a parallel flow design, which enhances the heat transfer efficiency compared to traditional tube and fin condensers. Its core dimensions—1/2 inch thickness, 17 1/3 inches width, and 26 7/9 inches length—are optimized to fit the HVAC system of Ford Edge and Lincoln Nautilus vehicles. The block fitting inlet and outlet tubes provide a secure and leak-resistant connection to the vehicle’s A/C lines. The condenser’s compact size and lightweight construction (7 1/3 lbs) contribute to easier handling and installation.

Applications and Common Issues Addressed

• Replaces faulty or leaking A/C condensers in Ford Edge and Lincoln Nautilus
• Restores proper cooling performance in the vehicle’s air conditioning system
• Solves issues related to reduced airflow or inefficient heat exchange
• Addresses refrigerant leaks caused by damaged or corroded condenser cores
• Improves overall HVAC system reliability and comfort

Installation Notes and Tips

When installing the CSF 10948 A/C Condenser, ensure the vehicle’s A/C system is fully evacuated and depressurized before removal of the old condenser. Verify that the block fitting inlet and outlet tubes align correctly with the vehicle’s A/C lines to prevent leaks. Inspect and replace any worn or damaged O-rings or seals during installation. Properly secure the condenser to avoid vibration and potential damage during operation.

Quality Assurance and Warranty

CSF manufactures the 10948 A/C Condenser to meet or exceed OEM specifications for Ford Edge and Lincoln Nautilus vehicles. The product is constructed without hazardous materials and undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided, CSF products typically come with a limited warranty covering defects in materials and workmanship.
