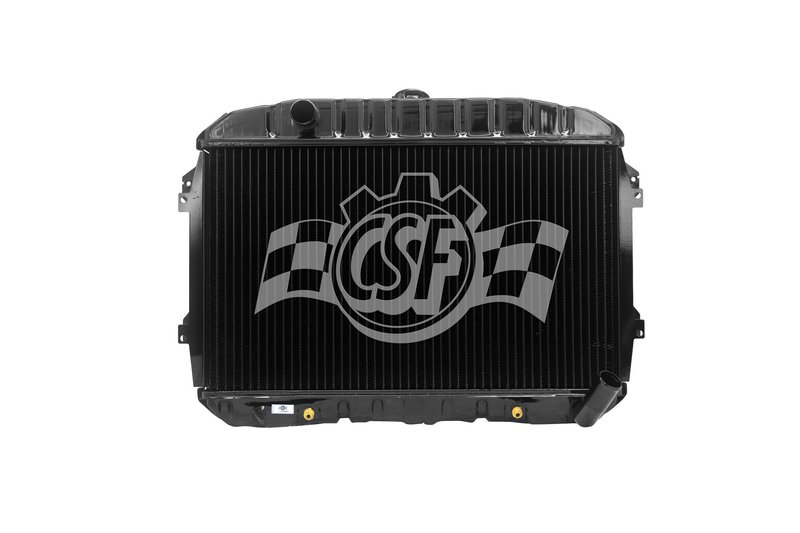

CSF 110 Radiator

Overview of the CSF 3 Row All Metal Radiator Part 110

The CSF 3 Row All Metal Radiator, part number 110, is engineered for vehicles requiring durable and efficient cooling solutions. Designed with a copper core and brass tanks, this radiator supports optimal heat dissipation and long-term reliability in demanding automotive applications.

• Core thickness: 2 1/16 inches
• Core width: 23 1/16 inches
• Core length: 13 3/4 inches
• Core material: Copper for enhanced thermal conductivity
• Tank material: Brass for corrosion resistance
• Inlet diameter: 1 3/8 inches (left side)
• Outlet diameter: 1 3/8 inches (right side)
• Down flow design with 3 core rows
• Includes a high-efficiency concentric type oil cooler measuring 11 13/16 inches
• Does not include radiator cap (CSF cap number 4501 compatible)

Details on the 3 Row All Metal Product Line

The CSF 3 Row All Metal line focuses on robust radiator construction using all-metal components to improve durability and heat transfer. This product line is ideal for vehicles that demand reliable cooling under heavy loads or extended operation. The all-metal design reduces the risk of leaks and extends service life compared to plastic tank radiators.

Technical Description and Specifications

This radiator features a copper core with a thickness of 2 1/16 inches, providing efficient heat exchange across its 3-row design. The core measures 23 1/16 inches wide by 13 3/4 inches long, optimized for down flow cooling systems. Brass tanks enhance corrosion resistance and structural integrity. The inlet and outlet diameters are both 1 3/8 inches, positioned on the left and right sides respectively, facilitating straightforward hose connections. Additionally, the integrated oil cooler is a high-efficiency concentric type, measuring 11 13/16 inches, supporting engine oil temperature regulation.

Common Applications and Problem Solving

• Replaces worn or leaking radiators in vehicles requiring a 3-row copper core radiator
• Addresses overheating issues caused by inefficient cooling systems
• Suitable for vehicles with down flow radiator configurations
• Helps prevent engine oil overheating with integrated oil cooler
• Ideal for vehicles needing durable brass tank radiators for extended service life

Installation Notes and Tips

Ensure compatibility with your vehicle’s cooling system by verifying inlet and outlet diameters and positions. This radiator is designed for down flow systems and requires a radiator cap compatible with CSF cap number 4501, which is not included. Properly flush the cooling system before installation to prevent contamination. Check hose lengths and fittings to match the 1 3/8 inch inlet and outlet diameters on the left and right sides respectively.

Quality Assurance and Warranty

CSF radiators are manufactured to meet industry standards for durability and performance. The all-metal construction enhances resistance to corrosion and mechanical damage. While specific warranty details for part number 110 are not provided here, CSF typically offers warranties covering manufacturing defects. Consult CSF or your parts provider for exact warranty terms.
