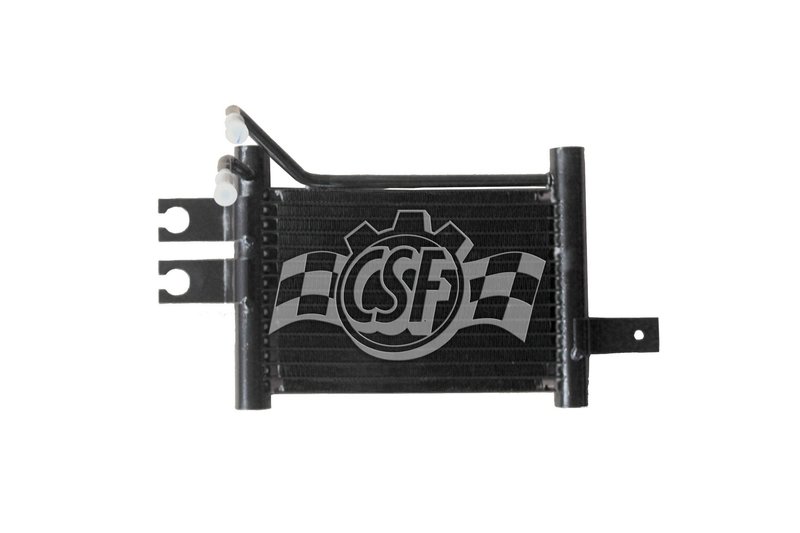

CSF 20000 Automatic Transmission Oil Cooler
| Brand | CSF 20000 |
|---|---|
| Box Height (in) | 11 4/5 |
| Box Length (in) | 17 1/3 |
| Box Weight (lbs) | 2 3/4 |
| Box Width (in) | 6 |
| Construction | parallel flow |
| Core Length | 8 2/3 |
| Core Thickness | 4/5 |
| Core Width | 7 |
| Hazardous Material | No |
| Inlet Tube | tube |
| Outlet Tube | tube |
| Fits | Hyundai · 6 vehicles |
Parallel-flow construction. Promotes efficient fluid cooling in a compact design.
Tube inlet and outlet. Simplifies hose connection for a straightforward installation.
Automatic transmission oil cooler. Helps manage transmission fluid temperature.
Cross-references Carlson 19070, Partslink Numbering System HY4050102 and 254603J000 for the same application. See all 3.
CSF 20000 Automatic Transmission Oil Cooler
The CSF 20000 automatic transmission oil cooler is a parallel-flow unit built to manage transmission fluid temperature in select Hyundai applications. It is compatible with 2007-2012 Hyundai Veracruz models and uses tube inlet and outlet connections for a direct-style cooling setup.
Key Features
- Parallel-flow construction for efficient fluid cooling
- Core dimensions: 4/5 in. thick, 7 in. wide, and 8 2/3 in. long
- Tube inlet and tube outlet connections
- Fits 2007-2012 Hyundai Veracruz
- CSF part number 20000 for catalog and interchange reference
Product Details
Built as an automatic transmission oil cooler, the CSF 20000 helps regulate transmission fluid temperature by routing fluid through a compact parallel-flow core. The core size and tube-style connections make it a practical replacement for vehicles that use this configuration, including the Hyundai Veracruz from 2007 through 2012. If you are searching for a transmission cooler for a 2007-2012 Hyundai Veracruz or a CSF 20000 replacement cooler, this part matches the listed application and connection style.
This part cross-references Carlson 19070 for the same application.
Common Uses
- Transmission fluid temperature control in daily driving
- Replacement for a damaged or leaking transmission cooler
- Restoring cooling performance after restricted fluid flow
- Addressing overheating concerns tied to transmission heat buildup
- Supporting proper operation in a 2007-2012 Hyundai Veracruz
Installation Notes
Verify the tube inlet and outlet layout, core dimensions, and mounting space before installation. Confirm the vehicle’s existing cooler configuration against the CSF 20000 and the Hyundai Veracruz application listing to ensure the replacement matches the original routing and physical envelope. Clean the surrounding cooling system components and inspect transmission lines for wear before final assembly.
Quality Assurance
CSF manufactures cooling components for automotive applications, and this transmission oil cooler is listed with parallel-flow construction and defined dimensional specifications for application matching. The part is cataloged with interchange references including OE-style cross-reference data for identification.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Hyundai | Veracruz | 3.8L | V6 | N/A | — |
| 2011 | Hyundai | Veracruz | 3.8L | V6 | N/A | — |
| 2010 | Hyundai | Veracruz | 3.8L | V6 | N/A | — |
| 2009 | Hyundai | Veracruz | 3.8L | V6 | N/A | — |
| 2008 | Hyundai | Veracruz | 3.8L | V6 | N/A | — |
| 2007 | Hyundai | Veracruz | 3.8L | V6 | N/A | — |
