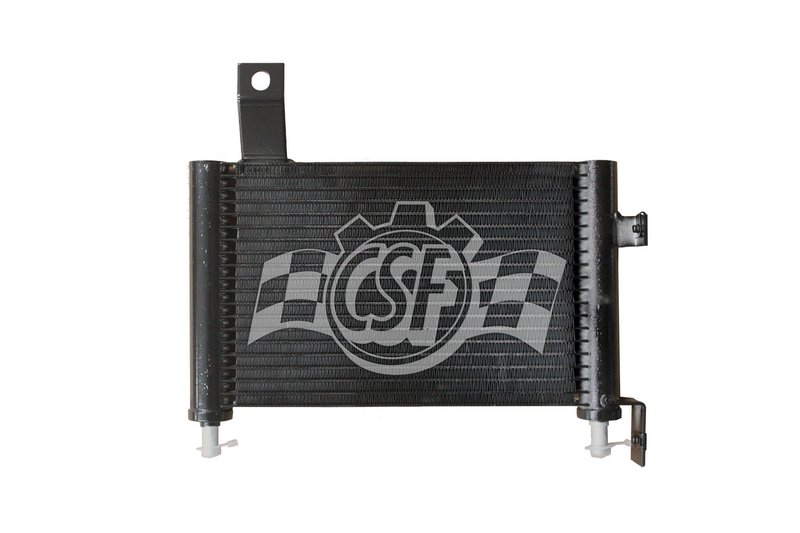

CSF 20017 Automatic Transmission Oil Cooler

Reliable Automatic Transmission Oil Cooler for Ford Econoline Models

The CSF 20017 automatic transmission oil cooler is engineered to provide efficient cooling for Ford E-150, E-150 Econoline, E-250, E-350 Econoline, E-350 Super Duty, and Econoline Wagon vehicles. Designed with a parallel flow construction, this cooler helps maintain optimal transmission temperatures under demanding driving conditions.

• Parallel flow construction for effective heat dissipation
• Core dimensions: 12 1/8" length, 7 7/8" width, and 1" thickness
• Compact box size: 19" height, 18 1/2" length, 3 1/2" width
• Lightweight design at 3 5/8 lbs for easy handling
• Equipped with tube-style inlet and outlet for secure connections
• Non-hazardous material compliant for safe installation

Detailed Product Description

The CSF 20017 automatic transmission oil cooler features a parallel flow core that enhances cooling efficiency by allowing transmission fluid to pass through multiple channels simultaneously. Measuring 12 1/8 inches in length, 7 7/8 inches in width, and 1 inch in thickness, the core is designed to fit precisely within the cooling system of Ford Econoline series vehicles. The cooler’s inlet and outlet tubes ensure a reliable connection to the transmission fluid lines, reducing the risk of leaks. Its compact packaging dimensions and lightweight construction facilitate straightforward installation and handling.

Compatible Vehicles and Applications

This transmission oil cooler is compatible with the following Ford models:

• Ford E-150 and E-150 Econoline
• Ford E-250
• Ford E-350 Econoline and E-350 Super Duty
• Ford Econoline Wagon

Common Issues Addressed by the CSF 20017 Oil Cooler

• Overheating of automatic transmission fluid during heavy towing or extended driving
• Reduced transmission efficiency due to elevated fluid temperatures
• Premature transmission wear caused by insufficient cooling
• Fluid breakdown leading to transmission shifting problems
• Potential transmission failure from inadequate heat dissipation

Installation Notes and Tips

When installing the CSF 20017 automatic transmission oil cooler, ensure the following:

• Verify compatibility with your specific Ford Econoline model and year
• Inspect inlet and outlet tubes for secure fitment and proper alignment
• Use appropriate transmission fluid lines and clamps to prevent leaks
• Follow manufacturer torque specifications for mounting hardware
• Check for clearance around the cooler to avoid contact with other engine components

Quality Assurance and Warranty

CSF transmission oil coolers are manufactured to meet OEM standards for durability and performance. The 20017 model is constructed from high-quality materials designed to withstand thermal cycling and corrosion. This product does not contain hazardous materials and is backed by CSF’s quality assurance protocols. Please refer to CSF’s warranty terms for specific coverage details.
