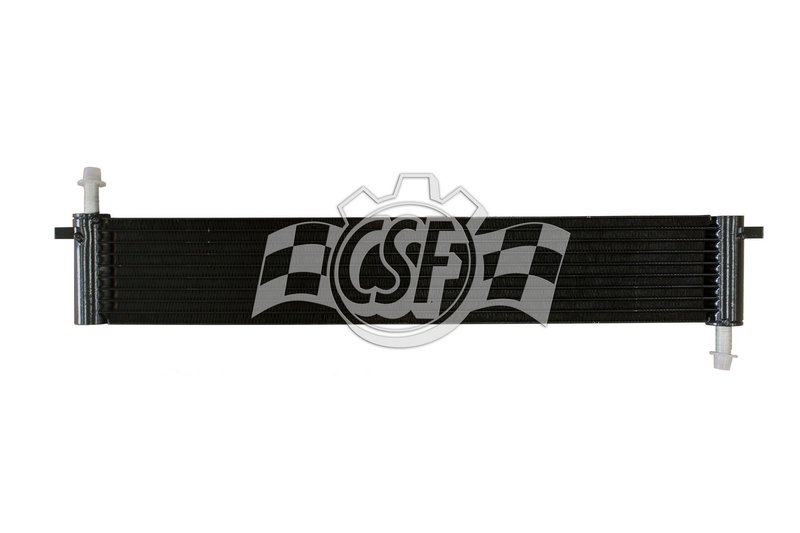

CSF 20023 Automatic Transmission Oil Cooler

Reliable Automatic Transmission Oil Cooler for Ford and Lincoln

The CSF 20023 automatic transmission oil cooler is designed to provide efficient cooling for Ford Expedition and Lincoln Navigator models. Featuring a parallel flow construction, this cooler helps maintain optimal transmission temperatures under demanding driving conditions.

• Parallel flow construction for effective heat dissipation
• Core dimensions: 21 2/3 inches length, 3 5/7 inches width, 1 inch thickness
• Compact box size: 27 inches length, 9 1/4 inches height, 3 1/7 inches width
• Lightweight design at approximately 3 1/3 pounds
• Equipped with tube-style inlet and outlet for secure connections
• Non-hazardous material for safe handling and installation

Technical Details and Specifications

The CSF 20023 automatic transmission oil cooler utilizes a parallel flow core design, which enhances cooling efficiency by allowing transmission fluid to pass through multiple channels simultaneously. The core measures 21 2/3 inches in length, 3 5/7 inches in width, and 1 inch in thickness, providing a balanced surface area for heat exchange without adding excessive bulk. The cooler is housed in a compact box measuring 27 inches long, 9 1/4 inches high, and 3 1/7 inches wide, making it suitable for installation in the engine bays of Ford Expedition and Lincoln Navigator vehicles. Both the inlet and outlet tubes are designed for secure hose connections, ensuring reliable fluid flow and minimizing the risk of leaks.

Compatible Vehicles and Applications

This automatic transmission oil cooler is compatible with the following vehicles:

• Ford Expedition
• Lincoln Navigator

It is specifically engineered to support the transmission cooling needs of these models, helping to prevent overheating and maintain transmission performance during towing, heavy loads, or extended driving.

Common Issues Addressed by the CSF 20023 Oil Cooler

• Transmission overheating during high-load conditions
• Reduced transmission fluid lifespan due to excessive heat
• Potential transmission damage from inadequate cooling
• Decreased vehicle performance related to transmission temperature spikes
• Fluid leaks caused by worn or inefficient coolers

Installation Notes and Tips

When installing the CSF 20023 automatic transmission oil cooler, ensure that the inlet and outlet tubes are properly connected to the vehicle’s transmission lines to prevent leaks. Verify that the cooler is securely mounted in a location with adequate airflow to maximize cooling efficiency. It is recommended to inspect and replace any worn hoses or clamps during installation. Professional installation is advised to maintain system integrity and performance.

Quality Assurance and Warranty

CSF manufactures the 20023 automatic transmission oil cooler with durable materials and precise construction standards. This product is free from hazardous materials, ensuring safe handling. While specific warranty details may vary, CSF typically offers coverage against manufacturing defects. Consult the product documentation or manufacturer for exact warranty terms.
