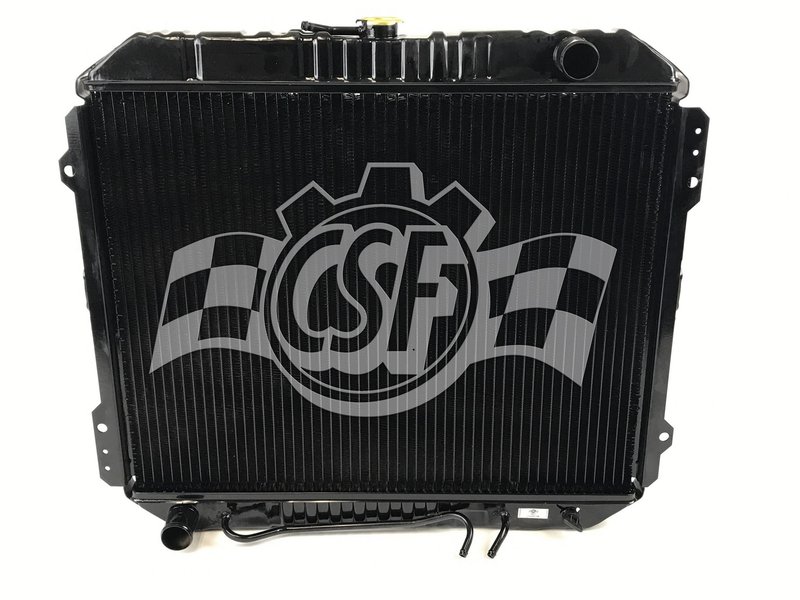

CSF 2027 Radiator

Overview of CSF 2 Row All Metal Radiator for Isuzu Trooper

The CSF 2027 radiator is designed specifically for the Isuzu Trooper, providing reliable cooling performance with durable all-metal construction. This 2-row radiator features a copper core and brass tanks, engineered to maintain optimal engine temperature under various driving conditions.

• Core Thickness: 1 1/8 inches
• Core Width: 20 13/16 inches
• Core Length: 16 9/16 inches
• Core Material: Copper
• Tank Material: Brass
• Inlet Diameter: 1 1/4 inches (right side)
• Outlet Diameter: 1 1/4 inches (left side)
• Down flow design with 2 core rows
• Includes high-efficiency concentric oil cooler (11 13/16 inches)
• Cap not included (CSF cap number 4502 compatible)

Details on the 2 Row All Metal Product Line

The CSF 2 Row All Metal line focuses on robust radiator construction using copper cores and brass tanks, which offer enhanced durability and heat dissipation compared to plastic or aluminum alternatives. This all-metal design supports consistent cooling performance and longevity, making it suitable for vehicles like the Isuzu Trooper that require dependable engine temperature regulation.

Technical Specifications and Features

The CSF 2027 radiator features a down flow design with two rows of copper core tubes measuring 1 1/8 inches thick, 20 13/16 inches wide, and 16 9/16 inches long. The brass tanks provide corrosion resistance and structural integrity. The inlet and outlet diameters are both 1 1/4 inches, positioned on the right and left sides respectively, facilitating straightforward hose connections. Additionally, the integrated high-efficiency concentric oil cooler (11 13/16 inches) enhances engine oil cooling, contributing to overall engine performance and reliability.

Applications and Common Issues Addressed

• Replacement for leaking or damaged radiators on Isuzu Trooper models
• Improves engine cooling efficiency to prevent overheating
• Addresses corrosion and tank failure common in older radiators
• Supports oil cooling needs with built-in oil cooler for enhanced engine protection
• Suitable for vehicles requiring a down flow radiator configuration

Installation Notes and Tips

When installing the CSF 2027 radiator, ensure compatibility with the Isuzu Trooper model year and engine configuration. The radiator does not include a cap; use a CSF cap number 4502 or equivalent. Verify hose diameters match the 1 1/4 inch inlet and outlet sizes. Properly bleed the cooling system after installation to avoid air pockets and ensure optimal performance.

Quality Assurance and Warranty

CSF radiators are manufactured to meet OEM specifications with quality materials such as copper cores and brass tanks. The 2 Row All Metal radiator line is designed for durability and consistent cooling performance. While specific warranty details are not provided here, CSF products typically come with a limited warranty covering defects in materials and workmanship.
