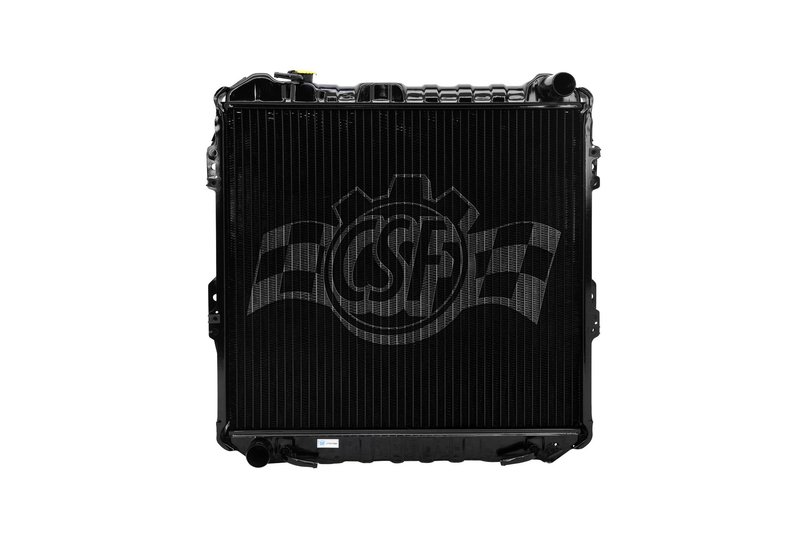

CSF 2056 Radiator

Overview of CSF 3 Row All Metal Radiator 2056

The CSF 3 Row All Metal Radiator part number 2056 is engineered for Toyota 4Runner and Pickup models. Designed with durable copper and brass materials, this radiator offers reliable cooling performance for vehicles requiring a down flow cooling system.

• Core thickness: 1 11/16 inches
• Core width: 20 11/16 inches
• Core length: 18 11/16 inches
• Core material: Copper
• Tank material: Brass
• Inlet diameter: 1 3/8 inches (right side)
• Outlet diameter: 1 3/8 inches (left side)
• Down flow radiator type with 3 core rows
• Includes high-efficiency concentric oil cooler (14 3/4 inches)
• Box dimensions: 25 5/16" length x 25 7/8" width x 6 5/8" height
• Box weight: 18 lbs

About the 3 Row All Metal Product Line

The CSF 3 Row All Metal line features radiators constructed entirely from metal components, including a copper core and brass tanks. This design enhances heat dissipation and durability compared to plastic or mixed-material radiators. The three-row core configuration provides increased cooling capacity, making it suitable for Toyota 4Runner and Pickup vehicles that demand efficient engine temperature management under various driving conditions.

Detailed Product Description

This radiator (part number 2056) is a down flow type, meaning coolant flows from the top to the bottom of the core, optimizing heat transfer. The copper core and brass tanks resist corrosion and improve thermal conductivity. The 3-row core thickness of 1 11/16 inches and dimensions of approximately 20 11/16 inches wide by 18 11/16 inches long provide ample surface area for effective cooling. The inlet and outlet diameters are both 1 3/8 inches, positioned on the right and left sides respectively, matching factory specifications for compatible Toyota 4Runner and Pickup models. Additionally, the integrated high-efficiency concentric oil cooler (14 3/4 inches) supports engine oil temperature regulation, contributing to overall engine performance and longevity.

Common Applications and Issues Addressed

• Replacement for worn or leaking radiators in Toyota 4Runner and Pickup vehicles
• Resolves overheating caused by inefficient or damaged cooling components
• Addresses coolant leaks from cracked or corroded radiator cores or tanks
• Improves engine oil cooling with integrated oil cooler for vehicles with higher thermal demands
• Suitable for vehicles requiring a down flow radiator design with specific inlet/outlet placements

Installation Notes and Tips

• Ensure compatibility with Toyota 4Runner and Pickup models before installation
• Verify inlet and outlet hose diameters and positions match vehicle specifications
• Drain coolant completely before removing the old radiator to avoid spills
• Inspect and replace radiator hoses and clamps as needed during installation
• Bleed the cooling system properly after installation to prevent air pockets

Quality Assurance and Warranty

The CSF 3 Row All Metal Radiator 2056 is manufactured with high-quality copper and brass materials to meet OEM standards for durability and performance. This radiator does not include a cap but is compatible with CSF cap number 4502. The product is non-hazardous and packaged securely to prevent damage during shipping. Warranty details should be confirmed with the distributor or manufacturer, as they may vary.
