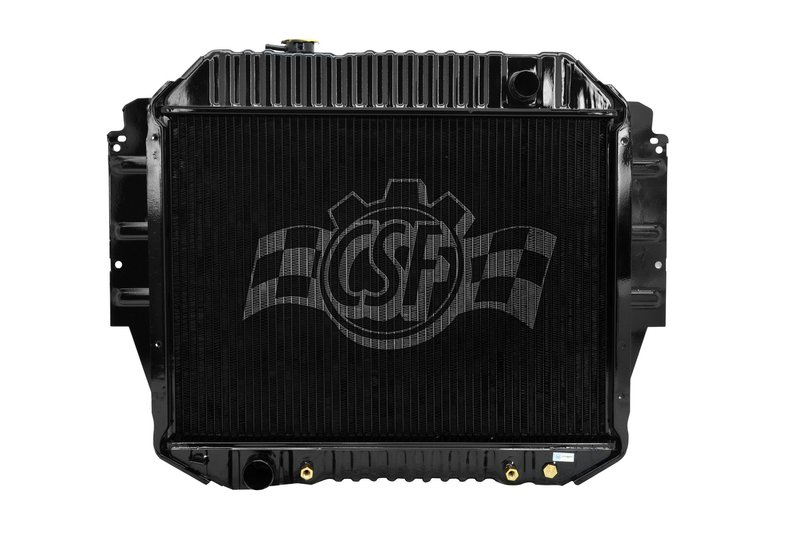

CSF 2276 Radiator

Overview of CSF 2 Row All Metal Radiator 2276

The CSF 2 Row All Metal Radiator, part number 2276, is engineered for reliable cooling performance in Ford E-150 Econoline, E-150 Econoline Club Wagon, E-250 Econoline, E-350 Econoline, and E-350 Econoline Club Wagon models. Designed with durable copper and brass materials, this radiator supports efficient heat dissipation and long-term durability.

• Core thickness: 1 1/8 inches for effective heat transfer
• Core dimensions: 25 7/8 inches width by 19 3/16 inches length
• Constructed with copper core and brass tanks for corrosion resistance
• Down flow design with 2 core rows for optimized cooling
• Inlet diameter: 1 1/2 inches (right side), outlet diameter: 1 3/4 inches (left side)
• Includes a high-efficiency 12-inch concentric oil cooler
• Compatible with specific Ford Econoline models

Details on the 2 Row All Metal Product Line

The CSF 2 Row All Metal line focuses on heavy-duty radiators built entirely from metal components, including copper cores and brass tanks. This design enhances durability and heat dissipation compared to plastic or mixed-material radiators. The 2-row core configuration balances cooling capacity with compact size, making it suitable for Ford Econoline vans requiring dependable cooling under demanding conditions.

Technical Description and Features

This radiator features a 1 1/8 inch thick copper core measuring 25 7/8 inches wide and 19 3/16 inches long, providing a robust surface area for heat exchange. The brass tanks improve resistance to corrosion and mechanical stress. The down flow design directs coolant from the top to the bottom, facilitating efficient heat removal. The inlet and outlet diameters are sized at 1 1/2 inches (right) and 1 3/4 inches (left), matching factory specifications for the listed Ford Econoline models. Additionally, the integrated 12-inch high-efficiency concentric oil cooler supports engine oil temperature regulation, enhancing overall engine performance.

Applications and Problem Solving

• Replaces worn or leaking radiators in Ford E-150 and E-350 Econoline vans
• Addresses overheating issues caused by inefficient cooling systems
• Restores proper coolant flow with correctly sized inlet and outlet ports
• Improves engine oil cooling through the built-in oil cooler
• Suitable for heavy-duty use in commercial and passenger Econoline vehicles

Installation Notes and Tips

• Ensure compatibility with Ford E-150 Econoline, E-150 Econoline Club Wagon, E-250 Econoline, E-350 Econoline, and E-350 Econoline Club Wagon models before installation
• Verify inlet and outlet hose sizes match the radiator ports (1 1/2 inch inlet right, 1 3/4 inch outlet left)
• Use proper coolant and follow manufacturer torque specifications for mounting hardware
• Inspect and replace radiator cap separately if needed (CSF cap number 4501 compatible)

Quality Assurance and Warranty

The CSF 2 Row All Metal Radiator 2276 is manufactured with high-quality copper and brass materials to meet OEM standards for durability and performance. This radiator is a non-hazardous product and designed for long service life in Ford Econoline vehicles. Warranty details should be confirmed with the distributor or manufacturer at the time of purchase.
