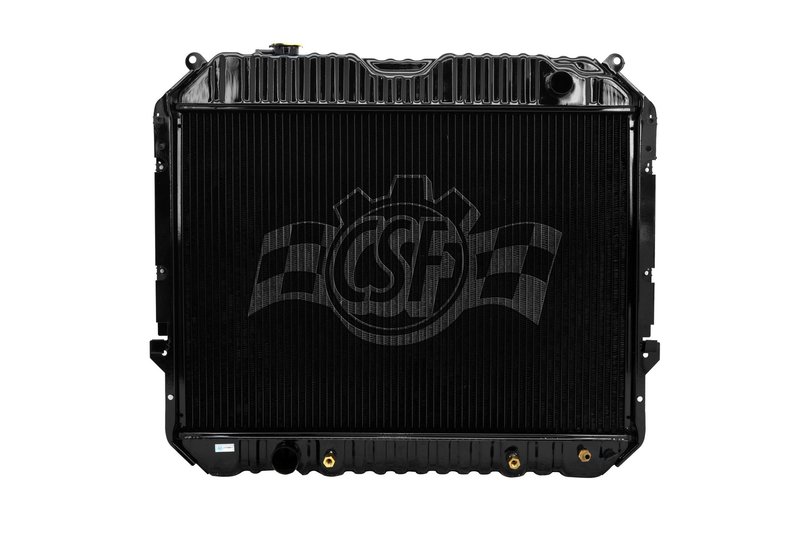

CSF 2277 Radiator
| Brand | CSF 2277 |
|---|---|
| Box Height (in) | 5 4/16 |
| Box Length (in) | 30 1/16 |
| Box Weight (lbs) | 27 |
| Box Width (in) | 35 3/16 |
| Cap Included | No |
| Core Length | 21 1/8 |
| Core Material | Copper |
| Core Thickness | 1 11/16 |
| Core Width | 29 3/16 |
| Csf Cap Number | 4501 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Right |
| Inlet Length (in) | 29 11/16 |
| Inlet Width (in) | 2 5/8 |
| Oil Cooler (in) | 12 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 3/4 Left |
| Outlet Length (in) | 29 11/16 |
| Outlet Width (in) | 2 5/8 |
| Radiator Core Row Quantity | 3 |
| Tank Material | Brass |
| Tech Note | ALL METAL model; Heavy Duty; High-efficiency core |
| Product line | 3 Row All Metal |
| Fits | Ford · 10 vehicles |
All-metal build. Copper core and brass tanks for durable cooling performance.
Three-row core. High-efficiency design helps maximize heat transfer.
Heavy-duty construction. Engineered and wind-tunnel tested for cooling validation.
Cross-references APDI 8011448, OSC 1448 and Spectra Premium CU1448 for the same application. See all 6.
CSF 2277 3-Row All Metal Radiator
CSF 2277 is a heavy-duty radiator built with a copper core and brass tanks for the Ford E-350 Econoline and E-350 Econoline Club Wagon applications listed below. This 3-row, down-flow design is engineered for cooling performance validation and is built to support demanding service conditions.
The CSF 3 Row All Metal line focuses on durable metal construction and high-efficiency cooling. For buyers searching for a Ford E-350 Econoline radiator or a replacement radiator for a 1992-1996 Ford E-350 Econoline Club Wagon, this part number provides a direct-fit option with the specified inlet, outlet, and core dimensions.
Key Features
- Part number: CSF 2277
- 3-row all metal radiator construction
- Copper core with brass tanks
- Down-flow radiator design
- Core thickness: 1 11/16 in.
- Core width: 29 3/16 in.
- Core length: 21 1/8 in.
- Inlet diameter: 1 1/2 in., right side
- Outlet diameter: 1 3/4 in., left side
- High-efficiency concentric-type oil cooler: 12 in.
- Designed for vehicles requiring a small 13 psi cap
Detailed Description
CSF manufactures radiators to high-performance standards and validates cooling performance through laboratory wind tunnel testing. Part number 2277 is part of the brand’s 3 Row All Metal line, which emphasizes full-metal construction for durability and consistent heat transfer. The copper-and-brass build is a practical choice for owners who want a serviceable radiator with traditional materials and a heavy-duty design.
Fits 1992-1996 Ford E-350 Econoline and fits 1992-1996 Ford E-350 Econoline Club Wagon, with notes for radiators requiring a small 13 psi cap and 3 Row All Metal configuration. This CSF 2277 radiator is a direct replacement for the listed Ford full-size van applications and is also cross-referenced to APDI 8011448.
What It Helps Address
- Overheating caused by a worn or restricted radiator core
- Coolant leaks from aging brass tank and core assemblies
- Reduced heat rejection in heavy-duty van service
- Fitment issues when replacing a radiator with matching inlet and outlet locations
- Cooling system service on 1992-1996 Ford E-350 Econoline and Club Wagon models
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet orientation, and cap requirements before installation. This radiator is a down-flow design with the inlet on the right and the outlet on the left, so matching the original configuration is important for proper fitment. Confirm that the vehicle uses a small 13 psi cap and check surrounding cooling-system components for wear before completing the repair.
Quality Assurance
CSF states that its factories are ISO/TSO certified and that its radiators are engineered for performance validation. The brand has supplied radiators worldwide for decades and manufactures a broad range of applications for leading vehicle platforms.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1996 | Ford | E-350 Econoline | 7.5L | V8 | N/A | Fitment: Compatible with radiators requiring a small, 13 psi cap.; 3 Row All Metal |
| 1996 | Ford | E-350 Econoline Club Wagon | 7.5L | V8 | N/A | Fitment: Compatible with radiators requiring a small, 13 psi cap.; 3 Row All Metal |
| 1995 | Ford | E-350 Econoline | 7.5L | V8 | N/A | Fitment: Compatible with radiators requiring a small, 13 psi cap.; 3 Row All Metal |
| 1995 | Ford | E-350 Econoline Club Wagon | 7.5L | V8 | N/A | Fitment: Compatible with radiators requiring a small, 13 psi cap.; 3 Row All Metal |
| 1994 | Ford | E-350 Econoline | 7.5L | V8 | N/A | Fitment: Compatible with radiators requiring a small, 13 psi cap.; 3 Row All Metal |
| 1994 | Ford | E-350 Econoline Club Wagon | 7.5L | V8 | N/A | Fitment: Compatible with radiators requiring a small, 13 psi cap.; 3 Row All Metal |
| 1993 | Ford | E-350 Econoline | 7.5L | V8 | N/A | Fitment: Compatible with radiators requiring a small, 13 psi cap.; 3 Row All Metal |
| 1993 | Ford | E-350 Econoline Club Wagon | 7.5L | V8 | N/A | Fitment: Compatible with radiators requiring a small, 13 psi cap.; 3 Row All Metal |
| 1992 | Ford | E-350 Econoline | 7.5L | V8 | N/A | Fitment: Compatible with radiators requiring a small, 13 psi cap.; 3 Row All Metal |
| 1992 | Ford | E-350 Econoline Club Wagon | 7.5L | V8 | N/A | Fitment: Compatible with radiators requiring a small, 13 psi cap.; 3 Row All Metal |
