OE Quality
60-Day Returns

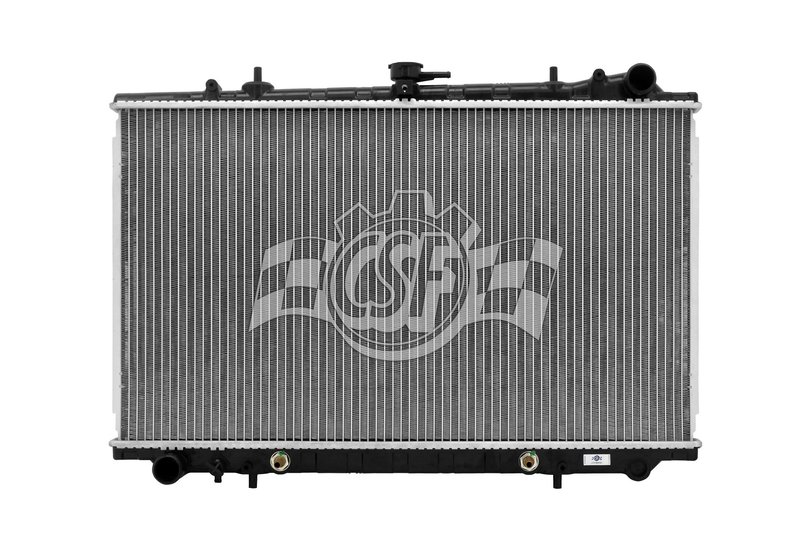

CSF 2464 Radiator
Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator
The CSF 1 Row Plastic Tank Aluminum Core Radiator, part number 2464, is designed specifically for Nissan Maxima models. This radiator features a durable aluminum core combined with OE-style plastic tanks, providing reliable cooling performance tailored to your vehicle's needs.
- Core thickness: 7/8 inch
- Core width: 27 1/16 inches
- Core length: 15 13/16 inches
- Aluminum core material with plastic tanks
- Down flow design with 1 row core
- Inlet and outlet diameter: 1 3/8 inches (right inlet, left outlet)
- Oil cooler included: 11 13/16 inches high-efficiency concentric type
- Cap not included (CSF cap number 4502 compatible)
Product Line Details: 1 Row Plastic Tank Aluminum Core
The CSF 1 Row Plastic Tank Aluminum Core product line combines lightweight aluminum cores with OE-style plastic tanks to balance durability and cost-effectiveness. This design supports efficient heat dissipation while maintaining compatibility with original equipment specifications, making it suitable for Nissan Maxima vehicles requiring a reliable cooling solution.
Detailed Product Description
This radiator features a single-row aluminum core measuring 7/8 inch thick, 27 1/16 inches wide, and 15 13/16 inches long, optimized for down flow cooling systems. The plastic tanks are engineered to match OEM standards, ensuring proper fit and function. The inlet and outlet diameters are both 1 3/8 inches, positioned on the right and left sides respectively, facilitating straightforward hose connections. Additionally, the integrated high-efficiency concentric oil cooler (11 13/16 inches) enhances engine cooling performance, which is critical for maintaining optimal operating temperatures in Nissan Maxima models.
Common Applications and Issues Addressed
- Replacement for leaking or cracked radiators in Nissan Maxima vehicles
- Improves engine cooling efficiency in overheating conditions
- Restores proper coolant flow with down flow radiator design
- Addresses radiator core damage or corrosion
- Supports engine oil cooling with integrated oil cooler
Installation Notes and Tips
Ensure compatibility with your Nissan Maxima by verifying part number 2464 before installation. The radiator is designed for down flow systems and requires connection to 1 3/8 inch inlet and outlet hoses on the right and left sides respectively. Note that the radiator cap is not included; use a compatible CSF cap number 4502. Handle the plastic tanks carefully during installation to avoid damage.
Quality Assurance and Warranty
CSF radiators are manufactured to meet OEM specifications, using high-quality aluminum cores and plastic tanks for durability and performance. This radiator is free of hazardous materials and designed for long service life. Warranty details should be confirmed with the distributor or manufacturer.
| Brand | CSF |
| Part Number | 2464 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Core Thickness | 7/8 |
| Core Width | 27 1/16 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 15 13/16 |
| Inlet Diameter | 1 3/8 right |
| Outlet Diameter | 1 3/8 left |
| Down Flow Or Cross Flow Type | Down flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 4 1/8 |
| Box Length (in) | 29 11/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 21 15/16 |
| Csf Cap Number | 4502 |
| Hazardous Material | No |
| Inlet Length (in) | 27 13/16 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 11 13/16 (high-effeciency concentric type) |
| Outlet Length (in) | 27 13/16 |
| Outlet Width (in) | 1 5/8 |
| Tech Note | O.e.m. style plastic tanks & aluminum core. |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1994 | Nissan | Maxima | 3.0L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; HLG-810T, HLG-910; 1 Row Plastic Tank Aluminum Core |
| 1993 | Nissan | Maxima | 3.0L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; HLG-810T, HLG-910; 1 Row Plastic Tank Aluminum Core |
| 1992 | Nissan | Maxima | 3.0L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; HLG-810T, HLG-910; 1 Row Plastic Tank Aluminum Core |
| 1991 | Nissan | Maxima | 3.0L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; HLG-810T, HLG-910; 1 Row Plastic Tank Aluminum Core |
| 1990 | Nissan | Maxima | 3.0L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; HLG-810T, HLG-910; 1 Row Plastic Tank Aluminum Core |
| 1989 | Nissan | Maxima | 3.0L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; HLG-810T, HLG-910; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
