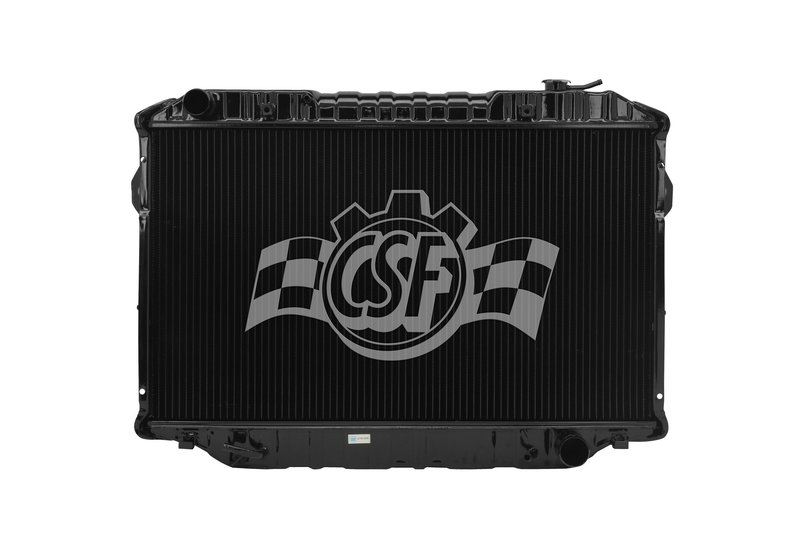

CSF 2517 Radiator

Overview of CSF 3 Row All Metal Radiator 2517

The CSF 3 Row All Metal Radiator, part number 2517, is engineered for reliable cooling performance in Lexus and Toyota vehicles, specifically the Land Cruiser and LX450 models. Designed with durable materials and precise dimensions, this radiator supports efficient engine temperature management.

• Core thickness: 1 11/16 inches for effective heat dissipation
• Core width: 28 11/16 inches and length: 16 3/4 inches
• Constructed with copper core and brass tanks for durability
• Down flow design with 3 core rows for optimized cooling
• Inlet diameter: 1 1/2 inches (left side), outlet diameter: 1 5/8 inches (right side)
• Includes a high-efficiency concentric type oil cooler measuring 15 3/8 inches
• Compatible with Lexus Land Cruiser and Toyota LX450

Details on the 3 Row All Metal Product Line

The CSF 3 Row All Metal line features rugged, all-metal radiators designed to withstand demanding conditions. This product line emphasizes durability and efficient cooling through the use of copper cores and brass tanks, which resist corrosion and provide long service life. The 3-row core configuration enhances heat exchange capacity, making it suitable for heavy-duty applications such as those found in Lexus Land Cruiser and Toyota LX450 vehicles.

Technical Specifications and Features

This radiator offers a core thickness of 1 11/16 inches, with a width of 28 11/16 inches and a length of 16 3/4 inches, providing ample surface area for heat transfer. The copper core material ensures excellent thermal conductivity, while the brass tanks add structural strength. The down flow design facilitates efficient coolant flow through the 3-row core, improving engine cooling. The inlet and outlet diameters are sized at 1 1/2 inches (left) and 1 5/8 inches (right), respectively, matching OEM specifications for the Lexus Land Cruiser and Toyota LX450. Additionally, the integrated high-efficiency oil cooler supports engine oil temperature regulation.

Common Applications and Problem Solving

• Replaces worn or leaking radiators in Lexus Land Cruiser and Toyota LX450
• Addresses engine overheating issues due to inefficient cooling
• Resolves coolant leaks caused by corrosion or damage to original radiator
• Improves cooling system reliability in heavy-duty or off-road conditions
• Supports engine oil temperature control with built-in oil cooler

Installation Notes and Tips

Ensure compatibility with Lexus Land Cruiser and Toyota LX450 models before installation. The radiator features a down flow design and specific inlet/outlet diameters that should match existing hoses. Properly secure all connections and verify coolant levels after installation. Note that the radiator cap is not included; use the CSF cap number 4502 or an equivalent OEM cap. Inspect the cooling system for leaks and test engine temperature regulation post-installation.

Quality Assurance and Warranty

The CSF 3 Row All Metal Radiator 2517 is manufactured with high-quality copper and brass materials to provide durability and corrosion resistance. This radiator is a non-hazardous product and meets OEM fitment standards for Lexus Land Cruiser and Toyota LX450 vehicles. Warranty information is available through CSF and should be confirmed at the time of purchase.
