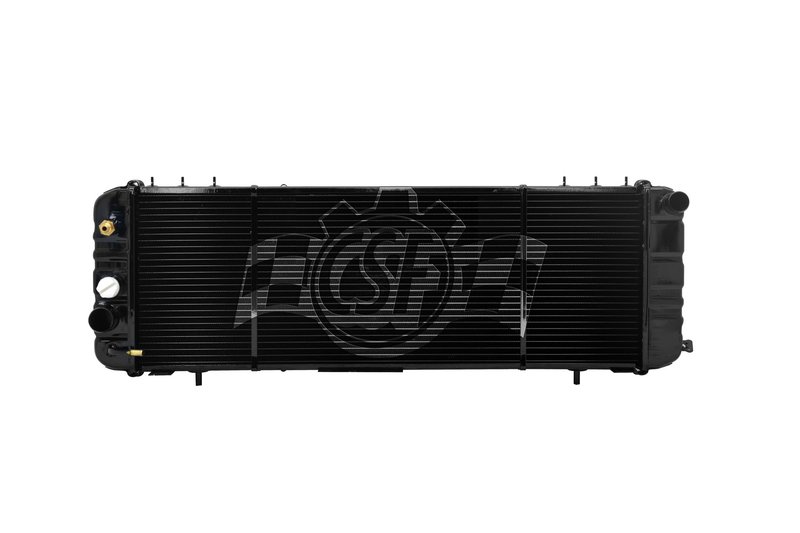

CSF 2572 Radiator
| Brand | CSF 2572 |
|---|---|
| Core Thickness | 1 11/16 |
| Core Width | 10 15/16 |
| Core Material | Copper |
| Tank Material | Brass |
| Core Length | 31 |
| Inlet Diameter | 1 1/4 right |
| Outlet Diameter | 1 1/2 left |
| Down Flow Or Cross Flow Type | Cross flow |
| Radiator Core Row Quantity | 3 |
| Cap Included | No |
| Box Height (in) | 5 4/16 |
| Box Length (in) | 38 3/4 |
| Box Weight (lbs) | 20 |
| Box Width (in) | 14 7/8 |
| Hazardous Material | No |
| Inlet Length (in) | 11 1/8 |
| Inlet Width (in) | 2 1/2 |
| Oil Cooler (in) | 7 1/2 (high-effeciency concentric type) |
| Outlet Length (in) | 11 1/8 |
| Outlet Width (in) | 2 1/2 |
| Tech Note | All metal model. |
| Product line | 3 Row All Metal Heavy Duty |
| Fits | Jeep · 11 vehicles |
All-metal construction. Copper core and brass tanks for durable cooling performance.
3-row design. Adds cooling capacity for demanding thermal loads.
Wind tunnel tested. Validated in lab for cooling performance.
Cross-references OSC 78, Spectra Premium CU78 and 895 2002 094 for the same application. See all 25.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
CSF 2572 Heavy Duty Radiator for Jeep
The CSF 2572 is a 3-row all-metal heavy duty radiator built with a copper core and brass tanks for Jeep cooling system service. It is engineered for cross-flow applications and sized for direct-fit replacement in select Jeep Cherokee, Comanche, and Wagoneer models.
Key Features
- 3-row cross-flow radiator design for increased cooling capacity
- Copper core with brass tanks for an all-metal construction
- Core dimensions: 31 in. length, 10 15/16 in. width, 1 11/16 in. thickness
- Inlet diameter: 1 1/4 in. right side
- Outlet diameter: 1 1/2 in. left side
- Integrated high-efficiency concentric-type oil cooler, 7 1/2 in.
- No cap included
- Part number 2572 from CSF’s 3 Row All Metal Heavy Duty line
Product Details
CSF’s 3 Row All Metal Heavy Duty line focuses on durable radiator construction for demanding cooling applications. This radiator uses a copper-and-brass build rather than plastic end tanks, and CSF states its radiators are engineered to high performance standards, wind tunnel tested for cooling validation, and manufactured across a broad catalog of vehicle-specific designs. The CSF 2572 is a fitment-based replacement for 1988-1990 Jeep Cherokee models without a filler neck, 1987-1990 Jeep Comanche models, and 1987-1990 Jeep Wagoneer models. This part cross-references Spectra Premium CU78 and OSC 78 for the same application.
Common Cooling Issues Addressed
- Overheating during stop-and-go driving or warm-weather use
- Reduced heat rejection from an aging or clogged radiator core
- Leaks caused by deteriorated tanks, seams, or core joints
- Transmission or engine cooling concerns tied to a failing radiator assembly
- Cooling system service needs on Jeep Cherokee, Comanche, and Wagoneer applications
Installation Notes and Tips
- Fits 1988-1990 Jeep Cherokee, N/A, w/o Filler Neck; 3 Row All Metal Heavy Duty
- Fits 1987-1990 Jeep Comanche, N/A, 3 Row All Metal Heavy Duty
- Fits 1987-1990 Jeep Wagoneer, N/A, 3 Row All Metal Heavy Duty
- Verify inlet and outlet orientation before installation: right-side inlet and left-side outlet
- Confirm core dimensions and oil cooler routing against the original radiator before removal
- Flush the cooling system and inspect hoses, clamps, and thermostat during radiator replacement
Quality Assurance
CSF manufactures radiators in ISO/TSO-certified facilities and backs its product development with engineering validation and application coverage across thousands of radiator models. Part number 2572 is built as an all-metal replacement for Jeep cooling service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1990 | Jeep | Cherokee | 4.0L | L6 | N/A | w/o Filler Neck; 3 Row All Metal Heavy Duty |
| 1990 | Jeep | Comanche | 4.0L | L6 | N/A | 3 Row All Metal Heavy Duty |
| 1990 | Jeep | Wagoneer | 4.0L | L6 | N/A | 3 Row All Metal Heavy Duty |
| 1989 | Jeep | Cherokee | 4.0L | L6 | N/A | w/o Filler Neck; 3 Row All Metal Heavy Duty |
| 1989 | Jeep | Comanche | 4.0L | L6 | N/A | 3 Row All Metal Heavy Duty |
| 1989 | Jeep | Wagoneer | 4.0L | L6 | N/A | 3 Row All Metal Heavy Duty |
| 1988 | Jeep | Cherokee | 4.0L | L6 | N/A | w/o Filler Neck; 3 Row All Metal Heavy Duty |
| 1988 | Jeep | Comanche | 4.0L | L6 | N/A | 3 Row All Metal Heavy Duty |
| 1988 | Jeep | Wagoneer | 4.0L | L6 | N/A | 3 Row All Metal Heavy Duty |
| 1987 | Jeep | Comanche | 4.0L | L6 | N/A | 3 Row All Metal Heavy Duty |
| 1987 | Jeep | Wagoneer | 4.0L | L6 | N/A | 3 Row All Metal Heavy Duty |
