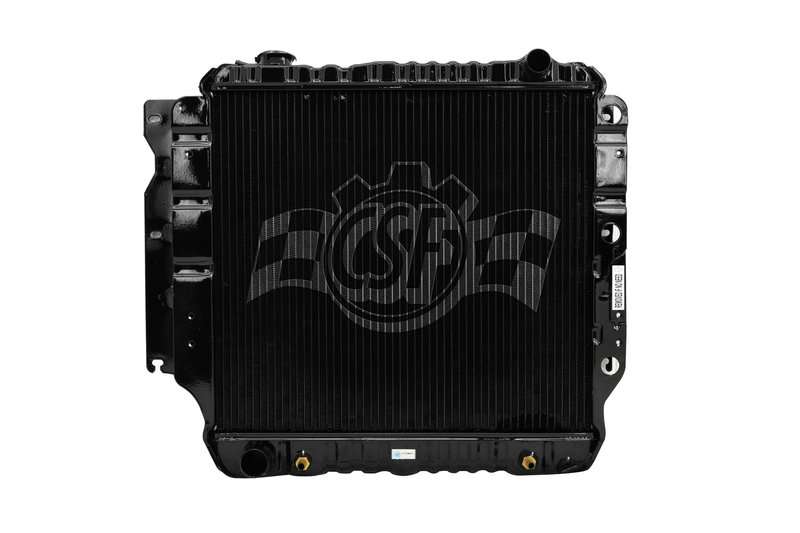

CSF 2576 Radiator

Overview of CSF 2 Row All Metal Radiator for Jeep Wrangler

The CSF 2 Row All Metal Radiator, part number 2576, is engineered specifically for Jeep Wrangler models. Designed with durable copper and brass materials, this radiator offers reliable cooling performance for your vehicle's engine.

• Core thickness: 1 1/4 inches
• Core width: 20 inches
• Core length: 18 1/8 inches
• Core material: Copper
• Tank material: Brass
• Inlet diameter: 1 1/4 inches (right side)
• Outlet diameter: 1 1/2 inches (left side)
• Down flow radiator type with 2 core rows
• Includes a high-efficiency 12-inch concentric oil cooler
• Does not include radiator cap (CSF cap number 4501 compatible)

Details on the 2 Row All Metal Product Line

The CSF 2 Row All Metal line focuses on rugged, all-metal radiators designed for durability and efficient heat dissipation. This multifit model is constructed with copper cores and brass tanks, providing enhanced corrosion resistance and thermal conductivity. The design includes snap-on and push-on fittings for easier installation and maintenance, making it suitable for demanding applications such as the Jeep Wrangler.

Product Description and Specifications

This radiator features a down flow design with two rows of copper core tubes measuring 1 1/4 inches thick, 20 inches wide, and 18 1/8 inches long. The brass tanks complement the copper core to ensure long-lasting performance under high temperatures. The inlet and outlet diameters are 1 1/4 inches (right) and 1 1/2 inches (left), respectively, facilitating proper coolant flow. Additionally, the integrated 12-inch high-efficiency concentric oil cooler supports engine oil temperature regulation, which is critical for maintaining engine health during off-road or heavy-duty use.

Common Applications and Problem Solving

• Replaces worn or leaking radiators in Jeep Wrangler vehicles
• Addresses overheating issues caused by inefficient cooling systems
• Improves engine oil cooling with the built-in oil cooler
• Resolves corrosion or damage from older plastic or aluminum radiators
• Supports engine performance in demanding driving conditions

Installation Notes and Tips

This radiator is designed as a direct replacement for Jeep Wrangler models compatible with part number 2576. It features snap-on and push-on fittings for straightforward installation. Note that the radiator cap is not included; use CSF cap number 4501 or an equivalent compatible cap. Ensure all hoses and clamps are properly secured to prevent leaks. It is recommended to flush the cooling system before installation to maintain optimal performance.

Quality Assurance and Warranty

The CSF 2 Row All Metal Radiator is manufactured with high-quality copper and brass materials to meet OEM standards for durability and heat dissipation. This radiator is free of hazardous materials and designed for long service life. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
