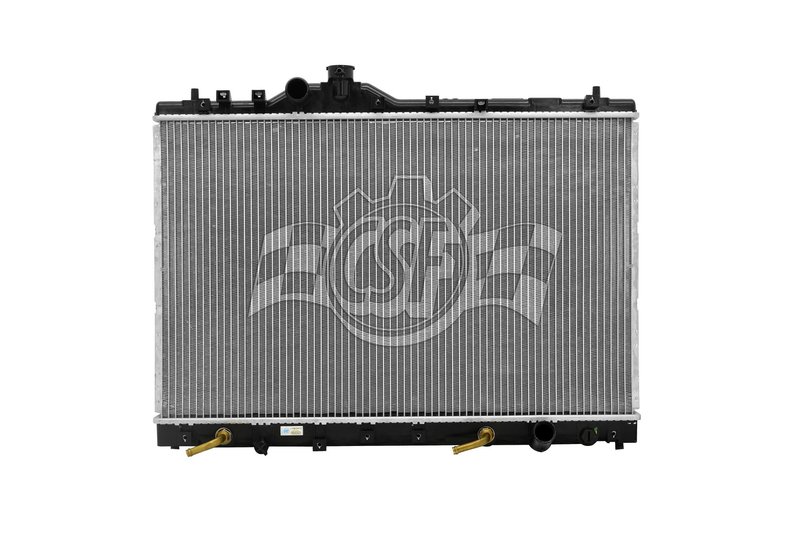

CSF 2598 Radiator
| Brand | CSF 2598 |
|---|---|
| Box Height (in) | 4 1/2 |
| Box Length (in) | 29 7/16 |
| Box Weight (lbs) | 7 |
| Box Width (in) | 23 9/16 |
| Cap Included | No |
| Core Length | 16 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 26 11/16 |
| Csf Cap Number | 4513 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 5/16 Left |
| Inlet Length (in) | 27 1/4 |
| Inlet Width (in) | 1 1/16 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/4 Right |
| Outlet Length (in) | 27 1/4 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Acura · 3 vehicles |
OE-style construction. Plastic tanks and an aluminum core match the original design.
Down-flow design. Promotes efficient coolant movement through the radiator.
Wind tunnel tested. Validated for cooling performance in lab testing.
Cross-references APDI 8012031, DENSO Auto Parts 221-3204 and NGK 2031 for the same application. See all 6.
OE-Style Cooling for Acura TL
This CSF radiator is built for 1996-1998 Acura TL applications with an OE-style plastic tank and aluminum core design. It is engineered as a down-flow radiator with a 1-row core to support consistent engine cooling in a direct-fit replacement format.
Key Features
- Fits 1996-1998 Acura TL, N/A
- CSF Part Number: 2598
- 1-row radiator with aluminum core and plastic tanks
- Down-flow design for OE-style cooling layout
- Core thickness: 5/8 in.
- Core dimensions: 26 11/16 in. wide x 16 3/4 in. long
- Inlet diameter: 1 5/16 in. left
- Outlet diameter: 1 1/4 in. right
- Oil cooler section: 14 3/4 in. high-efficiency concentric type
Product Details
CSF 2598 is a radiator designed around the original equipment style used on Acura TL models from 1996 through 1998. The aluminum core helps transfer heat efficiently, while the plastic tank construction follows the factory-style layout for a straightforward replacement. CSF manufactures a wide range of radiators and validates cooling performance through lab testing, with production backed by ISO/TSO-certified factories.
This part cross-references APDI 8012031 for the same application. If you are replacing a worn Acura TL radiator, CSF 2598 provides the correct down-flow configuration, inlet and outlet sizing, and OE-style tank/core construction for the listed vehicles.
Common Cooling Problems It Can Address
- Coolant leaks from aged radiator tanks or seams
- Restricted cooling performance from a clogged or corroded core
- Overheating caused by reduced heat transfer efficiency
- Cracked or brittle factory-style plastic tanks
- Fitment issues when replacing a damaged OE radiator on Acura TL models
Installation Notes and Tips
Verify the inlet and outlet locations before installation, since this radiator uses a left-side inlet and right-side outlet layout. Confirm the vehicle uses the listed OE-style design and Micro, 16 psi cap requirement noted for the application. Inspect hoses, clamps, and the cooling system for wear before installing the new radiator to help prevent repeat failures.
Quality Assurance
CSF radiators are manufactured in certified facilities and built to performance-focused standards. The brand states that its radiators are wind tunnel tested for cooling validation and supplied across a broad range of vehicle applications, including Acura TL coverage for 1996-1998.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1998 | Acura | TL | 3.2L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1997 | Acura | TL | 3.2L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1996 | Acura | TL | 3.2L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
