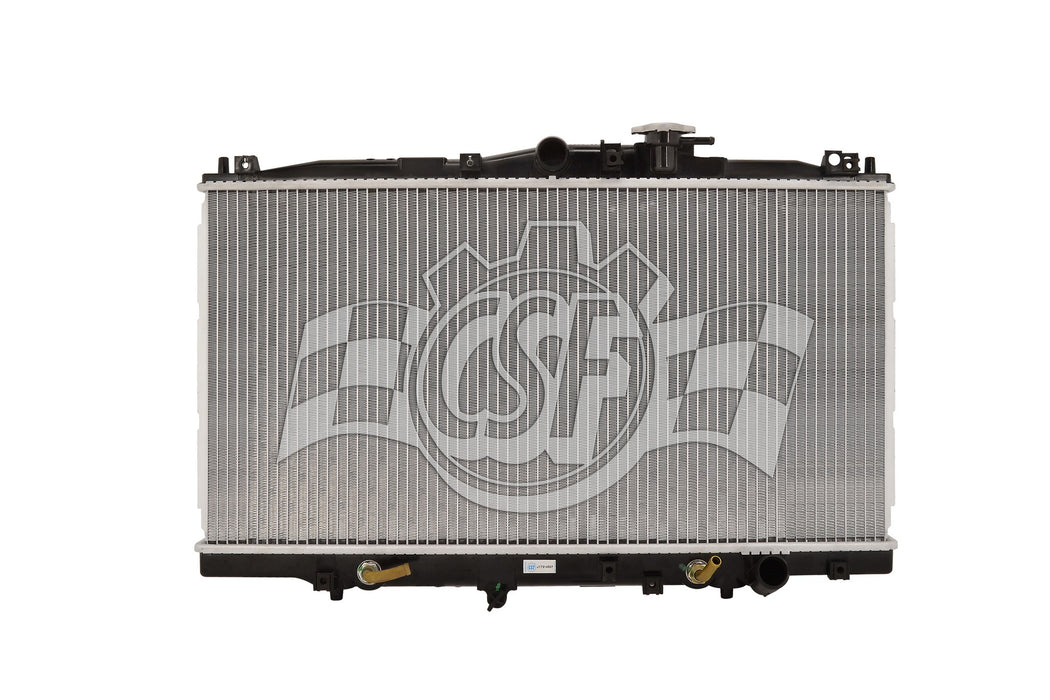

CSF 2605 Radiator
Overview of CSF 2605 Radiator for Acura and Honda Vehicles
The CSF 2605 radiator is designed specifically for select Acura and Honda models, including the Accord, CL, and Prelude. This radiator features a durable aluminum core combined with plastic tanks, engineered to provide reliable cooling performance for your vehicle's engine.
- Core thickness: 5/8 inch
- Core dimensions: 26 11/16 inches width by 13 3/4 inches length
- Aluminum core with plastic tanks for balanced durability and weight
- Down flow design with 1 row core configuration
- Inlet and outlet diameters both 1 1/4 inches, positioned center and right respectively
- Includes CSF radiator cap number 4514
- Oil cooler integrated: 12 13/16 inches high-efficiency concentric type
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to meet the cooling demands of various Acura and Honda vehicles. This product line focuses on providing a balance between lightweight construction and effective heat dissipation, making it suitable for models requiring a single-row radiator design.
Product Description and Specifications
The CSF 2605 radiator features a 5/8 inch thick aluminum core measuring 26 11/16 inches wide and 13 3/4 inches long, optimized for efficient heat exchange. The plastic tanks reduce overall weight while maintaining structural integrity. The radiator is designed with a down flow configuration and a single core row, which supports consistent coolant flow and engine temperature regulation. Both the inlet and outlet have a 1 1/4 inch diameter, with the inlet located at the center and the outlet on the right side, facilitating straightforward hose connections. Additionally, the radiator includes a high-efficiency concentric oil cooler measuring 12 13/16 inches, enhancing engine oil temperature control.
Common Applications and Problem Solving
- Replacement for worn or leaking radiators in Acura Accord, CL, and Prelude models
- Addresses engine overheating issues due to inefficient cooling
- Resolves coolant leaks from damaged plastic tanks or corroded cores
- Improves oil cooling performance with integrated oil cooler
- Suitable for vehicles requiring a down flow, single-row radiator design
Installation Notes and Tips
- Ensure compatibility with Acura and Honda models: Accord, CL, and Prelude
- Verify inlet and outlet hose sizes match 1 1/4 inch diameter connections
- Check radiator cap number 4514 compatibility with your vehicle
- Handle plastic tanks carefully during installation to avoid damage
- Flush cooling system before installation to prevent contamination
Quality Assurance and Warranty Information
The CSF 2605 radiator is manufactured to meet OEM specifications, combining aluminum core durability with plastic tank design. This radiator is not classified as hazardous material and includes the appropriate radiator cap. While specific warranty details are not provided here, CSF products typically come with manufacturer-backed quality assurance to ensure reliable performance in Acura and Honda vehicles.
| Brand | CSF |
| Part Number | 2605 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 4/16 |
| Box Length (in) | 29 1/4 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 20 |
| Cap Included | Yes |
| Core Length | 13 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 26 11/16 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Centre |
| Inlet Length (in) | 27 1/4 |
| Inlet Width (in) | 1 1/16 |
| Oil Cooler (in) | 12 13/16 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/4 Right |
| Outlet Length (in) | 27 1/4 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Multifit model supplied with pressure cap. |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Honda | Prelude | 2.2L | L4 | N/A | OE Style Design; Use Mini, 16 psi Cap; Denso/Toyo; 1 Row Plastic Tank Aluminum Core |
| 2000 | Honda | Prelude | 2.2L | L4 | N/A | OE Style Design; Use Mini, 16 psi Cap; Denso/Toyo; 1 Row Plastic Tank Aluminum Core |
| 1999 | Honda | Prelude | 2.2L | L4 | N/A | OE Style Design; Use Mini, 16 psi Cap; Denso/Toyo; 1 Row Plastic Tank Aluminum Core |
| 1998 | Honda | Prelude | 2.2L | L4 | N/A | OE Style Design; Use Mini, 16 psi Cap; Denso/Toyo; 1 Row Plastic Tank Aluminum Core |
| 1997 | Acura | CL | 2.2L | L4 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 1997 | Honda | Accord | 2.2L | L4 | N/A | OE Style Design; Use Mini, 16 psi Cap; USA Built; 1 Row Plastic Tank Aluminum Core |
| 1997 | Honda | Prelude | 2.2L | L4 | N/A | OE Style Design; Use Mini, 16 psi Cap; Denso/Toyo; 1 Row Plastic Tank Aluminum Core |
| 1996 | Honda | Accord | 2.2L | L4 | N/A | OE Style Design; Use Mini, 16 psi Cap; USA Built; 1 Row Plastic Tank Aluminum Core |
| 1995 | Honda | Accord | 2.2L | L4 | N/A | OE Style Design; Use Mini, 16 psi Cap; USA Built; 1 Row Plastic Tank Aluminum Core |
| 1994 | Honda | Accord | 2.2L | L4 | N/A | OE Style Design; Use Mini, 16 psi Cap; USA Built; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
