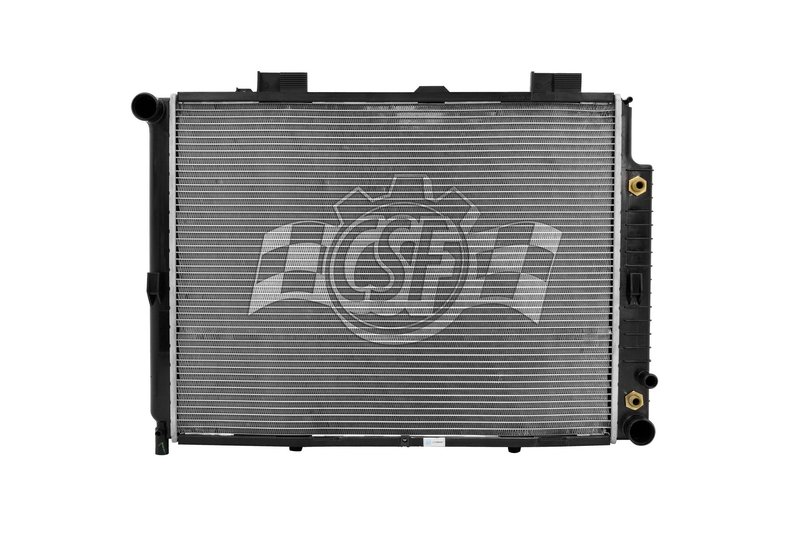

CSF 2612 Radiator

Overview of CSF 2612 Radiator for Mercedes-Benz E320

The CSF 2612 radiator is designed specifically for the Mercedes-Benz E320, offering reliable cooling performance with a durable aluminum core and plastic tanks. This radiator features a cross flow design that optimizes heat dissipation and maintains engine temperature under demanding conditions.

• Core thickness: 1 1/4 inches
• Core width: 19 3/16 inches
• Core length: 25 3/16 inches
• Aluminum core with plastic tanks for durability and corrosion resistance
• Cross flow radiator type for efficient coolant flow
• Inlet and outlet diameter: 1 9/16 inches (left inlet, right outlet)
• Includes a high-efficiency concentric type oil cooler measuring 12 3/8 inches
• Does not include radiator cap

Details on the 2 Row Plastic Tank Aluminum Core Product Line

The CSF 2 Row Plastic Tank Aluminum Core line combines lightweight plastic tanks with a robust aluminum core to provide a balance of durability and efficient heat transfer. This product line is engineered to meet OEM specifications, ensuring compatibility and performance for vehicles like the Mercedes-Benz E320. The two-row core design supports effective cooling while maintaining a compact size suitable for various engine compartments.

Technical Description of CSF Radiator Part Number 2612

The CSF 2612 radiator features a 1 1/4 inch thick aluminum core measuring 19 3/16 inches wide and 25 3/16 inches long. The plastic tanks are designed to resist corrosion and reduce weight, while the cross flow configuration promotes optimal coolant circulation. The inlet and outlet ports both measure 1 9/16 inches in diameter, positioned on the left and right sides respectively, facilitating straightforward hose connections. Additionally, the integrated 12 3/8 inch high-efficiency concentric oil cooler enhances engine oil temperature regulation, contributing to overall engine longevity.

Applications and Common Issues Addressed

• Replacement for worn or leaking radiators on Mercedes-Benz E320 models
• Resolves overheating caused by inefficient or damaged cooling components
• Addresses coolant leaks from cracked or corroded plastic tanks
• Improves engine oil cooling with integrated oil cooler for better performance
• Restores proper coolant flow with cross flow design to prevent engine damage

Installation Notes and Tips

When installing the CSF 2612 radiator, ensure all hose connections match the 1 9/16 inch inlet and outlet diameters. Verify the radiator orientation to maintain the cross flow design for optimal cooling efficiency. Since the radiator does not include a cap, reuse the existing OEM cap or purchase a compatible replacement separately. Inspect all mounting points and hardware for wear before installation to ensure a secure fit.

Quality Assurance and Warranty Information

CSF radiators are manufactured to meet OEM standards, using high-quality aluminum cores and durable plastic tanks. The 2 Row Plastic Tank Aluminum Core product line is engineered for longevity and consistent performance. While specific warranty details for part number 2612 are not provided here, CSF typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
