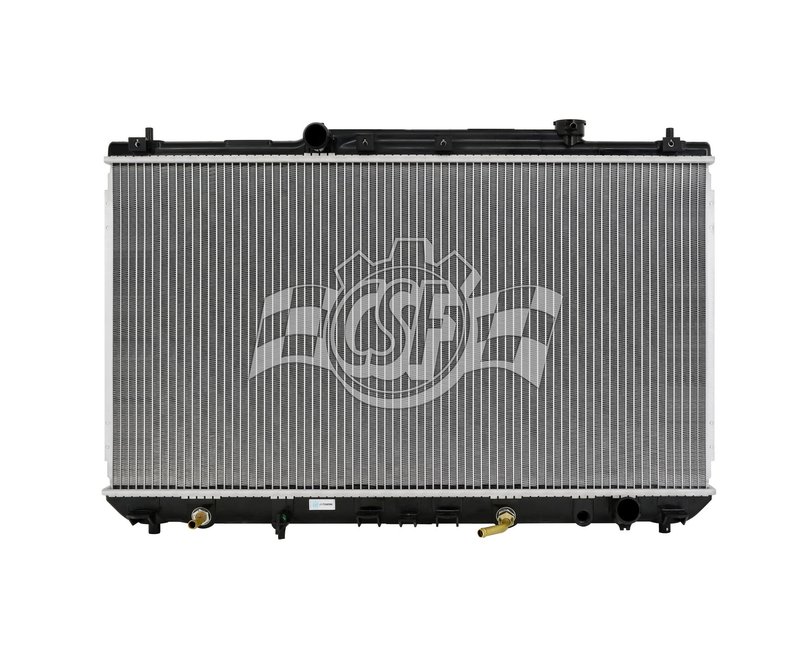

CSF 2621 Radiator
Overview of CSF 2 Row Plastic Tank Aluminum Core Radiator
The CSF 2 Row Plastic Tank Aluminum Core Radiator (Part Number 2621) is designed specifically for Toyota Camry and Solara models. This radiator features a durable aluminum core combined with OE-style plastic tanks, providing reliable cooling performance for your vehicle.
- Core thickness: 5/8 inch
- Core width: 29 1/16 inches
- Core length: 15 13/16 inches
- Aluminum core with plastic tanks
- Down flow design with 1 row core
- Inlet diameter: 1 1/4 inch (left side)
- Outlet diameter: 1 1/4 inch (right side)
- Includes high-efficiency concentric oil cooler (14 3/4 inches)
- Cap not included (compatible with CSF cap number 4514)
Details on the 2 Row Plastic Tank Aluminum Core Product Line
The CSF 2 Row Plastic Tank Aluminum Core line combines lightweight plastic tanks with a robust aluminum core to balance durability and heat dissipation. This product line is engineered to meet OEM specifications, ensuring compatibility and performance for vehicles like the Toyota Camry and Solara. The down flow design and single core row optimize cooling efficiency while maintaining a compact form factor.
Product Description and Specifications
This radiator features a 5/8 inch thick aluminum core measuring 29 1/16 inches wide and 15 13/16 inches long. The plastic tanks are designed to match OEM style and fitment, with a left-side inlet and right-side outlet, both measuring 1 1/4 inches in diameter. The down flow configuration supports effective coolant circulation through the single core row. Additionally, the radiator includes a high-efficiency concentric oil cooler measuring 14 3/4 inches, enhancing engine oil cooling capabilities. The radiator does not come with a cap but is compatible with CSF cap number 4514.
Common Applications and Issues Addressed
- Replacement for leaking or damaged radiators in Toyota Camry and Solara
- Improves engine cooling efficiency in vehicles with OEM-style cooling systems
- Resolves overheating issues caused by worn or clogged radiator cores
- Supports engine oil temperature regulation with integrated oil cooler
- Restores proper coolant flow with down flow design and correct inlet/outlet sizing
Installation Notes and Tips
- Ensure compatibility with Toyota Camry and Solara models before installation
- Use the correct CSF radiator cap (part number 4514) as this radiator does not include a cap
- Inspect hoses and clamps for wear and replace if necessary during installation
- Bleed the cooling system properly to avoid air pockets after installation
- Handle plastic tanks carefully to prevent damage during mounting
Quality Assurance and Warranty
The CSF 2 Row Plastic Tank Aluminum Core Radiator (Part Number 2621) is manufactured to meet OEM standards for fit and function. The aluminum core and plastic tanks are engineered for durability and corrosion resistance. While specific warranty details are not provided here, CSF products typically come with a limited warranty covering defects in materials and workmanship. Verify warranty terms with the supplier or manufacturer.
| Brand | CSF |
| Part Number | 2621 |
| Position | 2 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 4/16 |
| Box Length (in) | 31 13/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 21 3/4 |
| Cap Included | No |
| Core Length | 15 13/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 29 1/16 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Left |
| Inlet Length (in) | 29 1/2 |
| Inlet Width (in) | 1 1/16 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/4 Right |
| Outlet Length (in) | 29 1/2 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Toyota | Camry | 2.2L | L4 | N/A | OE Style Design; Use Micro, 13 psi Cap; 2 Row Plastic Tank Aluminum Core |
| 2001 | Toyota | Solara | 2.2L | L4 | N/A | OE Style Design; Use Micro, 13 psi Cap; 2 Row Plastic Tank Aluminum Core |
| 2000 | Toyota | Camry | 2.2L | L4 | N/A | OE Style Design; Use Micro, 13 psi Cap; 2 Row Plastic Tank Aluminum Core |
| 2000 | Toyota | Solara | 2.2L | L4 | N/A | OE Style Design; Use Micro, 13 psi Cap; 2 Row Plastic Tank Aluminum Core |
| 1999 | Toyota | Camry | 2.2L | L4 | N/A | OE Style Design; Use Micro, 13 psi Cap; 2 Row Plastic Tank Aluminum Core |
| 1999 | Toyota | Solara | 2.2L | L4 | N/A | OE Style Design; Use Micro, 13 psi Cap; 2 Row Plastic Tank Aluminum Core |
| 1998 | Toyota | Camry | 2.2L | L4 | N/A | OE Style Design; Use Micro, 13 psi Cap; 2 Row Plastic Tank Aluminum Core |
| 1997 | Toyota | Camry | 2.2L | L4 | N/A | OE Style Design; Use Micro, 13 psi Cap; 2 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
