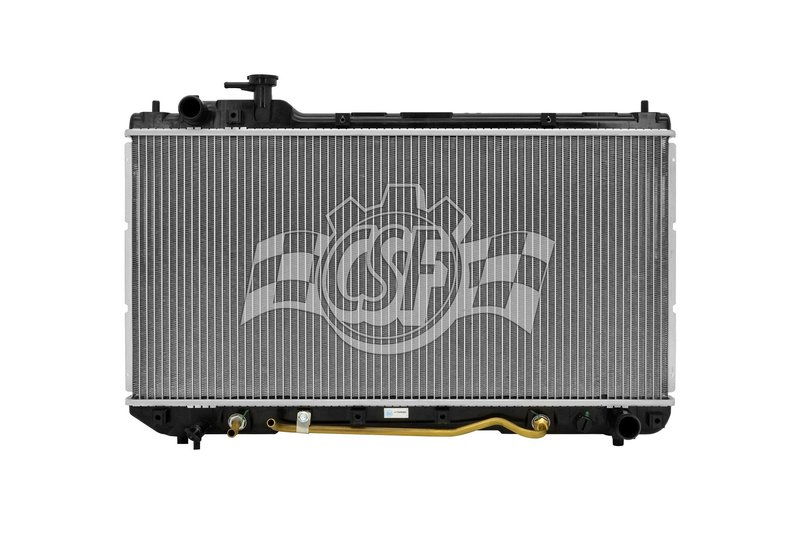

CSF 2624 Radiator
| Brand | CSF 2624 |
|---|---|
| Box Height (in) | 6 1/16 |
| Box Length (in) | 30 7/16 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 21 3/16 |
| Cap Included | No |
| Core Length | 13 3/4 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 27 7/8 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Left |
| Inlet Length (in) | 28 1/8 |
| Inlet Width (in) | 1 5/16 |
| Oil Cooler (in) | 15 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/4 Right |
| Outlet Length (in) | 28 1/8 |
| Outlet Width (in) | 1 3/4 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Toyota · 3 vehicles |
OE-style construction. Plastic tanks and an aluminum core mirror the original design.
Wind tunnel tested. Validated for cooling performance in lab conditions.
Down-flow design. Built for efficient coolant circulation through the radiator.
Cross-references Anchor 2292, Anchor 2293 and APDI 8012292 for the same application. See all 11.
OE-Style Cooling for Toyota RAV4
This CSF radiator is built for 1998-2000 Toyota RAV4 applications with an OE-style plastic tank and aluminum core design. CSF 2624 is engineered for direct replacement use where dependable engine cooling and factory-style fitment matter.
The CSF 2624 radiator combines a 1-row layout with a down-flow configuration, 7/8-inch core thickness, and integrated high-efficiency concentric oil cooler section. It is designed around the original equipment style used on the Toyota RAV4, making it a practical choice for cooling system service on 1998, 1999, and 2000 models.
Key Features
- Fits 1998-2000 Toyota RAV4, N/A
- CSF part number 2624
- 1-row radiator with down-flow design
- Plastic tank and aluminum core construction
- Core dimensions: 27 7/8 in. wide, 13 3/4 in. long, 7/8 in. thick
- 1 1/4 in. left inlet and 1 1/4 in. right outlet
- OE-style plastic tanks and aluminum core
- High-efficiency concentric oil cooler section
- Cap not included; CSF cap number 4514
Detailed Description
CSF 2624 is a replacement radiator for the Toyota RAV4 that follows an OE-style plastic tank and aluminum core layout. CSF manufactures a wide range of radiator designs and validates cooling performance through lab testing, including wind tunnel evaluation, to support consistent thermal management. For drivers servicing a 1998 Toyota RAV4, 1999 Toyota RAV4, or 2000 Toyota RAV4, this radiator provides the correct style and dimensions for a direct-fit cooling system repair.
This part cross-references Spectra Premium CU2292 and APDI 8012292 for the same application.
Common Cooling System Issues
- Leaking radiator tanks or core seams
- Overheating caused by restricted coolant flow
- Reduced cooling efficiency from a damaged or corroded radiator
- Oil cooler section wear in the original radiator assembly
- Fitment problems when replacing a factory-style Toyota RAV4 radiator
Installation Notes and Tips
Verify inlet and outlet orientation before installation: this radiator uses a left-side inlet and right-side outlet. The application note specifies use with a Micro, 16 psi cap, and the radiator is supplied without a cap. Confirm all hose connections, mounting points, and cooling fan clearance before filling and bleeding the system.
Quality Assurance
CSF states that its factories are ISO/TSO certified and that its radiators are engineered to high-performance standards. The brand also notes long-term global production experience and performance validation testing for cooling output.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2000 | Toyota | RAV4 | 2.0L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1999 | Toyota | RAV4 | 2.0L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1998 | Toyota | RAV4 | 2.0L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
