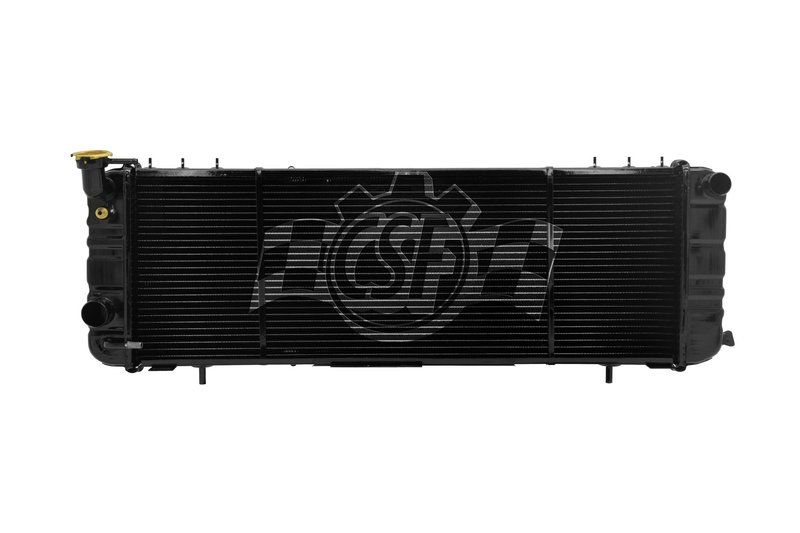

CSF 2670 Radiator
Overview of CSF 2 Row All Metal Radiator for Jeep Cherokee
The CSF 2 Row All Metal Radiator, part number 2670, is designed specifically for Jeep Cherokee models. This radiator features a durable all-metal construction with copper cores and brass tanks, ensuring reliable cooling performance for your vehicle.
- Core thickness: 1 1/4 inches
- Core width: 10 15/16 inches
- Core length: 31 inches
- Core material: Copper
- Tank material: Brass
- Inlet diameter: 1 1/4 inches (right side)
- Outlet diameter: 1 1/2 inches (left side)
- Cross flow design with 2 core rows
- Includes high-efficiency 7 1/2 inch oil cooler (concentric type)
- Cap not included (CSF cap number 4501 compatible)
Details on the 2 Row All Metal Product Line
The CSF 2 Row All Metal line focuses on rugged, durable radiators constructed entirely from metal components. This design enhances heat dissipation and longevity compared to plastic or composite alternatives. The radiator core and tanks are made from copper and brass, materials known for their thermal conductivity and corrosion resistance. This model also supports condenser mounting on the top bracket, suitable for Jeep Cherokee cooling system configurations.
Technical Description and Features
This radiator features a cross flow design with two rows of copper core tubes measuring 1 1/4 inches thick, 10 15/16 inches wide, and 31 inches long. The brass tanks provide structural integrity and resistance to wear. The inlet and outlet diameters are sized to match Jeep Cherokee cooling system specifications, with the inlet on the right side and the outlet on the left. The integrated 7 1/2 inch high-efficiency oil cooler improves engine oil temperature regulation, contributing to overall engine performance and longevity.
Common Applications and Problem Solving
- Replacement for leaking or damaged Jeep Cherokee radiators
- Improves cooling efficiency in overheating engine conditions
- Restores proper coolant flow with correct inlet and outlet sizing
- Supports vehicles requiring a durable all-metal radiator core
- Compatible with Jeep Cherokee models needing a cross flow radiator design
Installation Notes and Tips
Ensure compatibility with your Jeep Cherokee model before installation. The radiator does not include a cap; use CSF cap number 4501 or an equivalent. The condenser mounts on the top bracket, so verify mounting points and clearances. Properly bleed the cooling system after installation to avoid air pockets. Check hose connections for secure fit on the 1 1/4 inch inlet and 1 1/2 inch outlet.
Quality Assurance and Warranty
CSF radiators are manufactured with high-quality copper and brass materials to meet OEM standards. This radiator is free of hazardous materials and designed for durability in demanding automotive environments. Warranty information should be confirmed with the distributor or manufacturer, as it may vary by region.
| Brand | CSF |
| Part Number | 2670 |
| Position | 2 Row All Metal |
| Box Height (in) | 8 5/8 |
| Box Length (in) | 38 3/4 |
| Box Weight (lbs) | 16 |
| Box Width (in) | 16 1/16 |
| Cap Included | No |
| Core Length | 31 |
| Core Material | Copper |
| Core Thickness | 1 1/4 |
| Core Width | 10 15/16 |
| Csf Cap Number | 4501 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Right |
| Inlet Length (in) | 11 1/8 |
| Inlet Width (in) | 2 1/2 |
| Oil Cooler (in) | 7 1/2 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/2 Left |
| Outlet Length (in) | 11 1/8 |
| Outlet Width (in) | 2 1/2 |
| Radiator Core Row Quantity | 2 |
| Tank Material | Brass |
| Tech Note | Rugged ALL METAL model; Condenser mounts on top bracket, bumper side. |
This part fits 13 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; 2 Row All Metal |
| 2000 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; 2 Row All Metal |
| 2000 | Jeep | Cherokee | 2.5L | L4 | N/A | Use Small, 16 psi Cap; 2 Row All Metal |
| 1999 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Left Hand Drive; 2 Row All Metal |
| 1998 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Left Hand Drive; 2 Row All Metal |
| 1998 | Jeep | Cherokee | 2.5L | L4 | N/A | Use Small, 16 psi Cap; 2 Row All Metal |
| 1997 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; w/ Filler Neck; Left Hand Drive; 2 Row All Metal |
| 1996 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; w/ Filler Neck; Left Hand Drive; 2 Row All Metal |
| 1995 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; w/ Filler Neck; Left Hand Drive; 2 Row All Metal |
| 1994 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; w/ Filler Neck; Left Hand Drive; 2 Row All Metal |
| 1993 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; w/ Filler Neck; Left Hand Drive; 2 Row All Metal |
| 1992 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; w/ Filler Neck; Left Hand Drive; 2 Row All Metal |
| 1991 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; w/ Filler Neck; Left Hand Drive; 2 Row All Metal |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
