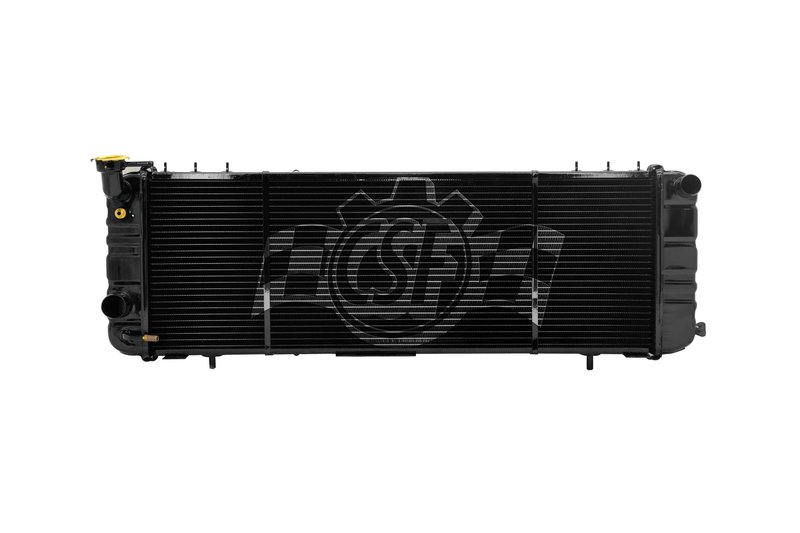

CSF 2671 Radiator
| Brand | CSF 2671 |
|---|---|
| Box Height (in) | 8 5/8 |
| Box Length (in) | 38 3/4 |
| Box Weight (lbs) | 19 |
| Box Width (in) | 16 1/16 |
| Cap Included | No |
| Core Length | 31 |
| Core Material | Copper |
| Core Thickness | 1 11/16 |
| Core Width | 10 15/16 |
| Csf Cap Number | 4501 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Right |
| Inlet Length (in) | 11 1/8 |
| Inlet Width (in) | 2 1/2 |
| Oil Cooler (in) | 7 1/2 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/2 Left |
| Outlet Length (in) | 11 1/8 |
| Outlet Width (in) | 2 1/2 |
| Radiator Core Row Quantity | 3 |
| Tank Material | Brass |
| Tech Note | Rugged ALL METAL Heavy Duty model; Condenser mounts on top bracket, bumper side. |
| Product line | 3 Row All Metal Heavy Duty |
| Fits | Jeep · 13 vehicles |
All-metal construction. Copper core and brass tanks for rugged cooling durability.
3-row design. Built for efficient heat dissipation in demanding conditions.
Cross-flow radiator. Engineered for steady coolant flow and cooling performance.
Cross-references APDI 8011193, OSC 1193 and Spectra Premium CU1193 for the same application. See all 8.
CSF 2671 Heavy Duty Radiator for Jeep Cherokee
Built for Jeep Cherokee cooling system service, the CSF 2671 is a 3-row all-metal radiator with a copper core and brass tanks. It is designed for drivers who need a direct-fit replacement with durable construction and verified cooling performance.
Key Features
- 3-row cross flow radiator design for increased cooling capacity
- Copper core with brass tanks for traditional all-metal durability
- Core dimensions: 31 in. length, 10 15/16 in. width, 1 11/16 in. thickness
- Inlet: 1 1/4 in. right side; outlet: 1 1/2 in. left side
- High-efficiency concentric-type oil cooler, 7 1/2 in.
- Rugged all-metal heavy duty construction
- Condenser mounts on top bracket, bumper side
Product Details
CSF’s 3 Row All Metal Heavy Duty line is built for demanding cooling applications where a stronger metal radiator construction is preferred. The CSF 2671 radiator is engineered and wind tunnel tested for cooling performance validation, and CSF manufactures a wide range of radiator models for many vehicle platforms. This part cross-references Spectra Premium CU1193 and OSC 1193 for the same application.
Compatible With Jeep Cherokee models from 1991-2001, including 1991-1997 Jeep Cherokee, 1998 Jeep Cherokee, 1998-1999 Jeep Cherokee, and 2000-2001 Jeep Cherokee. For 1991-1997 Jeep Cherokee, use a small 16 psi cap with filler neck and left hand drive configuration. For 1998-2001 Jeep Cherokee, use a small 16 psi cap; select applications also note left hand drive.
Common Cooling Issues This Radiator Can Address
- Overheating caused by a worn or inefficient radiator core
- Coolant temperature instability during stop-and-go driving
- Reduced cooling performance from aging plastic-tank radiator designs
- Leaks or corrosion in an original radiator assembly
- Cooling system strain in a Jeep Cherokee used for daily driving or heavier service
Installation Notes and Tips
Verify inlet and outlet orientation before installation: 1 1/4 in. right inlet and 1 1/2 in. left outlet. Confirm cap requirements for the specific Cherokee year and configuration, since some applications require a small 16 psi cap and 1991-1997 models note a filler neck. Check condenser mounting location and surrounding clearance before final fitment. This radiator does not include a cap.
Quality Assurance
CSF manufactures radiators to high-performance standards in ISO/TSO-certified facilities and validates cooling performance through laboratory testing. The brand has supplied radiators worldwide for decades and produces a broad catalog of applications for leading vehicle platforms.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; 3 Row All Metal Heavy Duty |
| 2000 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; 3 Row All Metal Heavy Duty |
| 2000 | Jeep | Cherokee | 2.5L | L4 | N/A | Use Small, 16 psi Cap; 3 Row All Metal Heavy Duty |
| 1999 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Left Hand Drive; 3 Row All Metal Heavy Duty |
| 1998 | Jeep | Cherokee | 2.5L | L4 | N/A | Use Small, 16 psi Cap; 3 Row All Metal Heavy Duty |
| 1998 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Left Hand Drive; 3 Row All Metal Heavy Duty |
| 1997 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; w/ Filler Neck; Left Hand Drive; 3 Row All Metal Heavy Duty |
| 1996 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; w/ Filler Neck; Left Hand Drive; 3 Row All Metal Heavy Duty |
| 1995 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; w/ Filler Neck; Left Hand Drive; 3 Row All Metal Heavy Duty |
| 1994 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; w/ Filler Neck; Left Hand Drive; 3 Row All Metal Heavy Duty |
| 1993 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; w/ Filler Neck; Left Hand Drive; 3 Row All Metal Heavy Duty |
| 1992 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; w/ Filler Neck; Left Hand Drive; 3 Row All Metal Heavy Duty |
| 1991 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; w/ Filler Neck; Left Hand Drive; 3 Row All Metal Heavy Duty |
