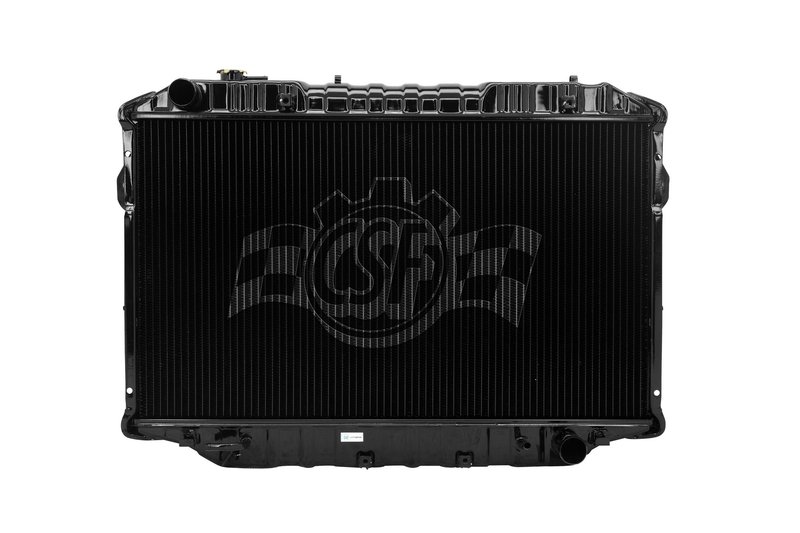

CSF 2709 Radiator
| Brand | CSF 2709 |
|---|---|
| Box Height (in) | 6 14/16 |
| Box Length (in) | 33 5/8 |
| Box Weight (lbs) | 29 |
| Box Width (in) | 24 1/2 |
| Cap Included | No |
| Core Length | 16 3/4 |
| Core Material | Copper |
| Core Thickness | 1 11/16 |
| Core Width | 28 11/16 |
| Csf Cap Number | 4502 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Left |
| Inlet Length (in) | 29 1/8 |
| Inlet Width (in) | 2 1/2 |
| Oil Cooler (in) | 15 3/8 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/2 Right |
| Outlet Length (in) | 29 1/8 |
| Outlet Width (in) | 2 1/2 |
| Radiator Core Row Quantity | 3 |
| Tank Material | Brass |
| Tech Note | Rugged ALL METAL model. |
| Product line | 3 Row All Metal |
| Fits | Toyota · 5 vehicles |
All-metal construction. Copper core and brass tanks for rugged cooling performance.
Three-row core. Built for efficient heat transfer in demanding cooling systems.
Wind-tunnel tested. Validated for cooling performance in lab testing.
Cross-references Champion Spark Plug 13, 16400 - 61140 and 8010013 for the same application. See all 5.
CSF 2709 3 Row All Metal Radiator
The CSF 2709 is a 3-row all metal radiator built for the 1988-1992 Toyota Land Cruiser. It uses a copper core with brass tanks and a down-flow design to match the listed application, with left-side inlet and right-side outlet dimensions specified for fitment. This CSF radiator is a direct replacement choice for Toyota Land Cruiser cooling system service where an all-metal construction is preferred.
Key Features
- Part number 2709 from CSF
- 3-row all metal construction
- Copper core and brass tank material
- Down-flow radiator design
- Core dimensions: 28 11/16 in. wide, 16 3/4 in. long, 1 11/16 in. thick
- Inlet diameter: 1 1/2 in. left; outlet diameter: 1 1/2 in. right
- Includes a high-efficiency concentric type oil cooler measuring 15 3/8 in.
- Cap not included; CSF cap number 4502 is listed
Product Details
CSF builds radiators to performance-focused standards and validates cooling performance through laboratory wind tunnel testing. The 2709 radiator is part of CSF’s 3 Row All Metal line, which emphasizes durable metal construction for demanding cooling environments. For 1988-1992 Toyota Land Cruiser applications, this radiator provides the listed core size, inlet and outlet layout, and integrated oil cooler configuration needed for a proper replacement selection. This part number 2709 is also referenced in cross applications such as Champion Spark Plug 13 for the same vehicle fitment.
Common Cooling Issues This Radiator Can Address
- Leaking or corroded radiator tanks
- Restricted coolant flow from an aging core
- Overheating caused by reduced heat transfer
- Damaged inlet or outlet connections
- Cooling system wear in a high-mileage Toyota Land Cruiser
Installation Notes
Fits 1988-1992 Toyota Land Cruiser, N/A. Use a Mini 13 psi cap for proper fitment, as noted in the application data. Verify core dimensions, inlet and outlet orientation, and oil cooler routing before installation. Confirm that the radiator cap specification matches the cooling system requirements for the vehicle.
Quality Assurance
CSF states that its factories are ISO/TSO certified and that its radiators are engineered for performance validation before worldwide distribution. The 2709 is built as a rugged all metal model for consistent cooling-system service in the listed Toyota Land Cruiser applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1992 | Toyota | Land Cruiser | 4.0L | L6 | N/A | Use Mini 13 psi Cap for proper fitment.; 3 Row All Metal |
| 1991 | Toyota | Land Cruiser | 4.0L | L6 | N/A | Use Mini 13 psi Cap for proper fitment.; 3 Row All Metal |
| 1990 | Toyota | Land Cruiser | 4.0L | L6 | N/A | Use Mini 13 psi Cap for proper fitment.; 3 Row All Metal |
| 1989 | Toyota | Land Cruiser | 4.0L | L6 | N/A | Use Mini 13 psi Cap for proper fitment.; 3 Row All Metal |
| 1988 | Toyota | Land Cruiser | 4.0L | L6 | N/A | Use Mini 13 psi Cap for proper fitment.; 3 Row All Metal |
