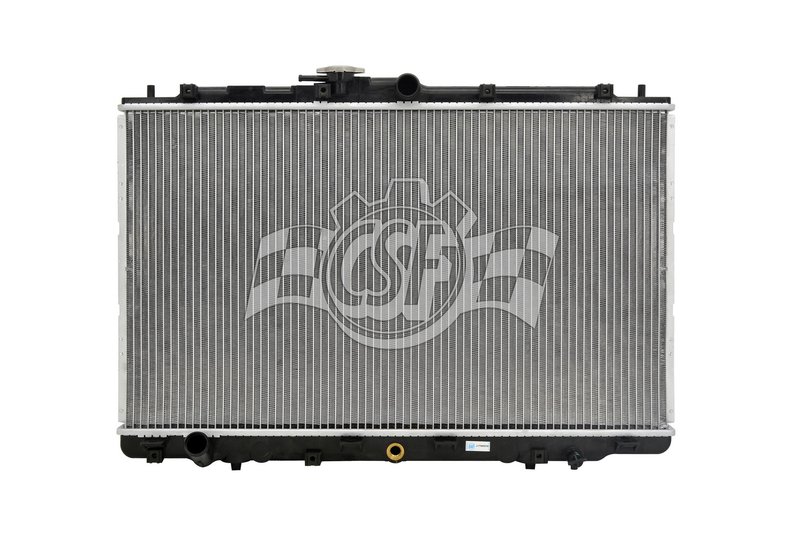

CSF 2719 Radiator
Overview of CSF 2719 Radiator for Acura CL and TL
The CSF 2719 radiator is designed specifically for Acura CL and TL models, providing reliable engine cooling with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in down flow applications.
- Core thickness: 5/8 inch
- Core width: 28 1/4 inches
- Core length: 16 3/4 inches
- Aluminum core material with plastic tanks
- Inlet diameter: 1 1/4 inch center position
- Outlet diameter: 1 1/4 inch left position
- Down flow radiator type
- Includes radiator cap (CSF cap number 4514)
- Single core row design
Detailed Product Description
The CSF 2719 radiator is engineered with an aluminum core measuring 5/8 inch thick, 28 1/4 inches wide, and 16 3/4 inches long, providing a balance of lightweight construction and effective heat transfer. The plastic tanks are designed in an OEM style, ensuring compatibility and durability. This radiator features a down flow design, which directs coolant downward through the core for consistent engine temperature regulation. The inlet and outlet diameters are both 1 1/4 inches, positioned center and left respectively, matching factory specifications for Acura CL and TL vehicles. The included radiator cap (CSF cap number 4514) maintains proper system pressure and coolant flow.
About the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core product line combines lightweight aluminum cores with durable plastic tanks to provide a cost-effective and reliable cooling solution. This line is designed to meet OEM standards for fit and function, making it suitable for vehicles like the Acura CL and TL that require precise cooling system components. The single-row core design supports efficient heat dissipation while maintaining a compact profile.
Common Applications and Issues Addressed
- Replacement for leaking or cracked radiators in Acura CL and TL models
- Resolves overheating caused by clogged or damaged radiator cores
- Addresses coolant leaks from plastic tanks or core joints
- Improves cooling efficiency in vehicles with aging or underperforming radiators
- Restores proper coolant flow and system pressure with included radiator cap
Installation Notes and Tips
When installing the CSF 2719 radiator, ensure all hose connections match the 1 1/4 inch inlet and outlet diameters. Verify the down flow orientation aligns with the vehicle’s cooling system layout. The radiator includes a sensor port on the bottom tank for compatibility with factory sensors. It is recommended to flush the cooling system before installation to prevent contamination. Use the included radiator cap (CSF cap number 4514) to maintain proper pressure and avoid coolant loss.
Quality Assurance and Warranty
CSF radiators are manufactured to meet OEM specifications, using high-quality aluminum cores and durable plastic tanks. The CSF 2719 radiator is designed without hazardous materials and includes a radiator cap for system integrity. While specific warranty details are not provided, CSF products typically undergo rigorous quality control to ensure reliable performance in Acura CL and TL vehicles.
| Brand | CSF |
| Part Number | 2719 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Core Thickness | 5/8 |
| Core Width | 28 1/4 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 16 3/4 |
| Inlet Diameter | 1 1/4 centre |
| Outlet Diameter | 1 1/4 left |
| Down Flow Or Cross Flow Type | Down flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | Yes |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 30 7/8 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 23 9/16 |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 28 3/4 |
| Inlet Width (in) | 1 1/16 |
| Outlet Length (in) | 28 3/4 |
| Outlet Width (in) | 1 5/8 |
| Tech Note | O.e.m. style plastic tanks & aluminum core;with sensor port on bo |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2003 | Acura | CL | Coupe | 3.2L | V6 | N/A | Use Micro, 16 psi Cap; OE Style Sensor Port Design; w/ Sensor Port On Bottom Tank; 1 Row Plastic Tank Aluminum Core | |
| 2003 | Acura | TL | Base | 3.2L | V6 | N/A | Use Micro, 16 psi Cap; OE Style Sensor Port Design; w/ Sensor Port On Bottom Tank; 1 Row Plastic Tank Aluminum Core | |
| 2002 | Acura | CL | Coupe | 3.2L | V6 | N/A | Use Micro, 16 psi Cap; OE Style Sensor Port Design; w/ Sensor Port On Bottom Tank; 1 Row Plastic Tank Aluminum Core | |
| 2002 | Acura | TL | Base | 3.2L | V6 | N/A | Use Micro, 16 psi Cap; OE Style Sensor Port Design; w/ Sensor Port On Bottom Tank; 1 Row Plastic Tank Aluminum Core | |
| 2001 | Acura | CL | Coupe | 3.2L | V6 | N/A | Use Micro, 16 psi Cap; OE Style Sensor Port Design; w/ Sensor Port On Bottom Tank; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
