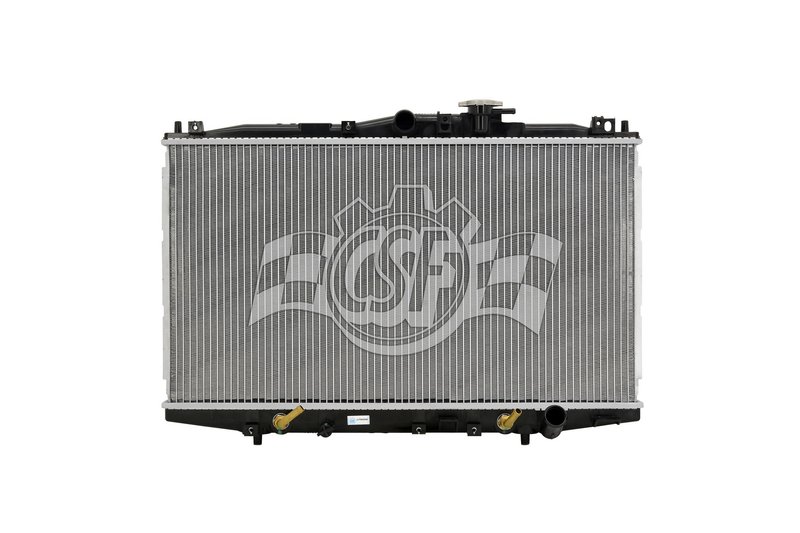

CSF 2722 Radiator
| Brand | CSF 2722 |
|---|---|
| Box Height (in) | 5 4/16 |
| Box Length (in) | 29 1/4 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 21 9/16 |
| Cap Included | Yes |
| Core Length | 14 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 26 11/16 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Centre |
| Inlet Length (in) | 27 1/4 |
| Inlet Width (in) | 1 1/16 |
| Oil Cooler (in) | 12 13/16 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/4 right |
| Outlet Length (in) | 27 1/4 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Honda · 5 vehicles |
OE-style construction. Plastic tanks and an aluminum core mirror the original design.
Wind tunnel tested. Validated for cooling performance in lab testing.
Down-flow radiator with a single-row core for efficient heat transfer.
Cross-references APDI 8012148, APDI 8012203 and Autolite 2546 for the same application. See all 21.
OE-Style Cooling Replacement
This CSF radiator is built for 1998-2002 Honda Accord applications with an OE-style plastic tank and aluminum core design. It is engineered for direct-fit cooling system service where dependable heat transfer and factory-style construction matter.
CSF 2722 is a down-flow radiator with a 1-row core, 5/8-inch core thickness, and a 26 11/16-inch core width. It includes a cap and uses a center 1 1/4-inch inlet with a right-side 1 1/4-inch outlet for the listed Honda Accord fitment.
Key Features
- Fits 1998-2002 Honda Accord, N/A
- CSF part number 2722
- 1-row down-flow radiator construction
- Aluminum core with plastic tanks
- Core thickness: 5/8 inch
- Cap included; CSF cap number 4514
- Center inlet and right-side outlet configuration
- High-efficiency concentric-type oil cooler integrated into the unit
Product Details
The CSF 2722 radiator is part of CSF’s 1 Row Plastic Tank Aluminum Core line, a product line focused on OE-style radiator construction for common passenger vehicle applications. For the Honda Accord, this design supports factory-style cooling system service with the correct tank material, core material, and flow layout. CSF manufactures a wide range of radiator models and validates cooling performance through laboratory wind tunnel testing, with production backed by ISO/TSO-certified factories.
This part cross-references Spectra Premium CU2148 and TYC 2203 for the same application. The CSF 2722 is a direct replacement choice for Honda Accord radiator service where the original-style layout and dimensions are required.
Common Problems This Radiator Addresses
- Overheating caused by a restricted or aging radiator core
- Coolant leaks from cracked plastic tanks or worn seams
- Reduced cooling efficiency from internal corrosion or blockage
- Temperature instability during stop-and-go driving
- Cooling system service needs on a 1998-2002 Honda Accord
Installation Notes
- Verify inlet and outlet placement before installation: center inlet, right-side outlet.
- Confirm the vehicle uses the listed OE-style radiator configuration for the Accord application.
- Inspect hoses, clamps, and the cooling fan system during replacement.
- Use the specified 16 psi micro cap noted for the application when required by the vehicle setup.
- Flush the cooling system before installing the new radiator to remove debris and old coolant.
Quality Assurance
CSF radiators are manufactured to high-performance standards and built in ISO/TSO-certified facilities. The brand’s radiator designs are validated for cooling performance and supported by decades of global aftermarket supply experience.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2002 | Honda | Accord | 2.3L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Denso/Valeo; 1 Row Plastic Tank Aluminum Core |
| 2001 | Honda | Accord | 2.3L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Denso/Valeo; 1 Row Plastic Tank Aluminum Core |
| 2000 | Honda | Accord | 2.3L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Denso/Valeo; 1 Row Plastic Tank Aluminum Core |
| 1999 | Honda | Accord | 2.3L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Denso/Valeo; 1 Row Plastic Tank Aluminum Core |
| 1998 | Honda | Accord | 2.3L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Denso/Valeo; 1 Row Plastic Tank Aluminum Core |
