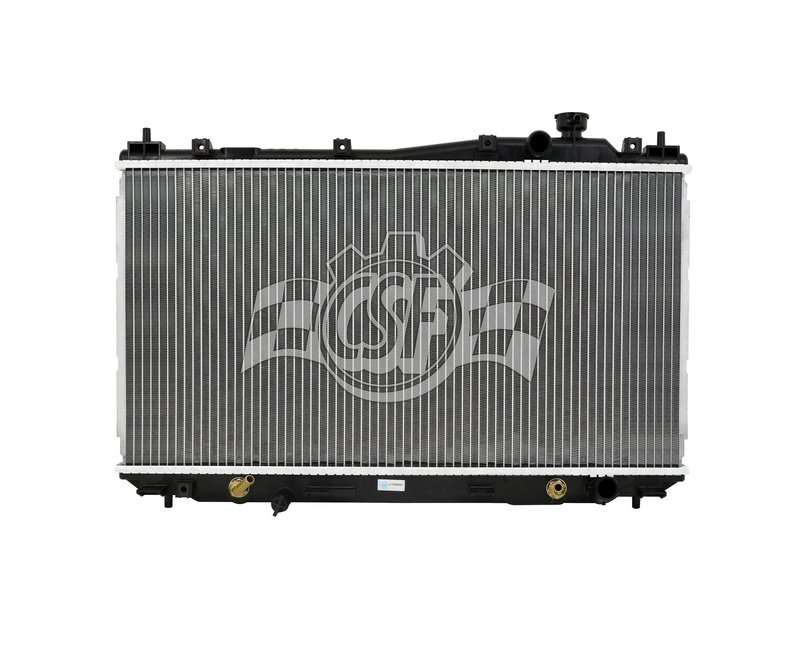

CSF 2800 Radiator
Overview of CSF 2800 Radiator for Honda Civic
The CSF 2800 radiator is designed specifically for Honda Civic models, providing reliable engine cooling with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in a down flow configuration.
- Core thickness: 5/8 inch
- Core width: 25 7/8 inches
- Core length: 13 3/4 inches
- Aluminum core with plastic tanks
- Inlet and outlet diameter: 1 1/8 inches, right side
- Down flow radiator type with 1 core row
- Includes high-efficiency concentric oil cooler (14 3/4 inches)
- Cap not included (CSF cap number 4513 compatible)
About the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to balance durability and weight. This product line is engineered to meet the cooling demands of vehicles like the Honda Civic by providing effective heat transfer through a single-row core design. The plastic tanks help reduce corrosion risks while maintaining structural integrity under typical operating conditions.
Detailed Product Description
The CSF 2800 radiator features a 5/8 inch thick aluminum core measuring 25 7/8 inches wide and 13 3/4 inches long, designed for optimal cooling performance in Honda Civic vehicles. The down flow design ensures coolant flows vertically through the core, enhancing heat dissipation. Both the inlet and outlet are positioned on the right side with a diameter of 1 1/8 inches, facilitating straightforward hose connections. The radiator also includes a high-efficiency concentric oil cooler measuring 14 3/4 inches, which supports engine oil temperature regulation. While the radiator does not come with a cap, it is compatible with CSF cap number 4513.
Common Applications and Issues Addressed
- Replacement for leaking or damaged Honda Civic radiators
- Improves engine cooling efficiency in Civic models
- Resolves overheating caused by clogged or corroded cores
- Addresses coolant flow issues due to faulty radiator tanks
- Supports oil temperature control with integrated oil cooler
Installation Notes and Tips
- Compatible with Honda Civic models requiring a 1 row radiator with plastic tanks and aluminum core
- Ensure proper alignment of inlet and outlet hoses on the right side
- Use CSF cap number 4513 or equivalent for proper sealing
- Inspect and flush the cooling system before installation to prevent contamination
- Verify radiator mounting points match vehicle specifications
Quality Assurance and Warranty
The CSF 2800 radiator is manufactured to meet OEM standards, featuring corrosion-resistant plastic tanks and a durable aluminum core. This radiator is free from hazardous materials and designed for long-term reliability. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
| Brand | CSF |
| Part Number | 2800 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 28 7/8 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 20 13/16 |
| Cap Included | No |
| Core Length | 13 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 25 7/8 |
| Csf Cap Number | 4513 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/8 Right |
| Inlet Length (in) | 26 7/16 |
| Inlet Width (in) | 1 1/16 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/8 Right |
| Outlet Length (in) | 26 7/16 |
| Outlet Width (in) | 1 5/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2005 | Honda | Civic | Coupe | 1.7L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2005 | Honda | Civic | Sedan | 1.7L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2004 | Honda | Civic | Coupe | 1.7L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2004 | Honda | Civic | Sedan | 1.7L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2003 | Honda | Civic | Coupe | 1.7L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2003 | Honda | Civic | Sedan | 1.7L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2002 | Honda | Civic | 1.7L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core | |
| 2001 | Honda | Civic | 1.7L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Denso/Toyo; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
