CSF 2813 RadiatorOE Quality 60-Day Returns
Part #: 2813

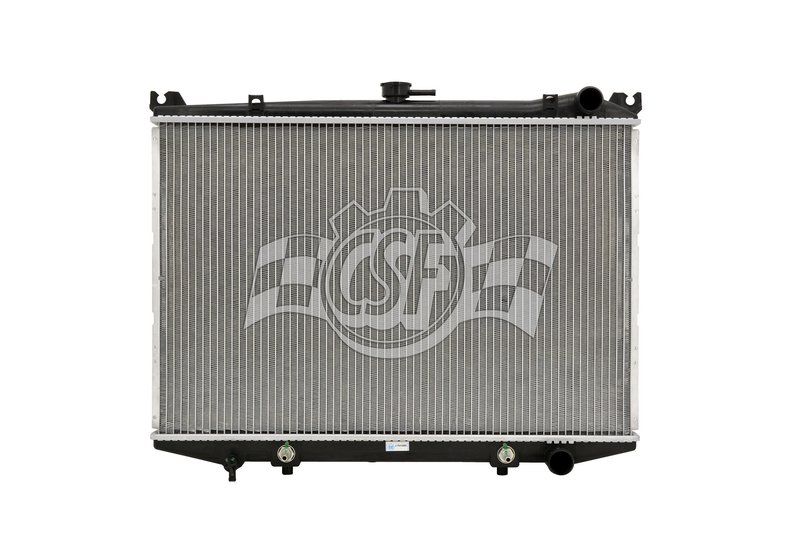

CSF 2813 Radiator

1 Row Plastic Tank Aluminum Core
⚙️ 23 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$108.60Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦1 Row Plastic Tank Aluminum Core
🚗Fitment: Nissan, Pickup, Pathfinder, and D21
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Radiator options

Overview of CSF 2813 Radiator for Nissan Vehicles

The CSF 2813 radiator is designed specifically for Nissan D21, Pathfinder, and Pickup models. Featuring a durable aluminum core with plastic tanks, this radiator offers reliable cooling performance tailored to your vehicle's needs.

  • Core thickness: 5/8 inch
  • Core width: 25 1/2 inches
  • Core length: 16 3/4 inches
  • Aluminum core with plastic tanks
  • Down flow design with 1 row core
  • Inlet diameter: 1 3/8 inches (right side)
  • Outlet diameter: 1 7/16 inches (right side)
  • Includes high-efficiency concentric oil cooler (11 13/16 inches)
  • OEM style plastic tanks and aluminum core construction

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core line combines lightweight plastic tanks with a robust aluminum core to provide efficient heat dissipation and corrosion resistance. This product line is engineered to meet OEM specifications, ensuring compatibility and performance for Nissan D21, Pathfinder, and Pickup models. The single-row core design supports effective cooling in a compact form factor.

Technical Description and Specifications

This radiator features a 5/8 inch thick aluminum core measuring 25 1/2 inches wide and 16 3/4 inches long, optimized for down flow cooling systems. The plastic tanks are designed to withstand typical operating conditions while reducing overall weight. The inlet and outlet are positioned on the right side with diameters of 1 3/8 inches and 1 7/16 inches respectively, facilitating straightforward hose connections. Additionally, the integrated oil cooler enhances engine cooling efficiency, supporting vehicle longevity.

Common Applications and Problem Solving

  • Replaces leaking or cracked radiators in Nissan D21, Pathfinder, and Pickup
  • Addresses overheating issues due to clogged or damaged cores
  • Restores proper coolant flow in down flow cooling systems
  • Improves engine temperature regulation with integrated oil cooler
  • Suitable for vehicles requiring OEM style plastic tank and aluminum core radiators

Installation Notes and Tips

Ensure compatibility with Nissan D21, Pathfinder, or Pickup models before installation. Verify inlet and outlet hose diameters match existing connections (1 3/8 inch inlet, 1 7/16 inch outlet on the right side). The radiator does not include a cap; use the CSF cap number 4502 if replacement is needed. Handle plastic tanks carefully to avoid damage during installation. Properly bleed the cooling system after installation to prevent air pockets.

Quality Assurance and Warranty

The CSF 2813 radiator is manufactured to meet OEM standards with a focus on durability and performance. It is constructed without hazardous materials and includes a high-efficiency oil cooler for enhanced cooling. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.

BrandCSF
Part Number2813
Position1 Row Plastic Tank Aluminum Core
Box Height (in)5 1/16
Box Length (in)28 11/16
Box Weight (lbs)8
Box Width (in)24 1/8
Cap IncludedNo
Core Length16 3/4
Core MaterialAluminum
Core Thickness5/8
Core Width25 1/2
Csf Cap Number4502
Down Flow Or Cross Flow TypeDown Flow
Hazardous MaterialNo
Inlet Diameter1 3/8 Right
Inlet Length (in)26 1/16
Inlet Width (in)1 5/8
Oil Cooler (in)11 13/16 (high-effeciency Concentric Type)
Outlet Diameter1 7/16 Right
Outlet Length (in)26 1/16
Outlet Width (in)1 5/8
Radiator Core Row Quantity1
Tank MaterialPlastic
Tech NoteO.E.M. style Plastic tanks & Aluminum core.

This part fits 23 vehicles. Search below:

YearMakeModelLitersCylindersFuel TypePositionNotes
1997NissanPickup2.4LL4GASN/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1996NissanPickup2.4LL4GASN/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1995NissanPathfinder3.0LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1995NissanPickup2.4LL4GASN/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1994NissanD212.4LL4GASN/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1994NissanPathfinder3.0LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1993NissanD212.4LL4GASN/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1993NissanPathfinder3.0LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1992NissanD212.4LL4GASN/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1992NissanPathfinder3.0LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1991NissanD212.4LL4GASN/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1991NissanPathfinder3.0LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1990NissanD212.4LL4GASN/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1990NissanPathfinder3.0LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1989NissanD212.4LL4GASN/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1989NissanPathfinder3.0LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1988NissanD212.4LL4GASN/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1988NissanPathfinder3.0LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1988NissanPathfinder2.4LL4GASN/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1987NissanD212.4LL4GASN/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1987NissanPathfinder2.4LL4GASN/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1987NissanPathfinder3.0LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core
1986NissanD212.4LL4GASN/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

14521400 - 01G1021400 - 01G1121400 - 01G1221410 - 57G0021410 - 73P0021450 - 01G1021450 - 01G1121460 - 57G0022380101458010314CU314NI3010124NI3010125NI3010127

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
