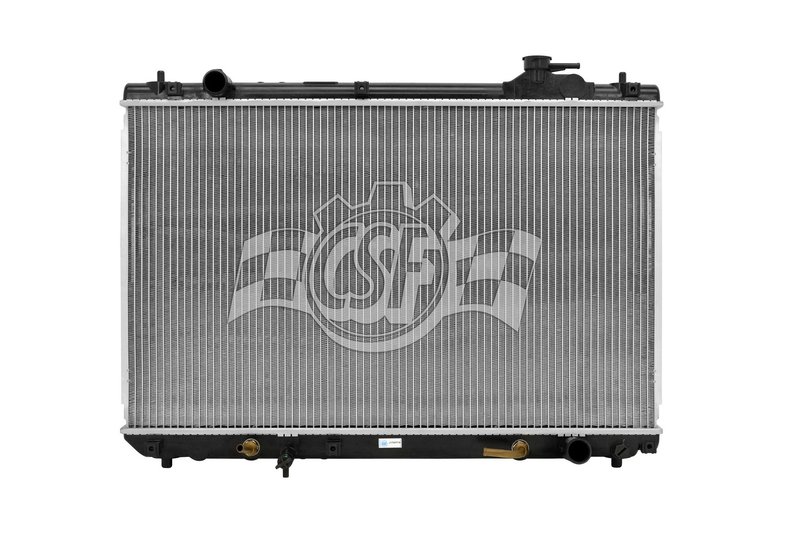

CSF 2822 Radiator
Overview of CSF 2822 Radiator for Toyota Highlander
The CSF 2822 radiator is designed specifically for Toyota Highlander models, providing reliable engine cooling with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in a down flow configuration.
- Core thickness: 7/8 inch
- Core width: 29 1/16 inches
- Core length: 17 13/16 inches
- Aluminum core with plastic tanks
- Inlet diameter: 1 3/8 inches (left side)
- Outlet diameter: 1 5/16 inches (right side)
- Down flow radiator type
- One core row
- Includes high-efficiency concentric oil cooler (14 3/4 inches)
- Cap not included (CSF cap number 4513 compatible)
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to balance durability and weight. This product line is engineered to meet the cooling demands of vehicles like the Toyota Highlander, offering a single-row core thickness of 7/8 inch for effective heat transfer while maintaining a compact design suitable for down flow radiator setups.
Product Description and Specifications
The CSF 2822 radiator features a 1-row aluminum core measuring 29 1/16 inches wide by 17 13/16 inches long, with a core thickness of 7/8 inch. The plastic tanks are designed to OEM specifications, ensuring compatibility and ease of installation. The radiator’s inlet and outlet diameters are 1 3/8 inches (left) and 1 5/16 inches (right), respectively, supporting proper coolant flow. This down flow radiator includes a high-efficiency concentric oil cooler measuring 14 3/4 inches, enhancing engine oil cooling performance. The radiator does not include a cap but is compatible with CSF cap number 4513.
Common Applications and Issues Addressed
- Replacement for leaking or damaged radiator in Toyota Highlander
- Resolves overheating caused by inefficient cooling cores
- Addresses coolant leaks from cracked plastic tanks
- Improves engine oil cooling with integrated oil cooler
- Suitable for restoring OEM cooling system performance
Installation Notes and Tips
When installing the CSF 2822 radiator, ensure the radiator cap is compatible (CSF cap number 4513 recommended). Verify inlet and outlet hose connections match the specified diameters for proper fitment. The down flow design requires correct orientation to maintain coolant flow direction. Inspect mounting points and brackets for secure installation. Bleed the cooling system thoroughly after installation to prevent air pockets.
Quality Assurance and Warranty
CSF radiators are manufactured to meet OEM standards, using high-quality aluminum cores and durable plastic tanks. This radiator is free of hazardous materials and designed for long-term reliability. While specific warranty details are not provided, CSF products typically come with manufacturer-backed coverage to ensure performance and customer satisfaction.
| Brand | CSF |
| Part Number | 2822 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 31 5/8 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 24 5/16 |
| Cap Included | No |
| Core Length | 17 13/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 29 1/16 |
| Csf Cap Number | 4513 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Left |
| Inlet Length (in) | 29 1/2 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 5/16 Right |
| Outlet Length (in) | 29 1/2 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Toyota | Highlander | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2006 | Toyota | Highlander | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2005 | Toyota | Highlander | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2004 | Toyota | Highlander | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2003 | Toyota | Highlander | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2002 | Toyota | Highlander | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2001 | Toyota | Highlander | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
