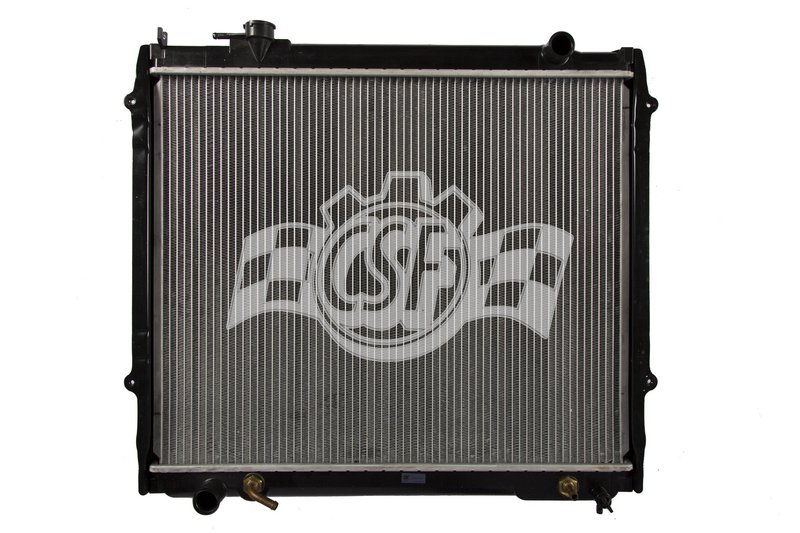

CSF 2826 Radiator

Brand CSF 2826
Box Height (in) 6
Box Length (in) 31
Box Weight (lbs) 19
Box Width (in) 31
Cap Included No
Core Length 20 11/16
Core Material Aluminum
Core Thickness 15/16
Core Width 25 1/4
Csf Cap Number 4514
Down Flow Or Cross Flow Type Down Flow
Hazardous Material No
Inlet Diameter 1 3/8 Right
Inlet Length (in) 25 9/16
Inlet Width (in) 1 3/4
Oil Cooler (in) 16 3/4 (high-effeciency Concentric Type)
Outlet Diameter 1 3/8 Left
Outlet Length (in) 25 9/16
Outlet Width (in) 1 3/4
Radiator Core Row Quantity 1
Tank Material Plastic
Tech Note O.E.M style plastic tanks & Aluminum core.
Fits Toyota · 40 vehicles

OE-style replacement. Plastic tanks and an aluminum core match the original design.

Down-flow design. Promotes efficient coolant movement through the radiator.

Wind tunnel tested. Validated for cooling performance in lab testing.

Cross-references APDI 8011774, DENSO Auto Parts 221-3136 and OSC 1774 for the same application. See all 9.

$162.03Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $162.03
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

CSF 2826 Radiator for Tacoma

The CSF 2826 is an OE-style radiator built for 1995-2004 Toyota Tacoma applications. It uses a 1-row aluminum core with plastic tanks to match the original cooling system layout while maintaining the dimensions and hose connections needed for direct replacement service.

Key Features

  • Part number: CSF 2826
  • 1-row down-flow radiator design
  • Aluminum core with plastic tanks
  • Core size: 20 11/16 in. length, 25 1/4 in. width, 15/16 in. thickness
  • Inlet diameter: 1 3/8 in., right side
  • Outlet diameter: 1 3/8 in., left side
  • OE-style plastic tank and aluminum core construction
  • Built by CSF, a radiator manufacturer with ISO/TSO-certified factories and wind-tunnel-tested cooling validation methods

Product Details

CSF 2826 is designed for Toyota Tacoma cooling system replacement where an OE-style plastic tank and aluminum core radiator is required. The radiator follows a down-flow layout and includes a high-efficiency concentric-type oil cooler measuring 16 3/4 in., helping preserve factory-style cooling system architecture. This radiator is listed for 1995-2004 Toyota Tacoma models and is a direct-fit solution for owners searching for a Toyota Tacoma radiator replacement, CSF 2826 radiator, or OE-style Tacoma cooling system component.

This part cross-references APDI 8011774 and Spectra Premium CU1774 for the same application.

What It Helps Address

  • Coolant leaks from a damaged or aging radiator tank
  • Overheating caused by restricted or inefficient heat transfer
  • Cracked plastic tanks or weakened core seams
  • Cooling performance loss from corrosion or internal blockage
  • Replacement needs after impact or front-end damage

Installation Notes and Tips

Compatible With 1995-2004 Toyota Tacoma, N/A. Verify hose routing, inlet and outlet orientation, and radiator dimensions before installation. The listed inlet is on the right side and the outlet is on the left side, so matching the original configuration is important for proper fitment. Use the correct 13 psi Mini cap noted for this application when required by the vehicle setup.

Quality Assurance

CSF manufactures radiators in ISO/TSO-certified facilities and validates cooling performance through laboratory testing. The brand has supplied radiators worldwide for decades and offers a broad catalog covering many vehicle applications, including Toyota Tacoma cooling system replacements such as CSF 2826.

Related reading

This part fits 40 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypeTransmissionLitersCylindersPositionNotes
2004ToyotaTacoma—4WDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2004ToyotaTacomaBaseRWDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2004ToyotaTacoma—4WDManual2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2004ToyotaTacomaS-RunnerRWDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2003ToyotaTacomaS-RunnerRWDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2003ToyotaTacomaDLXRWDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2003ToyotaTacoma—4WDManual2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2003ToyotaTacoma—4WDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2002ToyotaTacomaDLXRWDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2002ToyotaTacoma—4WDManual2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2002ToyotaTacoma—4WDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2002ToyotaTacomaS-RunnerRWDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2001ToyotaTacomaDLXRWDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2001ToyotaTacoma—4WDManual2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2001ToyotaTacoma—4WDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2001ToyotaTacomaS-RunnerRWDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2000ToyotaTacomaDLXRWD—3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2000ToyotaTacomaDLXRWD—2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2000ToyotaTacoma—4WDManual2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
2000ToyotaTacoma—4WDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1999ToyotaTacomaDLXRWD—3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1999ToyotaTacoma—4WDManual2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1999ToyotaTacomaDLXRWD—2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1999ToyotaTacoma—4WDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1998ToyotaTacomaDLXRWD—3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1998ToyotaTacoma—4WDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1998ToyotaTacomaDLXRWD—2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1998ToyotaTacoma—4WDManual2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1997ToyotaTacoma—4WDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1997ToyotaTacoma—4WDManual2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1997ToyotaTacoma—RWD—2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1997ToyotaTacomaDLXRWD—3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1996ToyotaTacoma—4WDManual2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1996ToyotaTacoma—RWD—2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1996ToyotaTacoma—4WDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1996ToyotaTacomaDLXRWD—3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1995ToyotaTacoma—4WDManual2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1995ToyotaTacoma—4WDManual3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1995ToyotaTacoma—RWD—2.7LL4N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
1995ToyotaTacomaDLXRWD—3.4LV6N/AOE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core (20 11/16" core)
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8011774DENSO Auto Parts — 221-3136OSC — 1774OSC — 1985Spectra Premium — CU177416410 - 0C03016410 - 0C03116410 - 07060TO3010178
