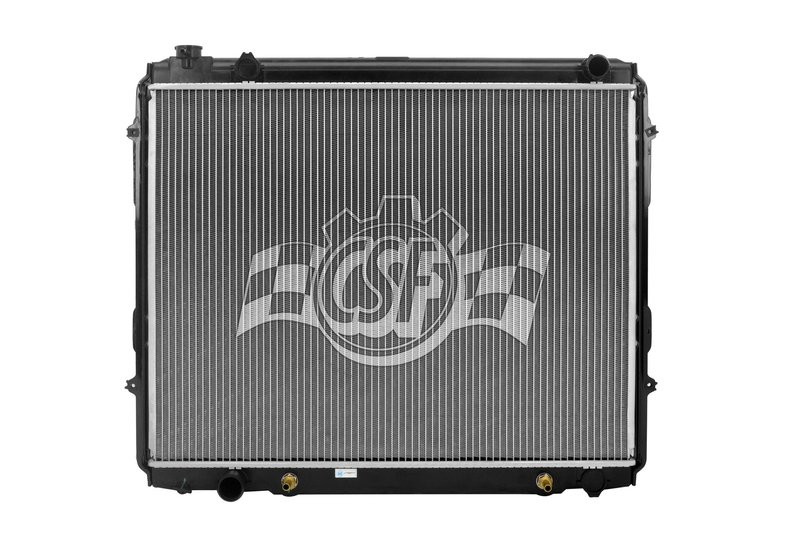

CSF 2830 Radiator
| Brand | CSF 2830 |
|---|---|
| Box Height (in) | 6 1/16 |
| Box Length (in) | 28 7/8 |
| Box Weight (lbs) | 17 |
| Box Width (in) | 33 |
| Cap Included | No |
| Core Length | 21 5/8 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 27 1/2 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 5/16 Right |
| Inlet Length (in) | 28 |
| Inlet Width (in) | 1 15/16 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/2 Left |
| Outlet Length (in) | 28 |
| Outlet Width (in) | 1 15/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Fits | Toyota · 7 vehicles |
OE-style design. Plastic tanks and an aluminum core for a familiar replacement fit.
Wind tunnel tested. Cooling performance is validated in lab testing.
1-row construction. A down-flow radiator built for efficient cooling.
Cross-references Anchor 2320, APDI 8012320 and DENSO Auto Parts 221-0516 for the same application. See all 9.
CSF 2830 Radiator for Toyota Tundra
CSF 2830 is an OE-style radiator built with a plastic tank and aluminum core for 2000-2006 Toyota Tundra applications. It is designed for direct replacement service where the original cooling system needs a radiator with the correct inlet, outlet, and down-flow layout.
The CSF 1 Row Plastic Tank Aluminum Core line focuses on factory-style fit and cooling performance validation. CSF manufactures a wide range of radiator models for vehicle applications, and this radiator reflects that approach with a design intended to match the original equipment configuration.
Key Features
- Part number: CSF 2830
- Fits 2000-2006 Toyota Tundra
- OE-style plastic tank and aluminum core construction
- 1-row core design
- Down-flow radiator layout
- Core thickness: 1 1/4 in.
- Core width: 27 1/2 in.
- Core length: 21 5/8 in.
- Inlet diameter: 1 5/16 in., right side
- Outlet diameter: 1 1/2 in., left side
- Oil cooler: 14 3/4 in. high-efficiency concentric type
- Cap not included
Detailed Description
CSF 2830 is a replacement radiator for Toyota Tundra trucks from 2000 through 2006. It uses a plastic tank and aluminum core construction in a 1-row, down-flow configuration, matching the OE-style layout called out in the product data. The inlet and outlet locations, core dimensions, and integrated oil cooler details are specified to support proper replacement selection for the Toyota Tundra cooling system.
This part cross-references Spectra Premium CU2320 and APDI 8012320 for the same application. For buyers searching Toyota Tundra radiator replacement, 2000-2006 Toyota Tundra cooling system parts, or CSF 2830 OE-style radiator fitment, this unit provides the listed factory-style configuration.
Common Cooling System Issues Addressed
- Cracked or leaking radiator tanks
- Corrosion or damage in the aluminum core
- Restricted coolant flow from an aging radiator
- Improper fit from a non-OE-style replacement
- Cooling system performance loss from worn radiator components
Installation Notes and Tips
Verify inlet and outlet orientation before installation: inlet is 1 5/16 in. on the right and outlet is 1 1/2 in. on the left. This radiator is a down-flow design and does not include a cap; the listed CSF cap number is 4514. Confirm the vehicle uses the OE-style plastic tank and aluminum core layout before installation on a 2000-2006 Toyota Tundra.
Quality Assurance
CSF states that its factories are ISO/TSO certified and that its radiators are engineered and wind-tunnel tested for cooling performance validation. The brand also notes more than 50 years of radiator production experience and a broad catalog of applications across major vehicle brands.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Toyota | Tundra | 4.0L | V6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2005 | Toyota | Tundra | 4.0L | V6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2004 | Toyota | Tundra | 3.4L | V6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2003 | Toyota | Tundra | 3.4L | V6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2002 | Toyota | Tundra | 3.4L | V6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2001 | Toyota | Tundra | 3.4L | V6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2000 | Toyota | Tundra | 3.4L | V6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
