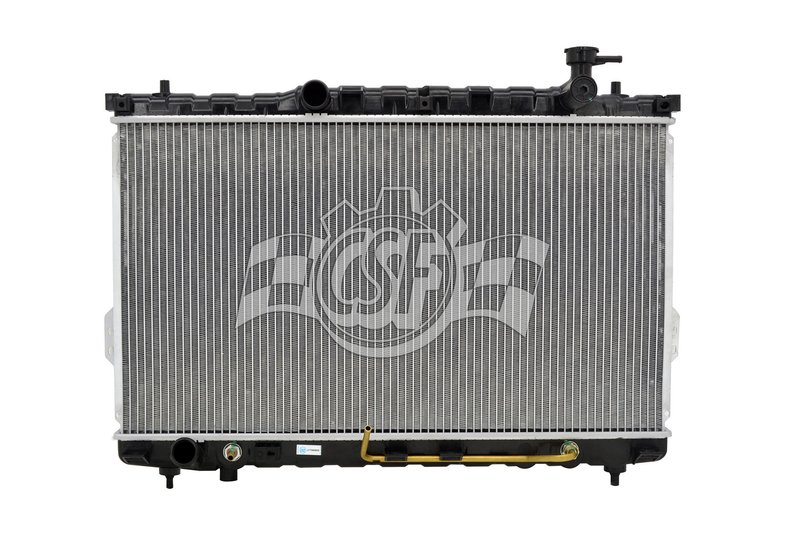

CSF 2924 Radiator
OE Quality 60-Day Returns
CSF

CSF 2924 Radiator

Brand CSF 2924
Box Height (in) 6 5/8
Box Length (in) 31 1/4
Box Weight (lbs) 12
Box Width (in) 23 15/16
Cap Included No
Core Length 15 3/4
Core Material Aluminum
Core Thickness 7/8
Core Width 27 7/8
Csf Cap Number 4503
Down Flow Or Cross Flow Type Down Flow
Hazardous Material No
Inlet Diameter 1 3/8 Left
Inlet Length (in) 28 3/8
Inlet Width (in) 1 11/16
Oil Cooler (in) 17 5/16 (high-effeciency Concentric Type)
Outlet Diameter 1 3/8 Left
Outlet Length (in) 28 3/8
Outlet Width (in) 1 11/16
Radiator Core Row Quantity 1
Tank Material Plastic
Tech Note O.E.M. style Plastic tanks & Aluminum core.
Fits Hyundai · 12 vehicles

OE-style construction. Plastic tanks and an aluminum core mirror the original design.

Wind tunnel tested. Validated for cooling performance in lab testing.

1-row design. A single-row core helps keep the radiator compact.

Cross-references Anchor 2389, APDI 8012389 and Gates 2390 for the same application. See all 8.

$128.21Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $128.21
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

OE-Style Cooling for Hyundai Santa Fe

This CSF radiator is built for 2001-2006 Hyundai Santa Fe applications with an OE-style plastic tank and aluminum core design. Part number 2924 is engineered for direct-fit cooling system service where consistent heat transfer and factory-style packaging matter.

Key Features

  • Fits 2001-2006 Hyundai Santa Fe, N/A
  • 1-row radiator design with a 7/8 in. core thickness
  • Aluminum core with plastic tanks for OE-style construction
  • Down-flow configuration
  • 1 3/8 in. left inlet and 1 3/8 in. left outlet
  • Integrated high-efficiency concentric oil cooler section
  • CSF part number 2924

Product Details

CSF 2924 is a radiator built to match the OE-style layout used on 2001-2006 Hyundai Santa Fe models. The aluminum core supports efficient heat dissipation, while the plastic tank construction follows the factory-style format noted in the product data. With a down-flow design and left-side inlet and outlet dimensions, this radiator is specified for the Santa Fe cooling system layout and is intended for direct replacement service. CSF part number 2924 is part of the brand’s broad radiator catalog, developed from long-running manufacturing experience and validated through performance-focused testing methods.

This part cross-references Spectra Premium CU2389 for the same application.

Common Cooling System Issues Addressed

  • Leaking radiator tanks or core seams
  • Restricted coolant flow from an aging radiator
  • Overheating caused by reduced heat transfer
  • Corrosion or internal wear in the original radiator
  • Cooling performance loss in a high-mileage Hyundai Santa Fe

Installation Notes and Tips

Verify inlet and outlet orientation, core dimensions, and oil cooler routing before installation. Confirm the vehicle uses the OE-style plastic tank and aluminum core layout listed for 2001-2006 Hyundai Santa Fe models. Inspect hoses, clamps, and coolant condition during replacement, and follow the vehicle service procedure for proper refill and bleeding.

Quality Assurance

CSF manufactures radiators to high-performance standards and validates designs through laboratory testing for cooling performance. The brand has supplied radiators worldwide for decades and offers a broad catalog covering many vehicle applications, including this CSF 2924 radiator for Hyundai Santa Fe service.

Related reading

This part fits 12 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2006HyundaiSanta Fe2.7LV6N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2006HyundaiSanta Fe2.4LL4N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2005HyundaiSanta Fe2.7LV6N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2005HyundaiSanta Fe2.4LL4N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2004HyundaiSanta Fe2.7LV6N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2004HyundaiSanta Fe2.4LL4N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2003HyundaiSanta Fe2.7LV6N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2003HyundaiSanta Fe2.4LL4N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2002HyundaiSanta Fe2.7LV6N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2002HyundaiSanta Fe2.4LL4N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2001HyundaiSanta Fe2.7LV6N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2001HyundaiSanta Fe2.4LL4N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
Directly replaces or cross-references 8 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 2389APDI — 8012389Gates — 2390Spectra Premium — CU238925310 - 2600025310 - 26070HY3010119HY3010120
