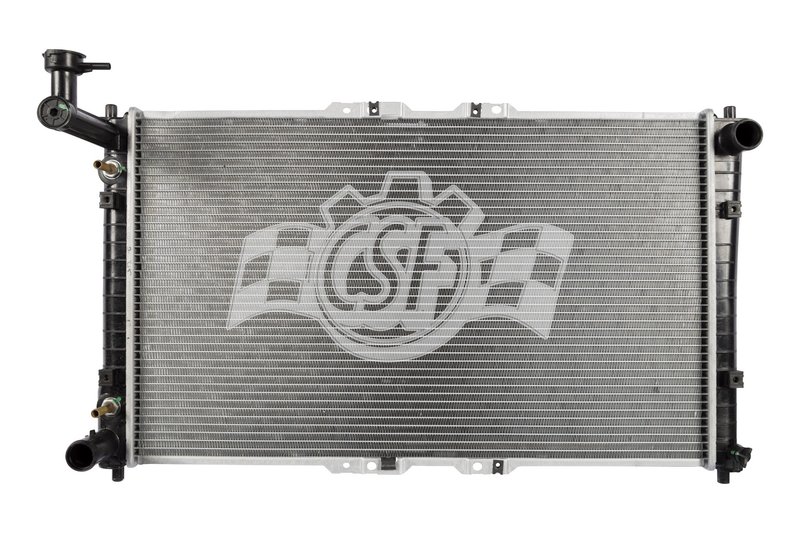

CSF 2934 Radiator
| Brand | CSF 2934 |
|---|---|
| Core Thickness | 1 1/4 |
| Core Width | 16 7/16 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 27 11/16 |
| Inlet Diameter | 1 7/16 right |
| Outlet Diameter | 1 3/8 left |
| Down Flow Or Cross Flow Type | Cross flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 9 7/16 |
| Box Length (in) | 34 |
| Box Weight (lbs) | 13 |
| Box Width (in) | 21 9/16 |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 17 3/16 |
| Inlet Width (in) | 1 15/16 |
| Oil Cooler (in) | 11 1/2 (high-effeciency concentric type) |
| Outlet Length (in) | 17 3/16 |
| Outlet Width (in) | 1 15/16 |
| Tech Note | O.e.m. style plastic tanks & aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Kia · 4 vehicles |
OE-style construction. Plastic tanks and aluminum core match a familiar factory-style design.
Cross-flow design. Engineered for efficient cooling performance.
Wind tunnel tested. Validated in lab for cooling performance.
Cross-references Anchor 2442, APDI 8012442 and Spectra Premium CU2442 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
CSF 2934 Radiator for Kia Sedona
CSF 2934 is an OE-style radiator built with a plastic tank and aluminum core for 2002-2005 Kia Sedona applications. It is a cross flow design with a 1-row core, made for direct replacement service on the Kia Sedona cooling system.
Key Features
- Fits 2002-2005 Kia Sedona, N/A
- 1-row cross flow radiator design
- Plastic tank and aluminum core construction
- Core thickness: 1 1/4 in.
- Inlet diameter: 1 7/16 in. right side
- Outlet diameter: 1 3/8 in. left side
- Oil cooler: 11 1/2 in. high-efficiency concentric type
- OE-style plastic tanks and aluminum core
Product Details
This CSF radiator, part number 2934, is engineered for the 2002-2005 Kia Sedona and follows an OEM-style layout for straightforward replacement. CSF manufactures radiators to performance-focused standards and validates cooling performance through laboratory wind tunnel testing. The core measures 27 11/16 in. long by 16 7/16 in. wide, with a 1 1/4 in. thickness, and the unit uses a cross flow configuration with right-side inlet and left-side outlet placement. CSF 2934 is also referenced by part number CU2442 in cross-reference listings.
What This Radiator Helps Address
- Overheating caused by a restricted or leaking radiator
- Coolant loss from cracked plastic tanks or aged seams
- Reduced heat transfer from a worn aluminum core
- Poor cooling performance in a high-mileage Kia Sedona
- Replacement needs after corrosion or internal blockage
Installation Notes and Tips
Verify inlet and outlet orientation before installation: this radiator uses a right-side inlet and left-side outlet. Confirm core dimensions, hose routing, and the OE-style mounting layout against the original unit on your Kia Sedona before removal. The radiator does not include a cap, and the listed CSF cap number is 4503 if a matching cap is needed separately.
Quality Assurance
CSF has produced radiators for more than 50 years and supplies a wide range of applications worldwide. The brand states that its factories are ISO/TSO certified and that its radiator designs are tested for cooling performance validation.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Kia | Sedona | 3.5L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2004 | Kia | Sedona | 3.5L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2003 | Kia | Sedona | 3.5L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2002 | Kia | Sedona | 3.5L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
