OE Quality
60-Day Returns

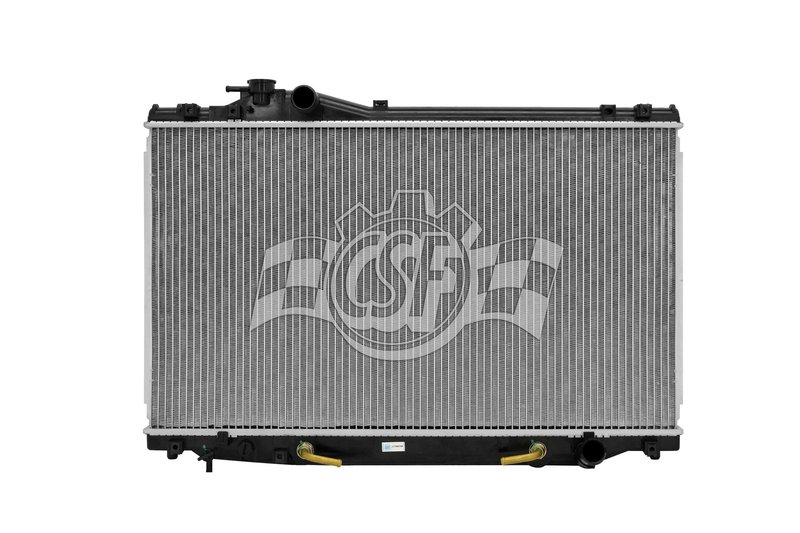

CSF 2936 Radiator
Overview of CSF 2936 Radiator for Lexus SC300
The CSF 2936 radiator is designed specifically for the Lexus SC300, providing reliable engine cooling with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for down flow cooling systems.
- Core Thickness: 7/8 inch
- Core Width: 29 1/16 inches
- Core Length: 16 3/4 inches
- Core Material: Aluminum
- Tank Material: Plastic
- Inlet Diameter: 1 3/8 inches (left side)
- Outlet Diameter: 1 3/8 inches (right side)
- Down flow radiator type
- Single core row design
- Includes high-efficiency concentric oil cooler (12 13/16 inches)
About the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to deliver effective heat dissipation and corrosion resistance. This product line is engineered to meet the cooling demands of vehicles like the Lexus SC300, ensuring compatibility and performance with down flow radiator systems.
Detailed Product Description
The CSF 2936 radiator features a 7/8 inch thick aluminum core that measures 29 1/16 inches wide and 16 3/4 inches long, providing efficient heat exchange for the Lexus SC300. The plastic tanks are designed to withstand thermal cycling and pressure while maintaining a lightweight profile. The radiator’s inlet and outlet diameters are both 1 3/8 inches, positioned on the left and right sides respectively, supporting proper coolant flow. This down flow radiator includes a high-efficiency concentric oil cooler measuring 12 13/16 inches, which helps maintain optimal engine oil temperatures under demanding conditions.
Common Applications and Issues Addressed
- Replacement for leaking or cracked radiators in Lexus SC300 vehicles
- Solves overheating problems caused by inefficient cooling cores
- Addresses coolant flow restrictions due to damaged inlet or outlet tanks
- Restores proper engine oil cooling with integrated oil cooler
- Prevents engine damage from thermal stress and coolant loss
Installation Notes and Tips
- Compatible with Lexus SC300 models requiring a down flow radiator
- Ensure proper alignment of inlet and outlet hoses to 1 3/8 inch fittings
- Check for secure mounting points to avoid vibration damage
- Bleed the cooling system thoroughly after installation to remove air pockets
- Use the CSF cap number 4513 if a radiator cap replacement is needed (cap not included)
Quality Assurance and Warranty
The CSF 2936 radiator is manufactured to meet OEM specifications with a focus on durability and performance. It is constructed without hazardous materials and undergoes quality control to ensure reliability. Warranty details should be confirmed with the distributor or manufacturer, as they may vary.
| Brand | CSF |
| Part Number | 2936 |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 32 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 23 3/8 |
| Cap Included | No |
| Core Length | 16 3/4 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 29 1/16 |
| Csf Cap Number | 4513 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Left |
| Inlet Length (in) | 29 1/2 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 12 13/16 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 3/8 Right |
| Outlet Length (in) | 29 1/2 |
| Outlet Width (in) | 1 7/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2000 | Lexus | SC300 | 3.0L | L6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1999 | Lexus | SC300 | 3.0L | L6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1998 | Lexus | SC300 | 3.0L | L6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1997 | Lexus | SC300 | 3.0L | L6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1996 | Lexus | SC300 | 3.0L | L6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1995 | Lexus | SC300 | 3.0L | L6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1994 | Lexus | SC300 | 3.0L | L6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1993 | Lexus | SC300 | 3.0L | L6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1992 | Lexus | SC300 | 3.0L | L6 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
