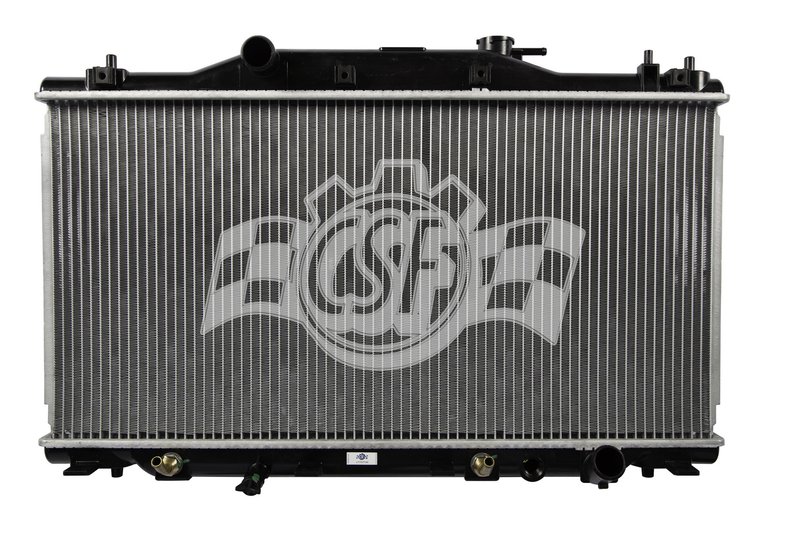

CSF 2965 Radiator
Overview of CSF 2965 Radiator for Acura RSX
The CSF 2965 radiator is designed specifically for the Acura RSX, providing reliable engine cooling with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in a down flow configuration.
- Core thickness: 5/8 inch
- Core width: 27 1/2 inches
- Core length: 13 3/4 inches
- Aluminum core with plastic tanks
- Inlet and outlet diameter: 1 5/16 inches (left inlet, right outlet)
- Down flow radiator type
- One core row design
- Cap not included (CSF cap number 4514 compatible)
- Oil cooler included: 12 13/16 inches high-efficiency concentric type
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to balance durability and weight. This product line is engineered to meet the cooling demands of vehicles like the Acura RSX, offering a single-row core that supports effective heat transfer while maintaining a compact form factor.
Technical Description of the CSF 2965 Radiator
This radiator features a 5/8 inch thick aluminum core measuring 27 1/2 inches wide and 13 3/4 inches long, designed for down flow coolant movement. The plastic tanks reduce weight and resist corrosion, while the 1 5/16 inch inlet and outlet diameters ensure proper coolant flow. The integrated high-efficiency concentric oil cooler enhances engine cooling performance. The radiator is designed without a cap but is compatible with CSF cap number 4514. Its dimensions and weight (approximately 9 lbs) make it suitable for direct replacement in the Acura RSX cooling system.
Common Applications and Issues Addressed
- Replacement for leaking or damaged Acura RSX radiators
- Resolves overheating caused by inefficient cooling cores
- Addresses coolant flow restrictions due to clogged or corroded tanks
- Improves engine temperature regulation with integrated oil cooler
- Suitable for restoring OEM cooling system performance
Installation Notes and Tips
Ensure compatibility with Acura RSX models before installation. The radiator is designed for down flow coolant systems and requires connection to 1 5/16 inch inlet and outlet hoses on the left and right sides respectively. Since the cap is not included, use a compatible CSF cap number 4514. Verify all hose connections and mounting points align with the vehicle’s factory specifications for a secure fit.
Quality Assurance and Warranty
The CSF 2965 radiator is manufactured to meet OEM standards, featuring corrosion-resistant plastic tanks and a durable aluminum core. This product is free of hazardous materials and designed for long-term reliability. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
| Brand | CSF |
| Part Number | 2965 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 30 1/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 20 9/16 |
| Cap Included | No |
| Core Length | 13 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 27 1/2 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 5/16 Left |
| Inlet Length (in) | 28 |
| Inlet Width (in) | 1 11/16 |
| Oil Cooler (in) | 12 13/16 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 5/16 Right |
| Outlet Length (in) | 28 |
| Outlet Width (in) | 1 11/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Acura | RSX | 2.0L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2005 | Acura | RSX | 2.0L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2004 | Acura | RSX | 2.0L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2003 | Acura | RSX | 2.0L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2002 | Acura | RSX | 2.0L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
