OE Quality
60-Day Returns

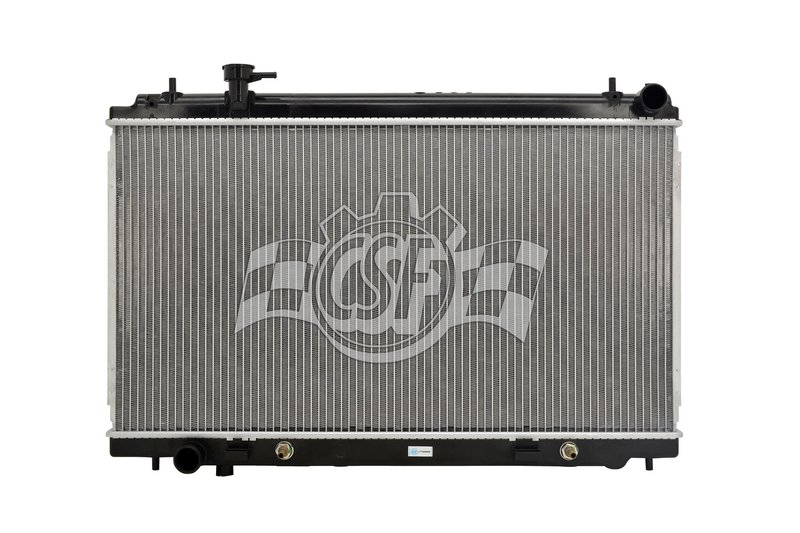

CSF 2997 Radiator
Overview of CSF 2997 Radiator for Nissan 350Z
The CSF 2997 radiator is designed specifically for Nissan 350Z models, providing reliable engine cooling with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in a down flow configuration.
- Core thickness: 5/8 inch
- Core width: 29 1/16 inches
- Core length: 15 13/16 inches
- Aluminum core with plastic tanks
- Inlet diameter: 1 7/16 inches (right side)
- Outlet diameter: 1 3/8 inches (left side)
- Down flow radiator type
- Single core row design
- Includes high-efficiency concentric oil cooler (14 3/4 inches)
- Cap not included (compatible with CSF cap number 4502)
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core product line combines OEM-style plastic tanks with a robust aluminum core to balance durability and weight. This design supports effective cooling performance while maintaining compatibility with factory mounting points and connections. The single-row core thickness of 5/8 inch ensures adequate heat exchange for Nissan 350Z engines under normal operating conditions.
Technical Description of CSF Part Number 2997
This radiator features a down flow design, directing coolant from the top to the bottom of the core, which is beneficial for certain engine layouts like the Nissan 350Z. The aluminum core measures 29 1/16 inches wide by 15 13/16 inches long, with a thickness of 5/8 inch, providing a balance between cooling capacity and compact size. Plastic tanks reduce weight and resist corrosion, while the inlet and outlet diameters (1 7/16 inches right inlet, 1 3/8 inches left outlet) match OEM specifications for straightforward installation. The integrated high-efficiency concentric oil cooler (14 3/4 inches) supports additional engine cooling needs.
Common Applications and Problem Solving
- Replacement for leaking or damaged Nissan 350Z radiators
- Resolving engine overheating issues due to radiator core failure
- Upgrading cooling system components to maintain factory performance
- Addressing coolant flow restrictions from clogged or corroded cores
- Supporting engine oil temperature control with integrated oil cooler
Installation Notes and Tips
When installing the CSF 2997 radiator, ensure compatibility with Nissan 350Z mounting points and hose connections. The radiator does not include a cap; use the CSF cap number 4502 or an OEM equivalent. Verify inlet and outlet hose diameters (1 7/16 inches right inlet, 1 3/8 inches left outlet) for proper fitment. Bleed the cooling system thoroughly after installation to prevent air pockets. Handle plastic tanks carefully to avoid damage during installation.
Quality Assurance and Warranty Information
CSF radiators are manufactured to meet OEM specifications, using corrosion-resistant aluminum cores and durable plastic tanks. This part is free of hazardous materials and designed for long-term reliability in Nissan 350Z vehicles. While specific warranty details are not provided here, CSF products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
| Brand | CSF |
| Part Number | 2997 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 1/2 |
| Box Length (in) | 31 5/8 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 22 15/16 |
| Cap Included | No |
| Core Length | 15 13/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 29 1/16 |
| Csf Cap Number | 4502 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 7/16 Right |
| Inlet Length (in) | 29 1/2 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 3/8 Left |
| Outlet Length (in) | 29 1/2 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Nissan | 350Z | 3.5L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2005 | Nissan | 350Z | 3.5L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2004 | Nissan | 350Z | 3.5L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2003 | Nissan | 350Z | 3.5L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
