Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

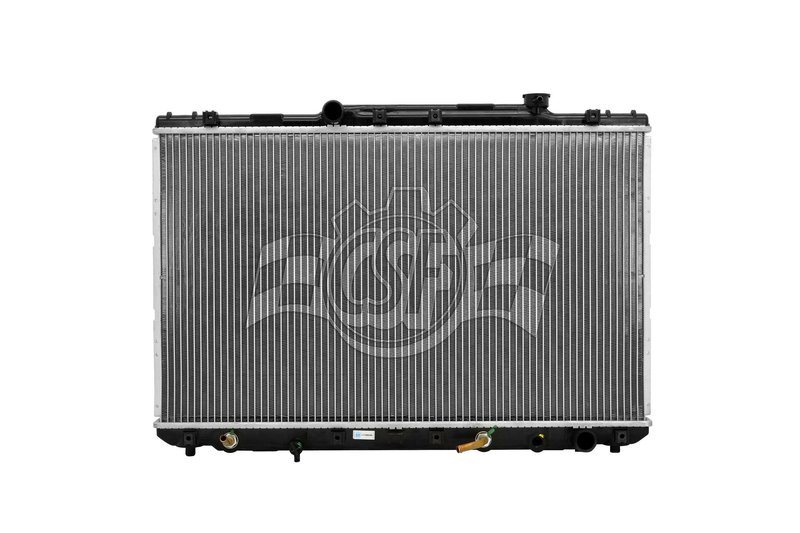

CSF 3087 Radiator
| Brand | CSF 3087 |
|---|---|
| Box Height (in) | 5 1/16 |
| Box Length (in) | 30 7/8 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 22 3/4 |
| Cap Included | No |
| Core Length | 16 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 28 1/4 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Left |
| Inlet Length (in) | 28 11/16 |
| Inlet Width (in) | 1 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/4 Right |
| Outlet Length (in) | 28 11/16 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Toyota · 5 vehicles |
OE-style construction. Plastic tanks and an aluminum core mirror original equipment design.
Wind tunnel tested. Validated for cooling performance in lab testing.
1-row design. A compact radiator layout for efficient heat transfer.
Cross-references APDI 8011318, DENSO Auto Parts 221-3131 and OSC 1318 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style Cooling Replacement for Camry
The CSF 3087 radiator is an OE-style replacement built with a plastic tank and aluminum core design for 1992-1996 Toyota Camry applications. It is engineered for down-flow cooling performance and matches the factory-style layout for straightforward service on the Toyota Camry cooling system.
CSF has produced radiators for global vehicle coverage for decades, with manufacturing standards supported by ISO/TSO-certified factories and lab validation focused on cooling performance. The CSF 3087 is part of the 1 Row Plastic Tank Aluminum Core line, built for direct-fit radiator replacement needs.
Key Features
- Fits 1992-1996 Toyota Camry, N/A
- OE-style plastic tank and aluminum core construction
- 1-row core design for factory-style cooling layout
- Down-flow radiator configuration
- Core thickness: 5/8 in.
- Inlet diameter: 1 1/4 in. left
- Outlet diameter: 1 1/4 in. right
- Oil cooler: 14 3/4 in. high-efficiency concentric type
- CSF part number 3087
Detailed Description
Designed for the 1992-1996 Toyota Camry, the CSF 3087 radiator follows an OE-style plastic tank and aluminum core layout to match the factory cooling system architecture. The radiator uses a down-flow design with a 1-row core, 28 1/4 in. core width, and 16 3/4 in. core length, helping maintain the original fit and routing expected in this application. The inlet and outlet are positioned for the specified Camry fitment, and the integrated high-efficiency concentric oil cooler adds factory-style functionality where equipped. If you are replacing a worn or leaking Toyota Camry radiator, CSF 3087 provides a direct replacement format for 1992-1996 Toyota Camry cooling system service.
This part cross-references Spectra Premium CU1318 for the same application.
Common Problems This Radiator Can Address
- Coolant leaks from cracked or aged plastic tanks
- Reduced cooling performance from a clogged or corroded core
- Overheating caused by internal radiator restriction
- Transmission or oil cooler-related heat management concerns in equipped vehicles
- Fitment issues from damaged or non-OE-style replacement radiators
Installation Notes and Tips
Verify inlet and outlet orientation before installation, especially on the 1992-1996 Toyota Camry, where the radiator uses a left inlet and right outlet layout. Inspect hoses, clamps, and the radiator cap specification during replacement, and confirm the cooling system is fully flushed before refilling. The product notes specify an OE-style design with plastic tanks and aluminum core construction; cap is not included.
Quality Assurance
CSF manufactures radiators in ISO/TSO-certified facilities and validates cooling performance through laboratory wind tunnel testing. The brand has supplied radiators worldwide for more than 50 years and offers broad coverage across thousands of radiator models, including the CSF 3087 for Toyota Camry applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1996 | Toyota | Camry | 2.2L | L4 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1995 | Toyota | Camry | 2.2L | L4 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1994 | Toyota | Camry | 2.2L | L4 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1993 | Toyota | Camry | 2.2L | L4 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1992 | Toyota | Camry | 2.2L | L4 | N/A | OE Style Design; Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| No rows match your filter. | ||||||
